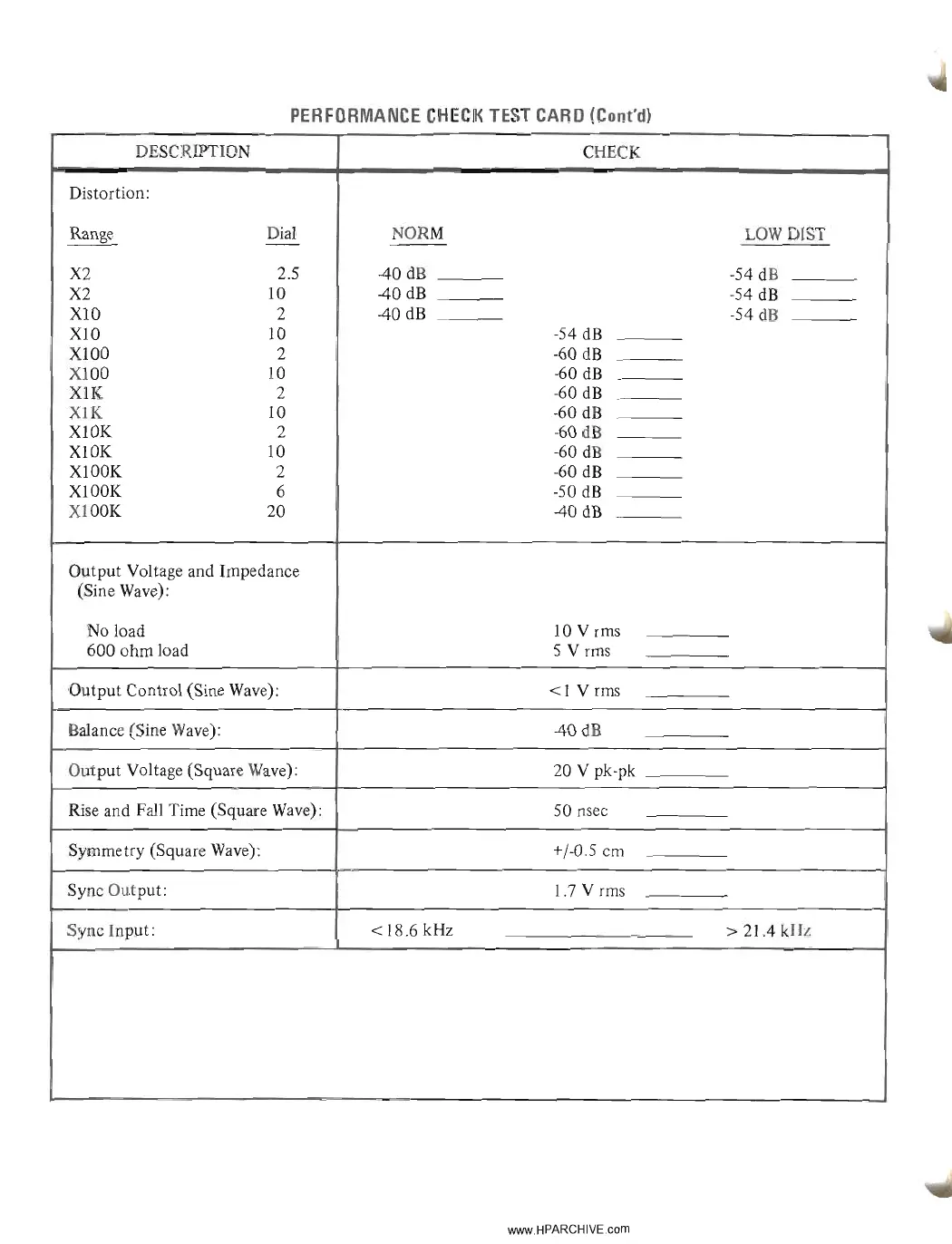

PERFORMANCE CHECK TEST CARO (Cont'd)
DESCRIPTION
CHECK
Distortion:
Range
Dial NORM
LOWDIST
--
X2
2.5 -40 dB
-54 dB
X2 10
-40 dB
-54 dB
XlO 2 -40 dB
-54 dB
XlO
10 -54 dB
X100 2 -60 dB
XI00
10 -60 dB
XIK 2 -60 dB
XIK 10 -60 dB
X10K 2 -60 dB
XI0K
10 -60 dB
XIOOK 2 -60 dB
XI00K
6 -50 dB
XI00K
20 -40 dB
Output Voltage and Impedance
(Sine Wave):
No load
10 Vrms
600 ohm load
5 Vrms
Output Control (Sine Wave):
<1 V rrns
Balance (Sine Wave):
-40 dB
Output Voltage (Square Wave):
20 V pk-pk
Rise and Fall Time (Square Wave):
50 nsec
Symmetry (Square Wave):
+/-0.5 cm
Sync Output:
1.7 V rms
Sync Input:
< 18.6 kHz
> 21.4 kHz
