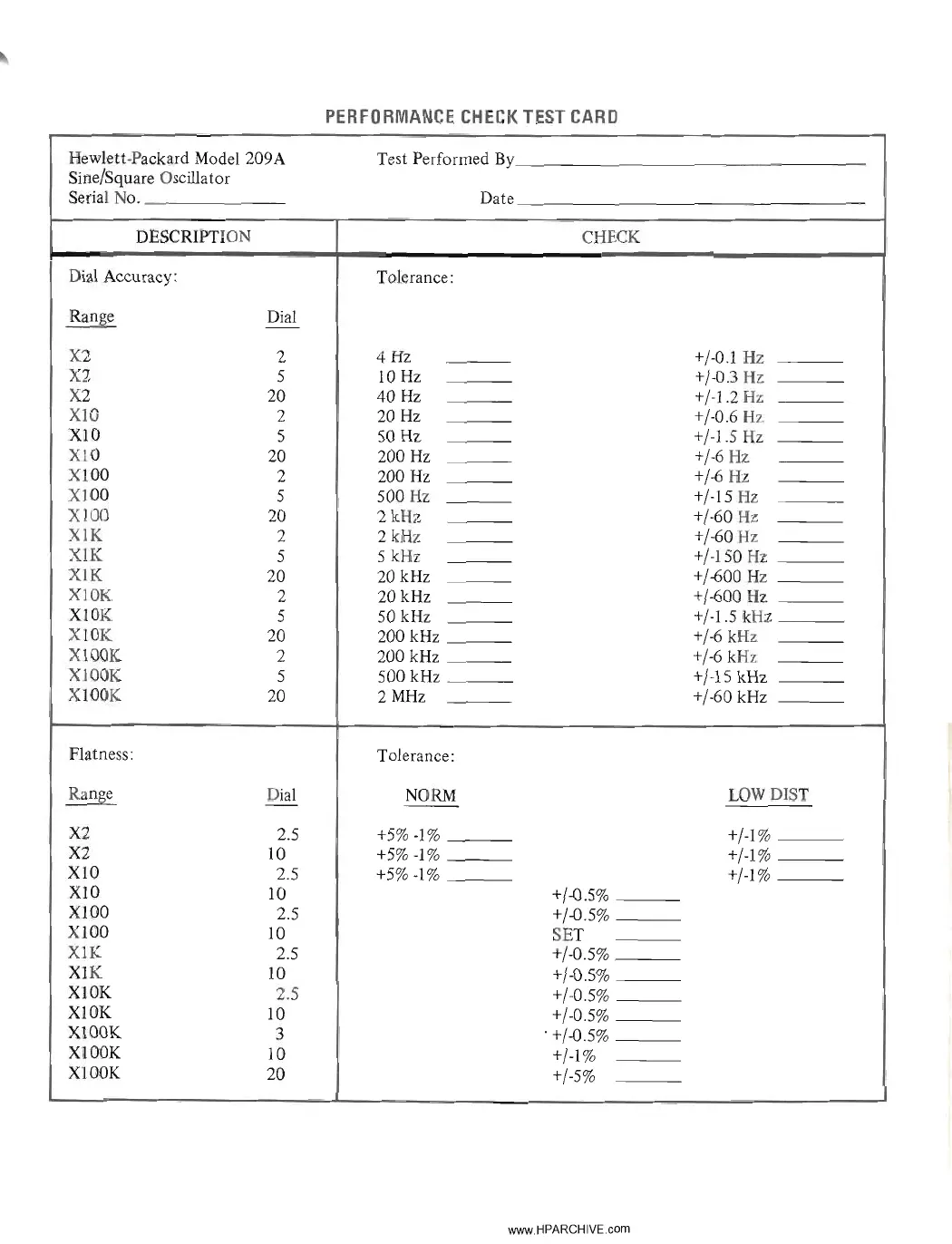

HP 209A - Page 26

PERFORMANCE CHECK TEST CARD
Hewlett-Packard Model 209A Test Performed By
Sine/Square Oscillator
Serial No.
Date
DESCRIPTION CHECK
Dial Accuracy: Tolerance:
Range
Dial
-
X2
2
4Hz
+/-0.1 Hz
X2
5 10 Hz
+/-0.3 Hz
X2
20
40Hz +/-1.2 Hz
XIO
2
20Hz
+/-0.6 Hz
XI0
5 50 Hz +/-1.5 Hz
XIO
20
200 Hz +/-6 Hz
XI00
2
200 Hz +/-6
Hz
X100
5
500 Hz
+/-15 Hz
X100
20
2kHz
+/·60 Hz
XIK
2 2kHz +/-60 Hz
XIK
5
5 kHz
+/-150 Hz
XIK
20 20kHz +/-600 Hz
XIOK
2
20kHz
+/-600 Hz
X10K
5
50kHz
+/-1.5 kHz
XIOK
20 200 kHz
+/-6 kHz
X100K
2
200 kHz
+/-6 kHz
X100K
5 500 kHz +/-15 kHz
X
lOOK
20 2 MHz +/-60 kHz
Flatness:
Tolerance:
Range
Dial
NORM
LOWDIST
- --
X2
2.5
+5%
-1%
+/-1%
X2
10
+5%
-1% +/-1%
XIO
2.5
+5%
-1%
+/-1%
XIO
10
+/-0.5%
X100
2.5
+/-0.5%
XIOO
10
SET
XIK
2.5 +/-0.5%
XIK
10
+/-0.5%
XIOK
2.5
+/-0.5%
XIOK
10
+/-0.5%
X100K
3
. +/-0.5%
X100K
10
+/-1%
X100K
20
+/-5%
