Mode1209A

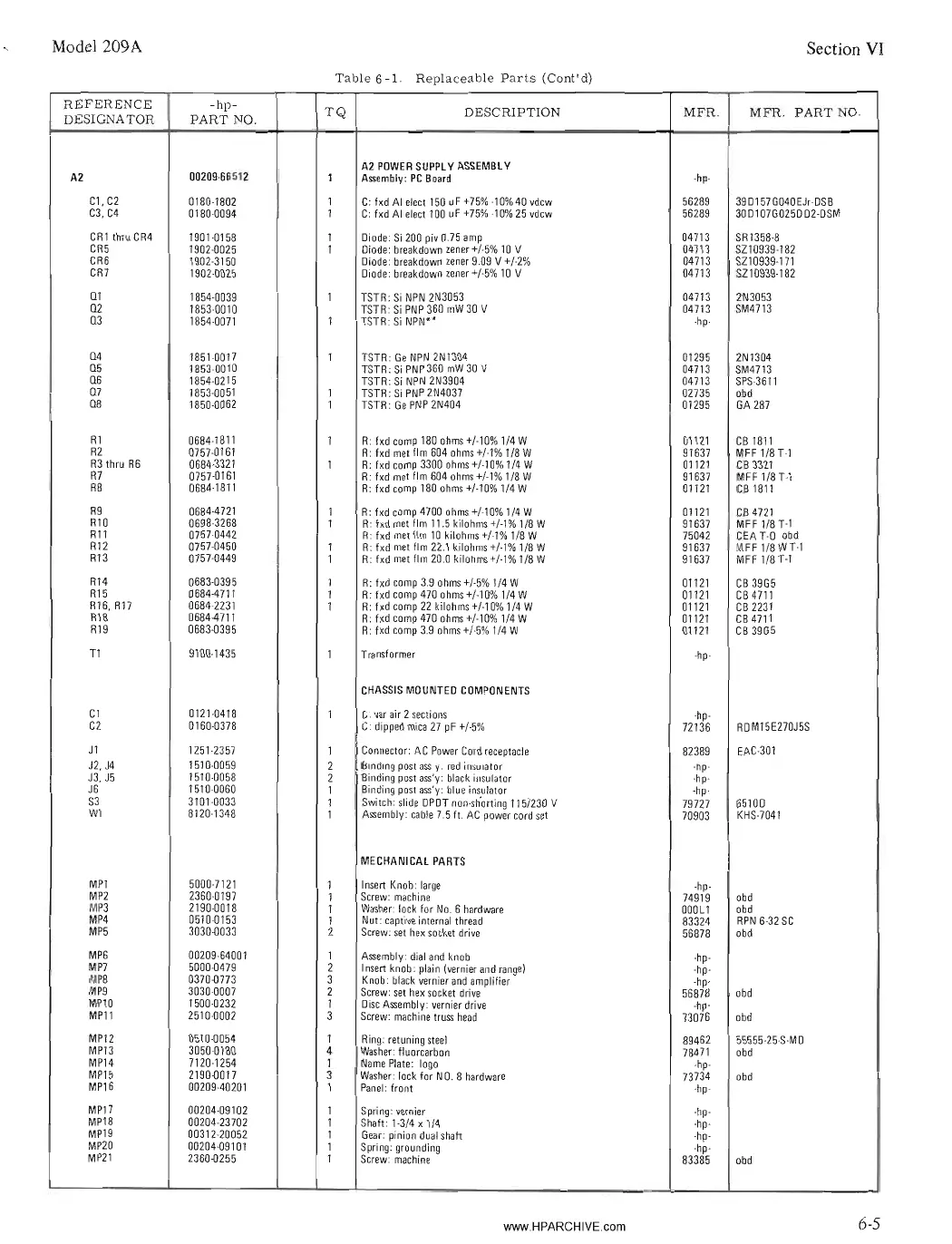

Table 6-1. Replaceable Parts (Cont'd)
Section VI
REFERENCE
-hp-
TQ
DESCRIPTION MFR. MFR.
PART NO.
DESIGNATOR
PART NO.
A2 POWER SUPPL Y ASSEMBL Y
A2
00209·66512
1 Assembly: PC Board
·hp·
Cl, C2
0180·1802 1 C: fxd AI elect 150 uF +75%·10%40 vdcw
56289 39D157G040EJr·DS8
C3, C4
0180·0094 1
C: fxd AI elect 100 uF +75% ·10% 25 vdcw
56289
30Dl07G025DD2·DSM
CR1 thru CR4
1901·0158 1 Diode: Si 200 piv 0.75 amp
04713 SR1358·8
CR5 1902.()025
1 Diode: breakdown zener +1·5% 10 V 04713 SZ10939·182
CR6
1902·3150 Diode: breakdown zener 9.09 V +1·2%
04713 SZ10939·171
CR7
1902·0025
Diode: breakdown zener +1·5% 10 V 04713 SZ10939·182
Q1
1854·0039 1
TSTR: Si NPN 2N3053
04713
2N3053
Q2
1853·0010 TSTR: Si PNP 360 mW 30 V
04713
SM4713
Q3
1854·0071
1 TSTR: Si NPN**
·hp·
Q4
1851.()O17
1
TSTR: Ge NPN 2N1304
01295
2N1304
Q5
1853·0010
TSTR: Si PNP360 mW 30 V
04713 SM4713
Q6
1854'()215
TSTR: Si NPN 2N3904
04713
SPS-3611
Q7
1853·0051 1 TSTR: Si PNP 2N4037
02735 obd
Q8
1850-0062
1
TSTR: Ge PNP 2N404
01295 GA 287
R1
0684·1811
1 R: fxd comp 180 ohms +1·10% 1/4 W
01121
C81811
R2 0757.()161
R: fxd met tim 604 ohms +1-1% 1/8 W
91637 MFF 1/8 T·1
R3 thru R6 0684-3321
1 R: fxd comp 3300 ohms+I·10% 1/4 W
01121
. C8 3321
R7
0757.()161
R: fxd met flm 604 ohms +1-1% 1/8 W
91637
MFF 1/8 T-1
R8
0684·1811
R: fxd comp 180 ohms +1-10% 1/4 W
01121 C81811
R9 0684-4721
1
R: fxd comp 4700 ohms +1-10% 1/4 W
01121 CB 4721
RIO
0698·3268
1 R: fxd met flm 11.5 kilohms +1·1% 1/8 W
91637 MFF 1/8 T-1
Rl1
0757·0442
R: fxd met flm 10 kilohms +1-1 % 1/8 W
75042 CEA T·D obd
R12
0757.()450
1
R: fxd met flm 22.1 kilohms +1-1% 1/8 W
91637 MFF 1/8 WT-l
R13
0757.()449
1 R: fxd met tim 20.0 kilohms +1·1% 1/8 W
91637 MFF 1/8 T-1
R14 0683.()395
1 R: fxd comp 3.9 ohms +1-5% 1/4 W
01121 C8 39G5
R15
>
0684-4711
1
R: fxd comp 470 ohms +1-1 0% 1/4 W
01121 C84711
R16, R17
0684·2231
1 R: fxd comp 22 kilohms +1·1 0% 1/4 W
01121 CB 2231
R18
0684-4711
R: fxd comp 470 ohms +1-10% 1/4 W
01121 C84711
R19
0683.()395
R: fxd comp 3.9 ohms +1·5% 1/4 W
01121 CB 39G5
T1
9100·1435
1 Transformer
-hp-
CHASSIS MOUNTEO COMPONENTS
C1 0121.()418
1 C: var air 2 sections
·hp·
C2 0160.()378
C: dipped mica 27 pF +1-5%
72136 ROM15E270J5S
J1
1251-2357 1
Connector: AC Power Cord receptacle
82389
EAC-301
J2, J4 1510-0059
2 Bmdlng post ass y: red inSUlator
·np·
J3, J5
1510·0058
2 8inding post ass'y: black insulator
-hp·
J6
1510·0060
1 Binding post ass'y: blue insulator
·hp·
S3 3101.()033
1
Switch: sl'de OPDT non .. honing 1157230 V
79727 65100
W1
8120·1348
1
Assembly: cable 7.5 ft. AC power cord set
70903 KHS·7041
MECHANICAL PARTS
MP1
5000-7121
1 Insen Knob: large
·hp-
MP2
2360·0197
1
Screw: machine
74919 obd
MP3
2190-0018
1
Washer: lock for No.6 hardware
000L1 obd
MP4
0510-0153
1
Nut: captive internal thread
83324
RPN 6-32 SC
MP5 3030.()033
2 Screw: set hex socket drive
56878 obd
MP6
00209-64001
1 Assembly: dial and knob
·hp·
MP7
5000.()479
2
Insen knob: plain (vernier and rangel
-hp-
MP8 0370.()773
3
Knob: black vernier and amplifier
-hp-
MPS
3030-0007
2
Screw: set hex socket drive
56878 obd
MP10
1500.()232
1
Disc Assembly: vernier drive
-hp-
MP11
2510.()O02
3
Screw: machine truss head
73076 obd
MP12
0510-0054
1
Ring: retuning steel
89462 55555·25·S-M 0
MP13
3050-0180
4
Washer: tluorcarbon
78471 obd
MP14
7120·1254
1 Name Plate: logo
·hp·
MP15
2190.()O17
3
Washer: lock for NO.8 hardware
73734 obd
MP16
00209·40201
1
Panel: front
·hp·
MP17
00204-09102
1 Spring: vernier
-hp·
MP18
00204·23702
1
Shaft: 1-3/4 x 1/4
-hp·
MP19
00312·20052
1
Gear: pinion dual shaft
-hp-
MP20
00204'()9101
1
Spring: grounding
-hp·
MP21
2360-0255
1 Screw: machine
83385 obd
www.HPARCHIVE.com
6-5
