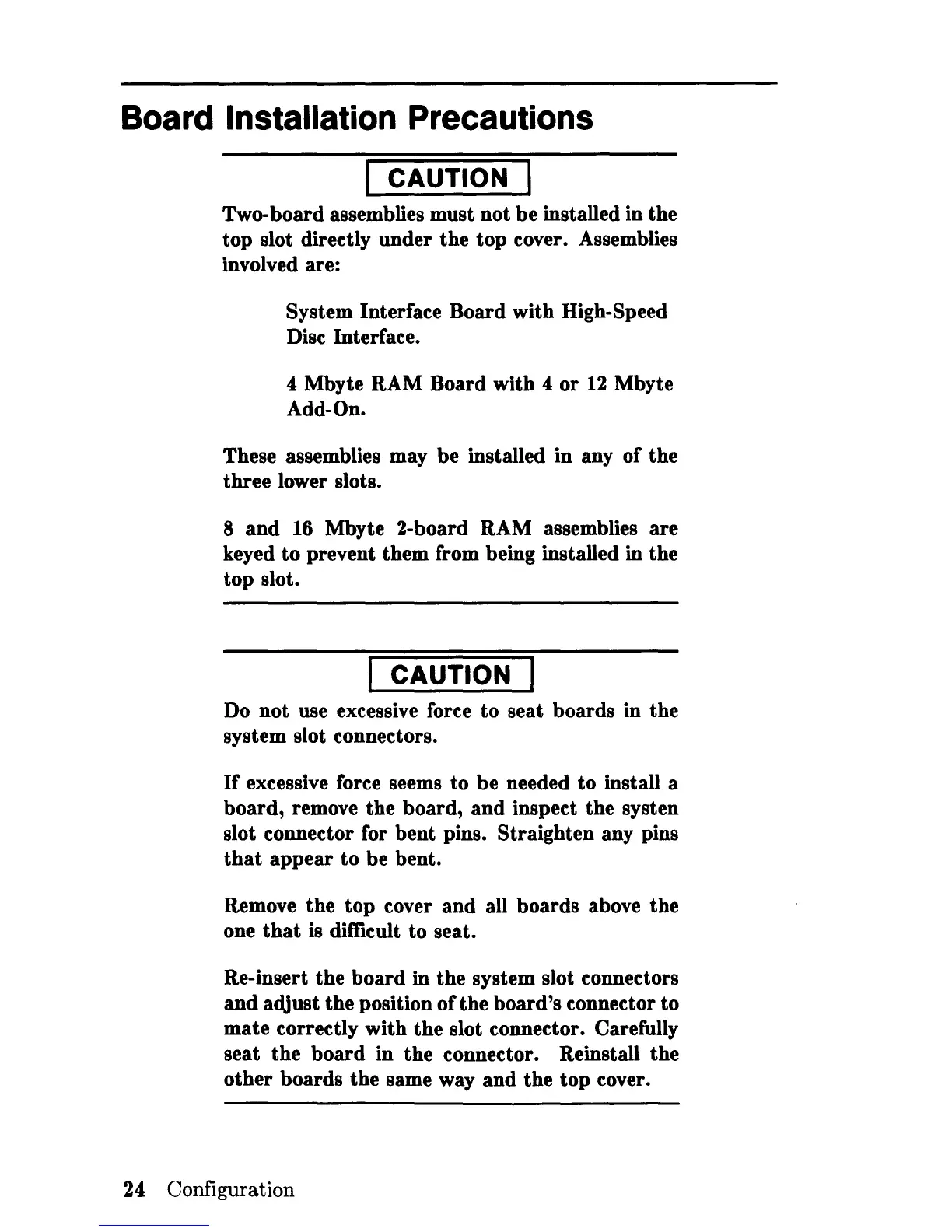

Board
Installation
Precautions
I CAUTION I
Two-board assemblies must not be installed in the
top slot directly under the top cover. Assemblies
involved are:
System Interface Board with High-Speed
Disc Interface.
4:
Mbyte RAM Board with
4:
or
12
Mbyte
Add-On.
These assemblies may be installed in any of the
three lower slots.
8
and
16
Mbyte 2-board RAM assemblies are
keyed
to
prevent them from being installed in the
top slot.
CAUTION
Do not use excessive force to seat boards in the
system slot connectors.
If
excessive force seems to be needed to install a
board, remove the board,
and
inspect the systen
slot connector for bent pins. Straighten any pins
that
appear to be bent.
Remove the
top
cover
and
all boards above the
one
that
is difficult to seat.
Re-insert the board in the system slot connectors
and
adjust the position of the board's connector to
mate
correctly with the slot connector. Carefully
seat the
board
in the connector. Reinstall the
other boards the same way and the top cover.
24 Configuration
