HP

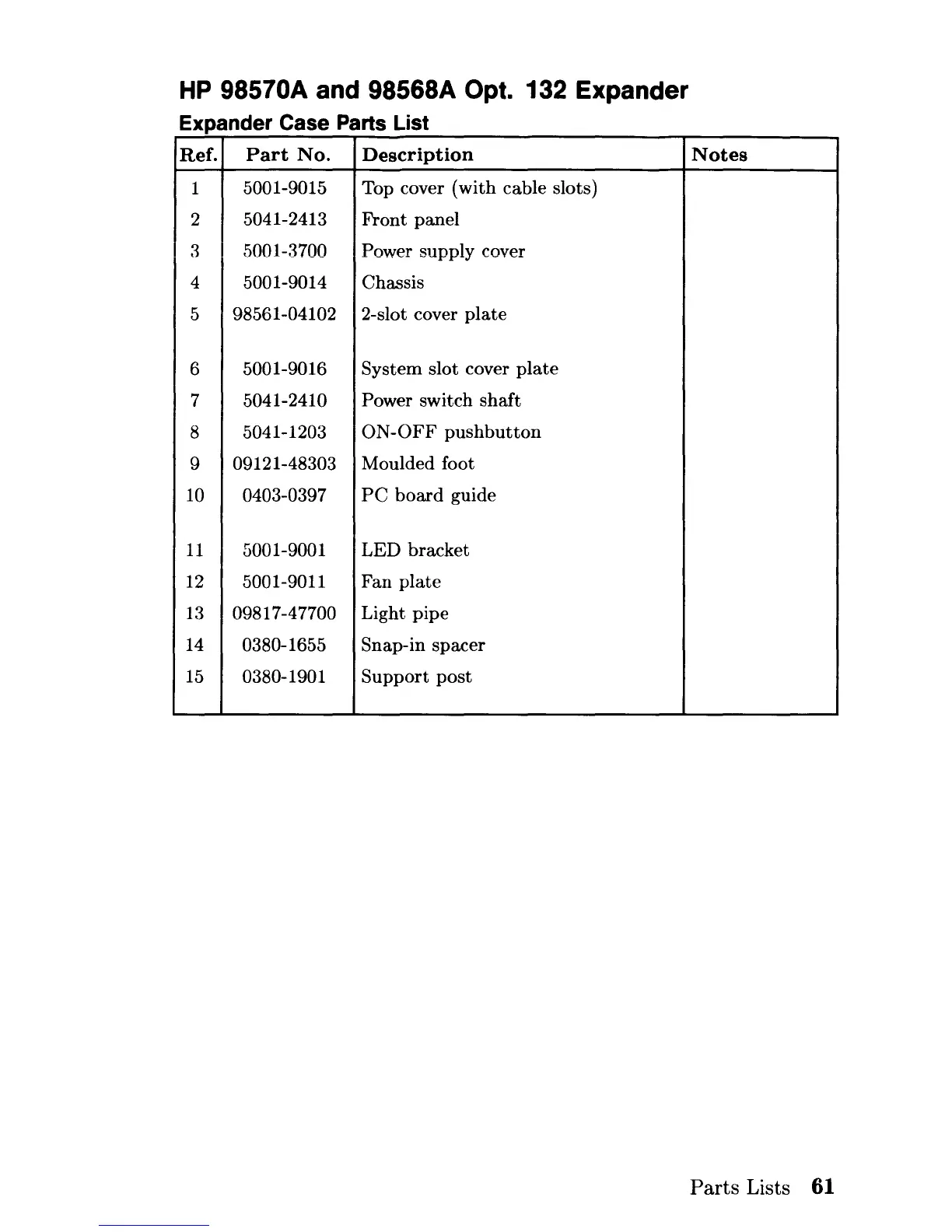

98570A and 98568A Opt. 132 Expander
Expander Case Parts List
Ref.
Part
No.
Description
1
5001-9015 Top cover (with cable slots)
2
5041-2413
Front
panel
3 5001-3700 Power
supply
cover
4
5001-9014 Chassis
5
98561-04102 2-slot cover
plate
6
5001-9016
System
slot cover
plate
7
5041-2410 Power switch
shaft
8
5041-1203
ON-OFF
pushbutton
9
09121-48303 Moulded foot
10
0403-0397
PC
board
guide
11
5001-9001
LED
bracket
12
5001-9011
Fan
plate
13
09817-47700 Light
pipe
14 0380-1655 Snap-in
spacer
15 0380-1901
Support
post
Notes
Parts
Lists 61
