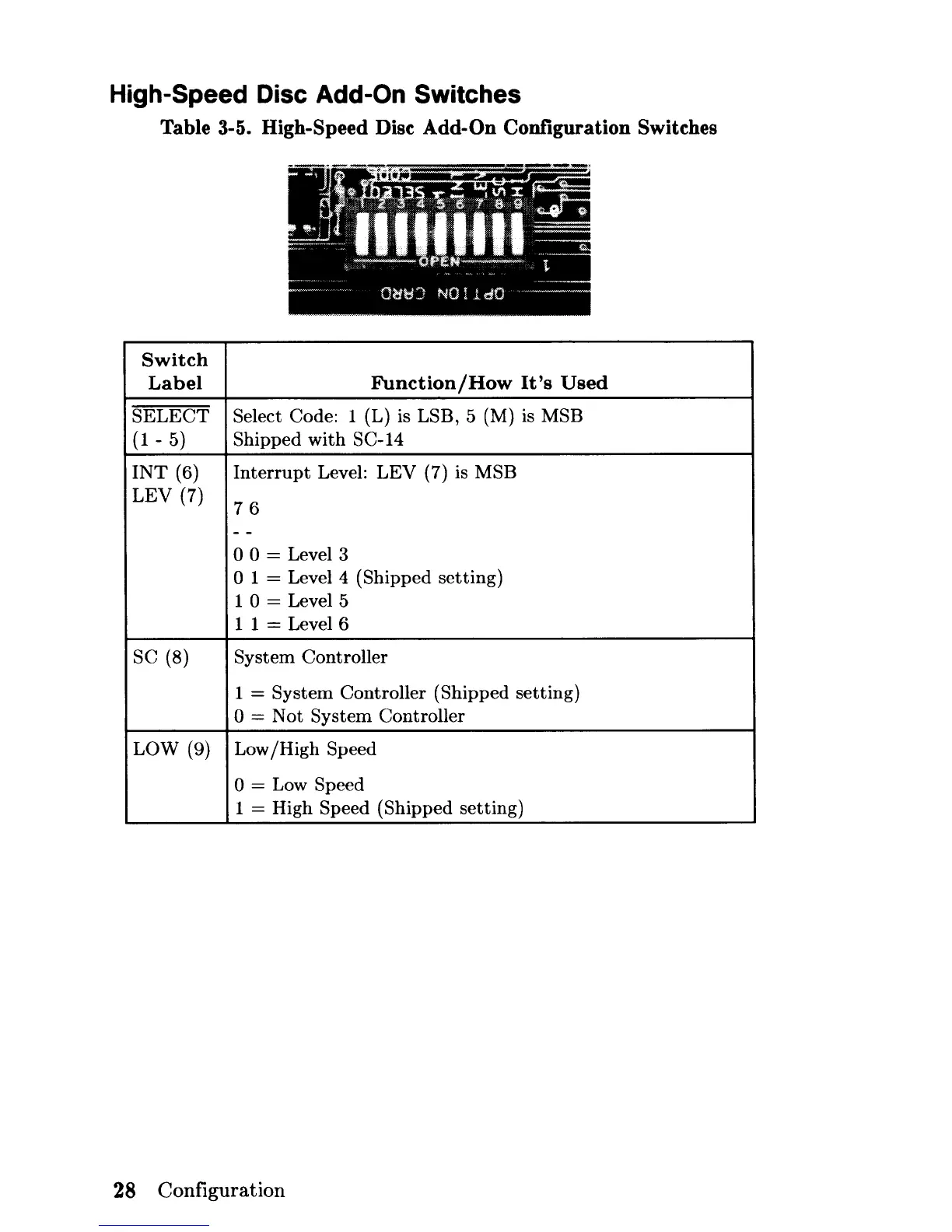

High-Speed Disc Add-On Switches
Table 3-5. High-Speed Disc Add-On Configuration Switches
Switch
Label
Function/How
It's
Used
SELECT
Select Code: 1 (L) is LSB, 5 (M)
is
MSB
(1
- 5)
Shipped with
SC-14
INT
(6)
Interrupt
Level:
LEV
(7) is MSB
LEV
(7)
76
- -
00
= Level 3
o 1 = Level 4 (Shipped setting)
1
0 = Level 5
1 1 = Level 6
SC (8)
System Controller
1 = System Controller (Shipped setting)
o = Not System Controller
LOW (9) Low
/High
Speed
0=
Low Speed
1 = High Speed (Shipped setting)
28 Configuration
