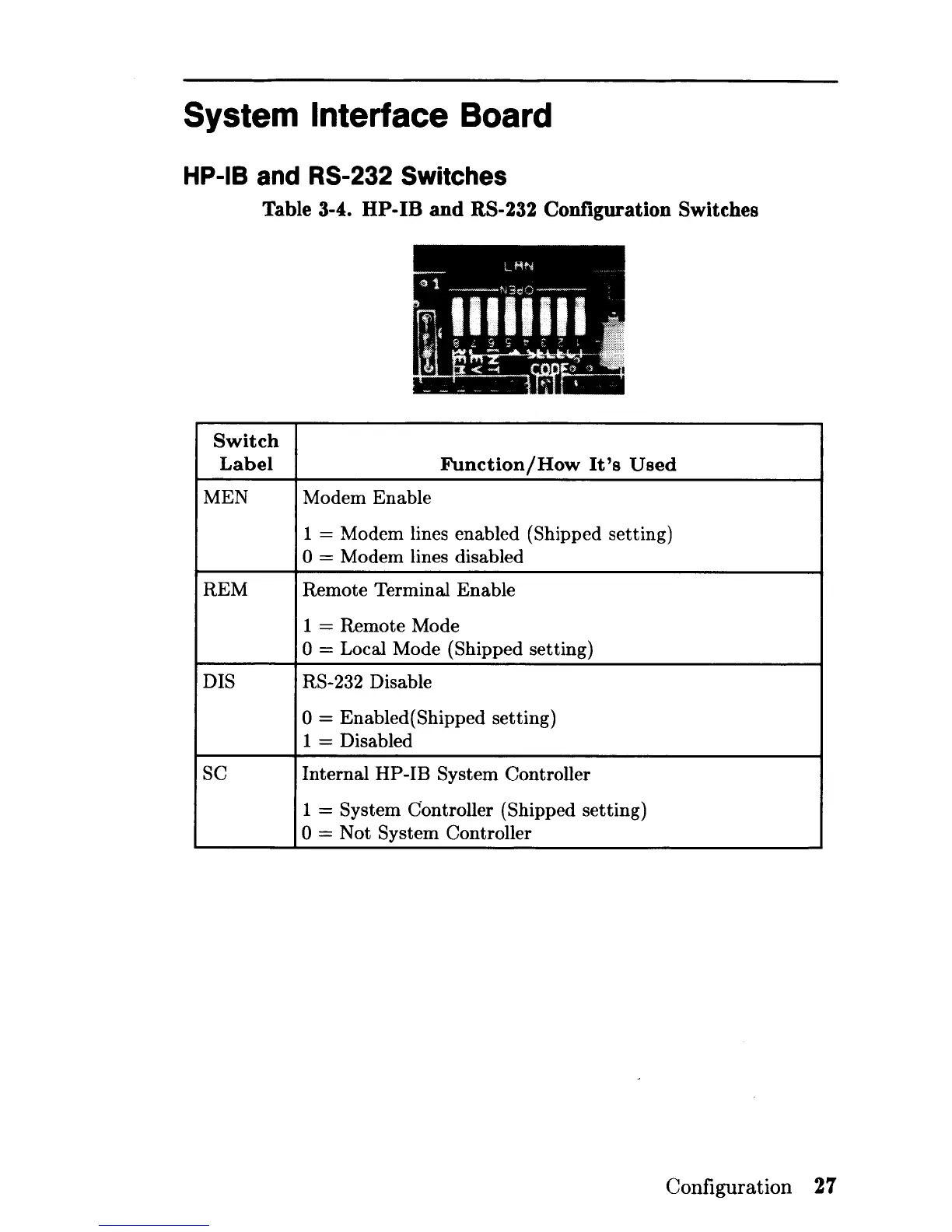

System Interface Board
HP-IB and RS-232 Switches
Table 3-4. HP-IB and RS-232 Configuration Switches
Switch
Label
Function/How
It's
Used
MEN
Modem Enable
1
= Modem lines enabled (Shipped setting)
o = Modem lines disabled
REM
Remote Terminal Enable
1
= Remote Mode
o = Local Mode (Shipped setting)
DIS
RS-232 Disable
o = Enabled(Shipped setting)
1
= Disabled
SC Internal
HP-IB
System Controller
1
= System Controller (Shipped setting)
o = Not System Controller
Configuration 27
