Installing the console switch 17
2.

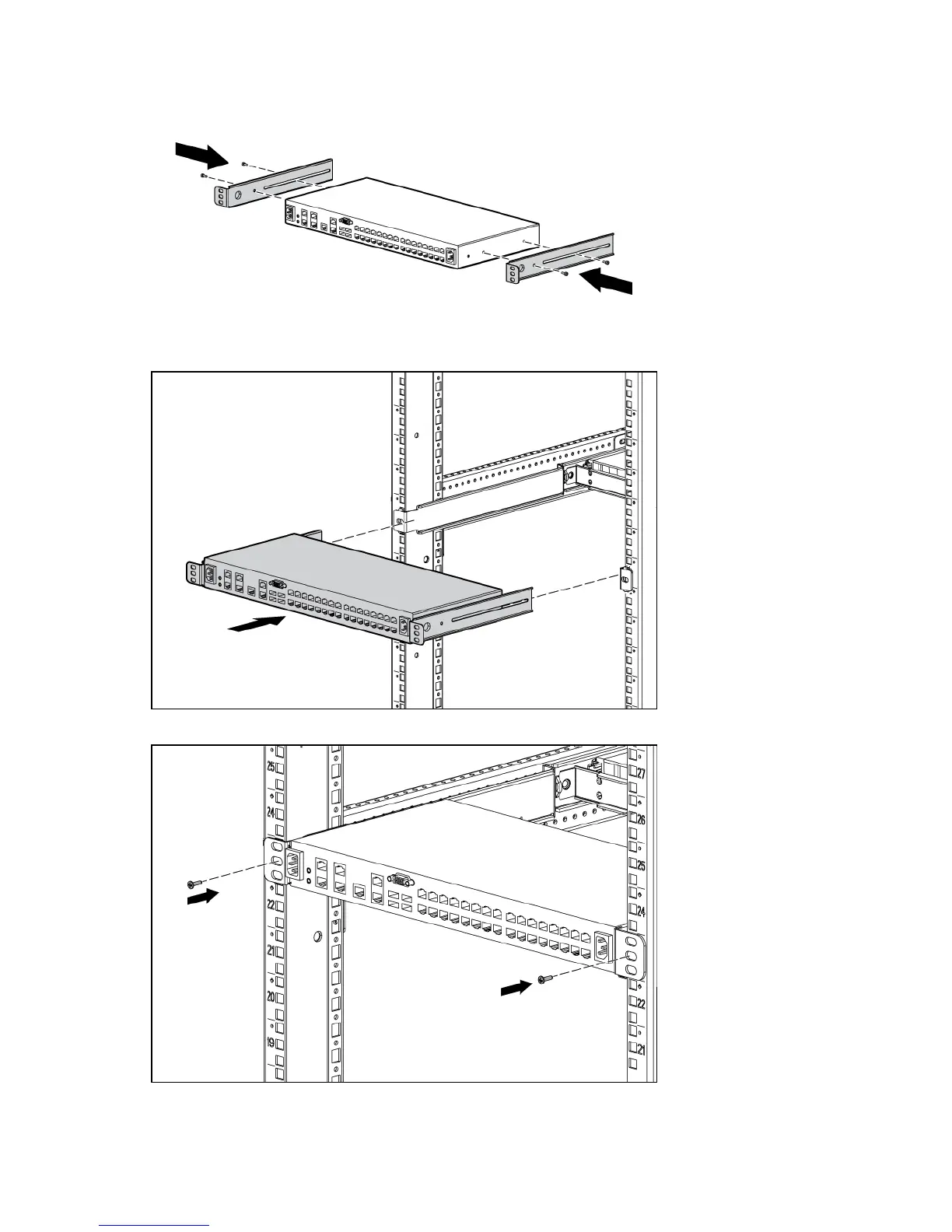

Attach the long 1U brackets to the console switch using four of the screws you removed. Discard the
two remaining screws.
3. If not already installed, install a cage nut behind each rear rail.
4. Slide the console switch into the rear of the 1U product.
5. Secure the console switch to the rails using two M-6 screws, one on each side.
