HP 336045-B21 - Server Console Switch KVM User Manual

Installing the console switch 18
Performing a cantilever-mount installation
1. Remove the six screws, three on each side, from the console switch.
2. Attach the long 1U brackets to the console switch using four of the screws you removed. Discard the
two remaining screws.

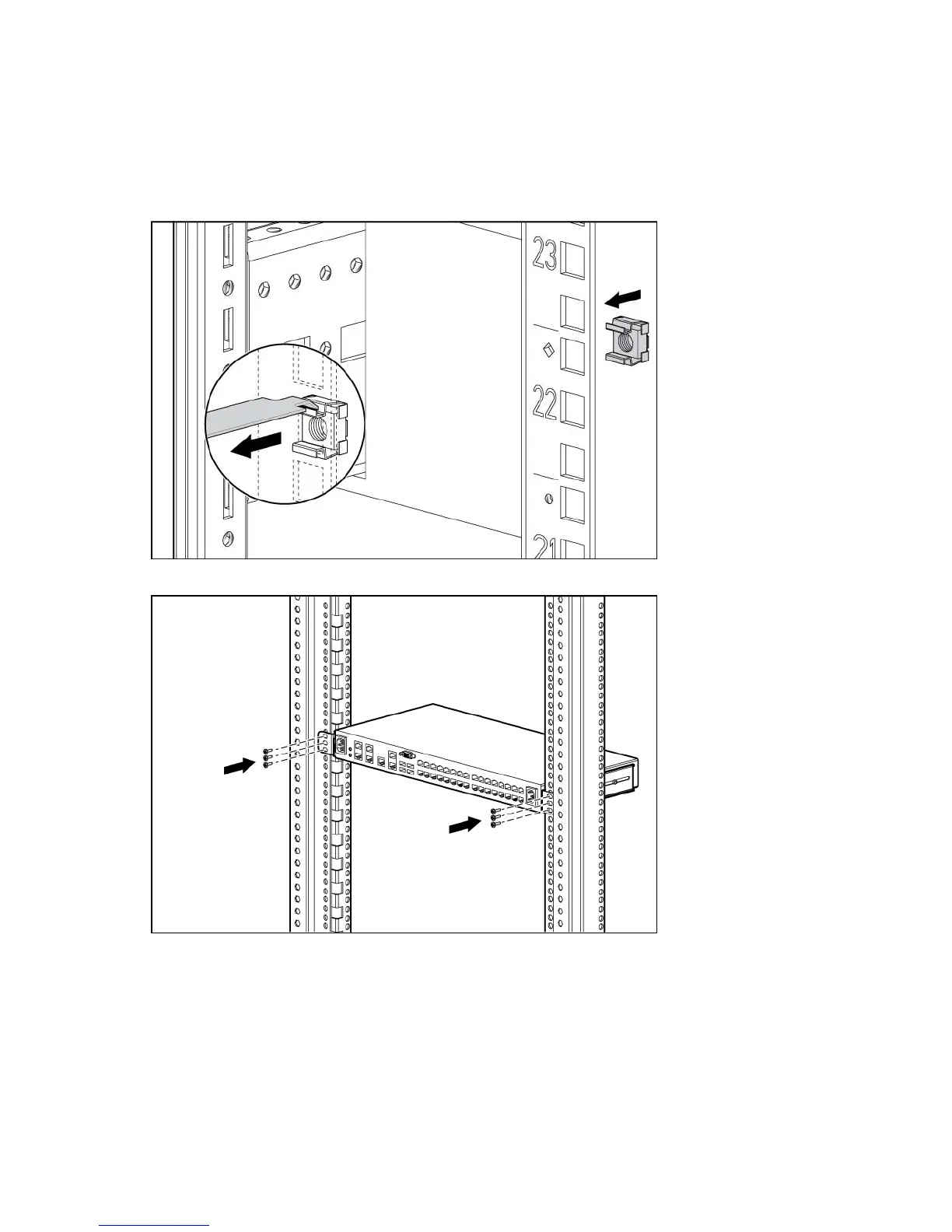

3. Install up to six cage nuts.
4. Secure the console switch to the rails using the appropriate number of M-6 screws.
Performing a side-mount installation
1. Remove the six screws, three on each side, from the console switch.

HP 336045-B21 - Server Console Switch KVM Specifications

General

Brand	HP
Model	336045-B21 - Server Console Switch KVM
Category	Switch
Language	English
