Cascading console switches 27

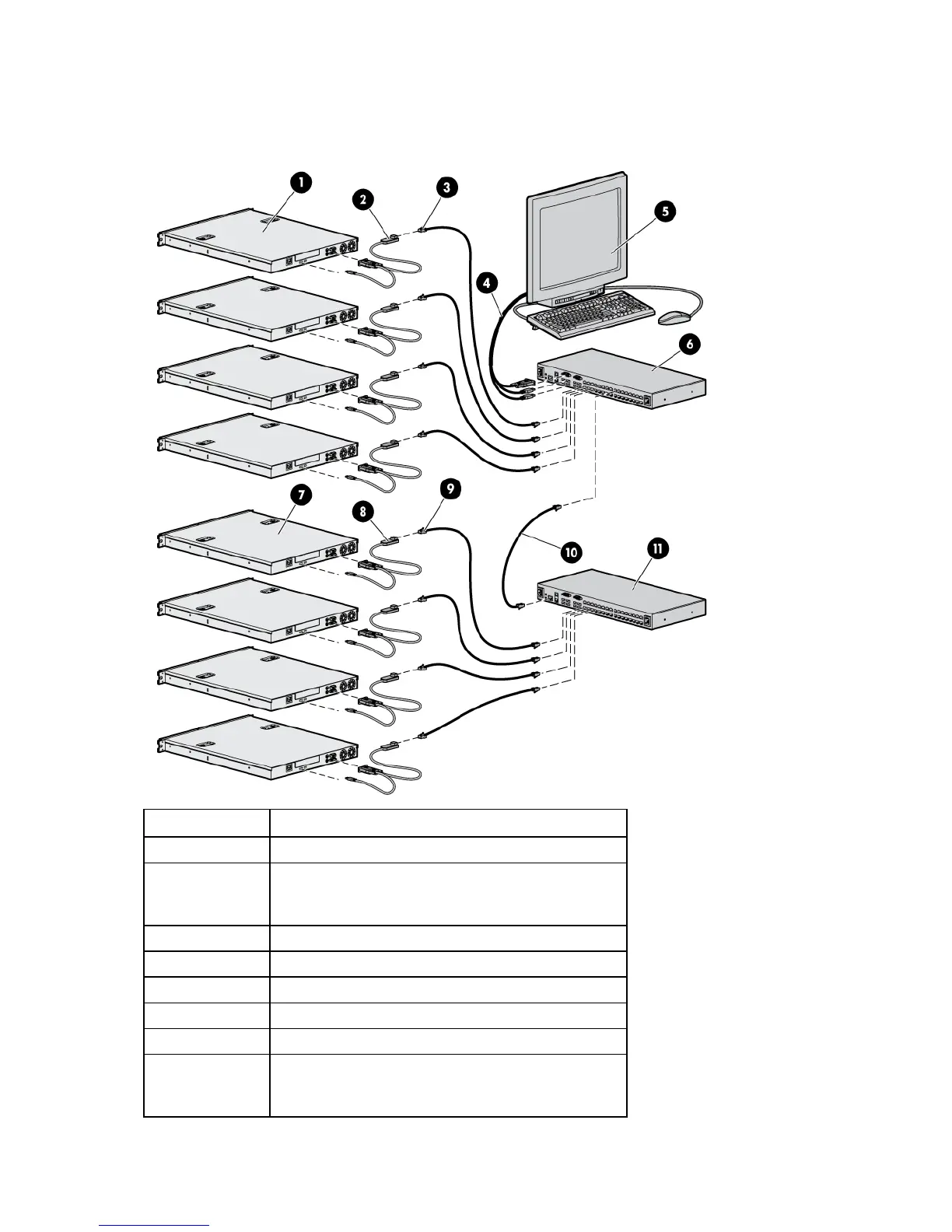

Example of an HP Server Console Switch G2 cascade
configuration
Item Description
1 Servers
2 Interface adapters (USB 2.0 interface adapter with
Virtual Media or PS2 interface adapter with Virtual
Media)
3 UTP CAT5 cable
4 Local console KVM cables
5 Local console monitor
6 Primary console switch
7 Servers
8 Interface adapters (USB 2.0 interface adapter with
Virtual Media or PS2 interface adapter with Virtual
Media)
