HP 3465B - Page 45

Section VI
Model 3465B

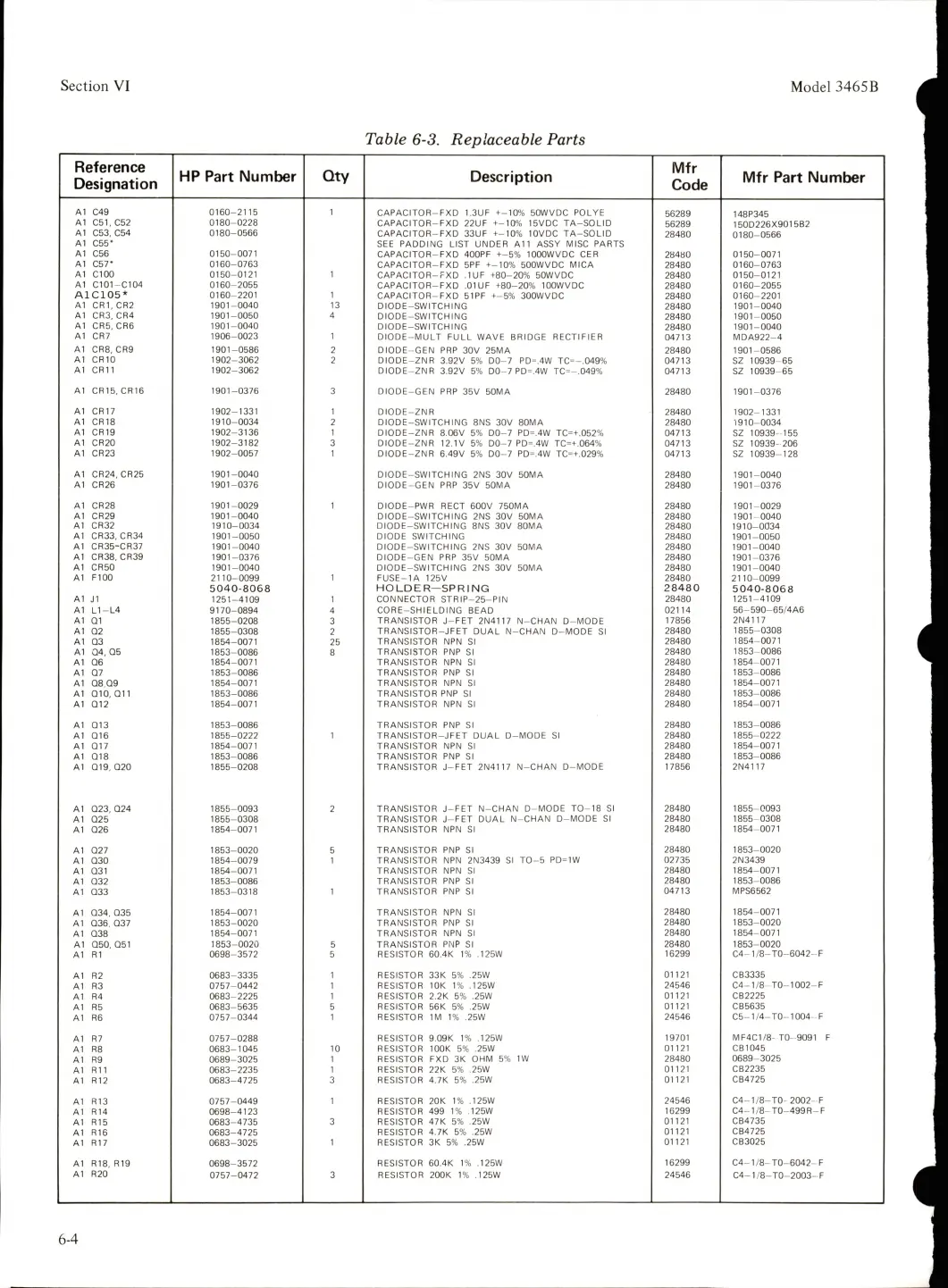

Table 6-3. Replaceable Parts
Reference
Designation
HP Part Number
Qty
Description
Mfr
Code
Mfr Part Number
A1 C49 0160-2115 1
CAPACITOR-FXD 1,3UF +-10% 50WVDC POLYE
56289
148P345
A1 C51,C52
0180-0228
CAPACITOR-FXD 22UF +-10% 15VDC TA-SOLID
56289 150D226X9015B2
A1 C53, C54
0180-0566
CAPACITOR-FXD 33UF +-10% 10VDC TA-SOLID
28480 0180-0566
A1 C55*
SEE PADDING LIST UNDER All ASSY MISC PARTS
A1 C56 0150-0071
CAPACITOR-FXD 400PF +-5% lOOOWVDC CER 28480 0150-0071
A1 C57' 0160-0763
CAPACITOR-FXD 5PF +-10% 500WVDC MICA 28480 0160-0763
A1 C100 0150-0121 1
CAPACITOR-FXD .1UF +80-20% 50WVDC 28480 0150-0121
A1 C101-C104
0160-2055
CAPACITOR-FXD .01UF +80-20% 100WVDC
28480
0160-2055
A1C105*
0160-2201 1
CAPACITOR-FXD 51PF +-5% 300WVDC
28480
0160-2201
A1 CRl, CR2
1901-0040
13
DIODE-SWITCHING 28480
1901-0040
AT CR3, CR4 1901-0050 4
DIODE-SWITCHING 28480
1901-0050
A1 CR5, CR6 1901-0040
DIODE-SWITCHING 28480 1901-0040
A1 CR7 1906-0023 1
DIODE-MULT FULL WAVE BRIDGE RECTIFIER
04713
MDA922-4
A1 CR8, CR9
1901-0586
2 DIODE-GEN PRP 30V 25MA
28480 1901-0586
A1 CR10
1902-3062
2 DIODE-ZNR 3.92V 5% DO-7 PD=.4W TC=-.049%
04713
SZ 10939-65
A1 CR11
1902-3062
DIODE-ZNR 3.92V 5% DO-7 PD=.4W TC=-.049%
04713 SZ 10939-65
A1 CR15.CR16
1901-0376
3 DIODE-GEN PRP 35V 50MA
28480 1901-0376
A1 CR17
1902-1331 1
DIODE-ZNR 28480 1902-1331
A1 CR18 1910-0034
2
DIODE-SWITCHING 8NS 30V 80MA 28480
1910-0034
A1 CR19
1902-3136 1 DIODE-ZNR 8.06V 5% DO-7 PD=,4W TC=+.052%
04713 SZ 10939- 155
A1 CR20 1902-3182 3
DIODE-ZNR 12,1V 5% DO-7 PD=.4W TC=+,064%
04713
SZ 10939- 206
A1 CR23 1902-0057 1
DIODE-ZNR 6.49V 5% DO-7 PD=.4W TC=+.029%
04713 SZ 10939-128
A1 CR24, CR25
1901-0040
DIODE-SWITCHING 2NS 30V 50MA 28480 1901-0040
A1 CR26 1901-0376
DIODE-GEN PRP 35V 50MA 28480 1901-0376
A1 CR28
1901-0029 1 DIODE-PWR RECT 600V 750MA
28480 1901-0029
A1 CR29 1901-0040
DIODE-SWITCHING 2NS 30V 50MA 28480 1901-0040
A1 CR32 1910-0034
DIODE-SWITCHING 8NS 30V 80MA
28480
191O-O034
A1 CR33, CR34
1901-0050 DIODE SWITCHING
28480 1901-0050
A1 CR35-CR37
1901-0040 DIODE-SWITCHING 2NS 30V 50MA 28480 1901-0040
A1 CR38. CR39
1901-0376 DIODE-GEN PRP 35V 50MA 28480 1901-0376
A1 CR50
1901-0040 DIODE-SWITCHING 2NS 30V 50MA 28480 1901-0040
A1 F100 2110-0099
1
FUSE-1A 125V 28480
2110-0099
5040-8068 HOLDER—SPRING
28480
5040-8068
A1 J1
1251-4109
1 CONNECTOR STRIP-25-PIN
28480 1251-4109
A1 L1-L4
9170-0894 4 CORE-SHIELDING BEAD
02114
56-590-65/4A6
A1 Q1
1855-0208 3
TRANSISTOR J-FET 2N4117 N-CHAN D-MODE
17856
2N4117
A1 Q2
1855-0308 2 TRANSISTOR-JFET DUAL N-CHAN D-MODE SI
28480
1855-0308
A1 Q3 1854-0071
25
TRANSISTOR NPN SI
28480
1854-0071
A1 Q4, Q5
1853-0086 8
TRANSISTOR PNP SI
28480
1853-0086
A1 Q6 1854-0071 TRANSISTOR NPN SI
28480 1854-0071
A1 Q7 1853-0086 TRANSISTOR PNP SI 28480
1853-0086
A1 Q8,Q9 1854-0071 TRANSISTOR NPN SI
28480 1854-0071
A1 Q10, Q11 1853-0086 TRANSISTOR PNP SI
28480 1853-0086
A1 Q12
1854-0071
TRANSISTOR NPN SI
28480 1854-0071
A1 Q13 1853-0086
TRANSISTOR PNP SI
28480 1853-0086
A1 Q16 1855-0222
1
TRANSISTOR-JFET DUAL D-MODE SI
28480 1855-0222
A1 Q17 1854-0071 TRANSISTOR NPN SI 28480
1854-0071
A1 Q18
1853-0086
TRANSISTOR PNP SI
28480 1853-0086
A1 Q19, Q20 1855-0208 TRANSISTOR J-FET 2N4117 N-CHAN D-MODE
17856 2N4117
A1 Q23. Q24 1855-0093 2 TRANSISTOR J-FET N-CHAN D-MODE TO-18 SI
28480 1855-0093
A1 Q25 1855-0308 TRANSISTOR J-FET DUAL N-CHAN D-MODE SI
28480
1855-0308
A1 Q26 1854-0071 TRANSISTOR NPN SI
28480
1854-0071
A1 Q27
1853-0020
5
TRANSISTOR PNP SI
28480 1853-0020
A1 Q30
1854-0079 1 TRANSISTOR NPN 2N3439 SI TO-5 PD=1W
02735 2N3439
A1 Q31
1854-0071 TRANSISTOR NPN SI
28480 1854-0071
A1 Q32 1853-0086
TRANSISTOR PNP SI
28480 1853-0086
A1 Q33
1853-0318
1
TRANSISTOR PNP SI
04713 MPS6562
A1 Q34, Q35
1854-0071 TRANSISTOR NPN SI
28480 1854-0071
A1 Q36, Q37 1853-0020 TRANSISTOR PNP SI
28480 1853-0020
A1 Q38
1854-0071 TRANSISTOR NPN SI
28480
1854-0071
A1 Q50. Q51
1853-0020
5 TRANSISTOR PNP SI
28480 1853-0020
A1 R1
0698-3572
5 RESISTOR 60.4K 1% .125W
16299
C4-1/8-T0-6042-F
A1 R2
0683-3335
1
RESISTOR 33K 5% .25W
01121
CB3335
A1 R3
0757-0442 1 RESISTOR 10K 1% .125W
24546
C4-1/8-T0-1002-F
A1 R4
0683-2225
1
RESISTOR 2.2K 5% .25W
01121 CB2225
AT R5
0683-5635 5 RESISTOR 56K 5% .25W
01121 CB5635
A1 R6
0757-0344 1
RESISTOR 1M 1% .25W
24546
C5-1/4-T0-1004-F
A1 R7
0757-0288 RESISTOR 9.09K 1% .125W
19701
MF4C1/8-TO-9091 F
A1 R8
0683-1045
10 RESISTOR 10GK 5% .25W
01121 CB1045
AT R9
0689-3025
1
RESISTOR FXD 3K OHM 5% 1W
28480 0689-3025
A1 R11
0683-2235 1 RESISTOR 22K 5% .25W
01121 CB2235
A1 R12
0683-4725
3 RESISTOR 4.7K 5% .25W
01121
CB4725
A1 R13
0757-0449 1 RESISTOR 20K 1% .125W
24546
C4-1/8-T0- 2002-F
A1 R14
0698-4123
RESISTOR 499 1% .125W
16299
C4-1/8-T0-499R-F
A1 R15 0683-4735
3
RESISTOR 47K 5% .25W
01121 CB4735
A1 R16
0683-4725 RESISTOR 4.7K 5% .25W
01121 CB4725
A1 R17
0683-3025
1
RESISTOR 3K 5% .25W
01121 CB3025
A1 R18, R19 0698-3572
RESISTOR 60.4K 1% .125W
16299 C4-1/8-T0-6042-F
A1 R20
0757-0472 3 RESISTOR 200K 1% .125W
24546
C4-1/8-T0-2003-F
