Section VI Model 3465B

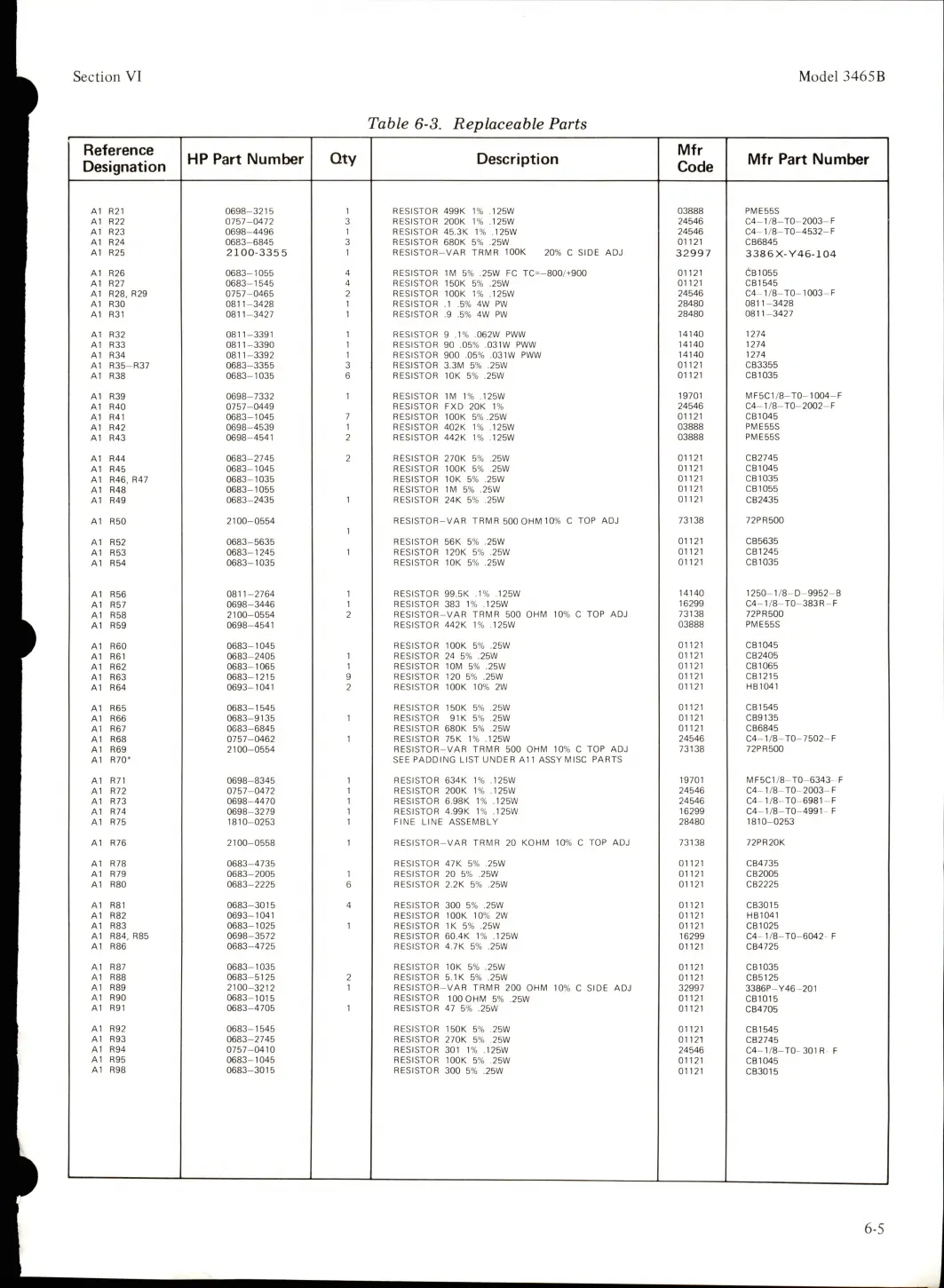

Table 6-3. Replaceable Parts
Reference
Designation
HP Part Number
Qty
Description
Mfr
Code
Mfr Part Number
A1 R21 0698-3215 1 RESISTOR 499K 1% ,125W 03888 PME55S
A1 R22
0757-0472 3 RESISTOR 200K 1% .125W 24546
C4-1/8-T0-2003-F
A1 R23
0698-4496 1
RESISTOR 45.3K 1% .125W
24546
C4-1/8-T0-4532-F
A1
R24
0683-6845 3 RESISTOR 680K 5% ,25W
01121 CB6845
A1
R25
2100-3355
1 RESISTOR-VAR TRMR 100K 20% C SIDE ADJ
32997
3386X-Y46-104
A1 R26
0683-1055 4
RESISTOR 1M 5% .25W FC TC=-800/+900
01121 CB1055
A1
R27
0683-1545
4
RESISTOR 150K 5% .25W
01121 CB1545
A1 R28, R29 0757-0465 2 RESISTOR 100K 1% .125W
24546
C4-1/8-T0-1003-F
A1 R30 0811-3428
1
RESISTOR .1 .5% 4W PW
28480
0811-3428
A1 R31 0811-3427 1 RESISTOR .9 .5% 4W PW
28480
0811-3427
A1 R32 0811-3391
1
RESISTOR 9 .1% .062W PWW
14140 1274
A1 R33 0811-3390
1
RESISTOR 90 .05% .031W PWW
14140
1274
A1 R34 0811-3392
1
RESISTOR 900 .05% .031W PWW
14140
1274
A1 R35-R37 0683-3355 3 RESISTOR 3.3M 5% .25W
01121 CB3355
A1
R38
0683-1035 6 RESISTOR 10K 5% .25W
01121 CB1035
A1 R39
0698-7332 1
RESISTOR 1M 1% .125W
19701
MF5C1/8-T0-1004-F
A1 R40 0757-0449 RESISTOR FXD 20K 1%
24546
C4-1/8-T0-2002-F
A1
R41 0683-1045
7
RESISTOR lOOK 5% .25W
01121 CB1045
A1 R42
0698-4539 1 RESISTOR 402K 1% .125W
03888 PME55S
A1 R43
0698-4541 2
RESISTOR 442K 1% .125W
03888 PME55S
A1 R44
0683-2745 2 RESISTOR 270K 5% .25W
01121 CB2745
A1 R45
0683-1045 RESISTOR 100K 5% .25W
01121 CB1045
A1 R46, R47
0683-1035 RESISTOR 10K 5% .25W
01121
CB1035
A1 R48
0683-1055 RESISTOR 1M 5% .25W
01121 CB1055
A1 R49
0683-2435
1
RESISTOR 24K 5% .25W
01121
CB2435
A1 R50
2100-0554 RESISTOR-VAR TRMR 500 OHM 10% C TOP ADJ
73138 72PR500
A1 R52
0683-5635 RESISTOR 56K 5% .25W
01121 CB5635
A1 R53 0683-1245
1
RESISTOR 120K 5% .25W
01121 CB1245
A1
R54 0683-1035 RESISTOR 10K 5% .25W
01121 CB1035
A1 R56
0811-2764 1 RESISTOR 99.5K .1% .125W
14140 1250-1/8-D-9952-B
A1 R57
0698-3446
1
RESISTOR 383 1% .125W
16299
C4-1/8-T0-383R-F
A1 R58
2100-0554 2
RESISTOR-VAR TRMR 500 OHM 10% C TOP ADJ
73138 72PR500
A1 R59
0698-4541 RESISTOR 442K 1% .125W
03888 PME55S
A1 R60
0683-1045 RESISTOR 100K 5% .25W
01121 CB1045
A1
R61
0683-2405
1 RESISTOR 24 5% .25W
01121 CB2405
A1 R62
0683-1065
1
RESISTOR 10M 5% .25W
01121 CB1065
A1 R63
0683-1215 9 RESISTOR 120 5% .25W
01121
CB1215
A1 R64
0693-1041 2 RESISTOR 100K 10% 2W
01121
HB1041
A1 R65
0683-1545 RESISTOR 150K 5% .25W
01121 CB1545
A1 R66
0683-9135
1
RESISTOR 91K 5% .25W
01121 CB9135
A1 R67
0683-6845 RESISTOR 680K 5% .25W
01121 CB6845
A1 R68 0757-0462
1
RESISTOR 75K 1% .125W
24546
C4-1/8-T0-7502-F
A1
R69 2100-0554 RESISTOR-VAR TRMR 500 OHM 10% C TOP ADJ
73138 72PR500
A1 R70*
SEE PADDING LIST UNDER All ASSYMISC PARTS
A1
R71 0698-8345 1 RESISTOR 634K 1% .125W
19701
MF5C1/8-T0-6343- F
A1 R72 0757-0472
1 RESISTOR 200K 1% .125W
24546
C4-1/8-T0-20O3-F
A1 R73 0698-4470
1
RESISTOR 6.98K 1% .125W
24546
C4-1/8-T0-6981-F
A1 R74 0698-3279 1 RESISTOR 4.99K 1% .125W
16299 C4-1/8-T0-4991- F
A1 R75
1810-0253 1 FINE LINE ASSEMBLY 28480 1810-0253
A1 R76 2100-0558
1 RESISTOR-VAR TRMR 20 KOHM 10% C TOP ADJ 73138
72PR20K
A1
R78
0683-4735 RESISTOR 47K 5% .25W 01121
CB4735
A1 R79 0683-2005
1 RESISTOR 20 5% .25W 01121 CB2005
A1 R80 0683-2225 6 RESISTOR 2.2K 5% .25W
01121
CB2225
A1 R81 0683-3015
4
RESISTOR 300 5% .25W
01121 CB3015
A1 R82
0693-1041
RESISTOR 100K 10% 2W 01121
HB1041
A1 R83 0683-1025 1
RESISTOR IK 5% .25W
01121 CB1025
A1 R84, R85 0698-3572
RESISTOR 60.4K 1% .125W 16299
C4- 1/8-T0-6O42- F
A1 R86 0683-4725
RESISTOR 4.7K 5% .25W 01121 CB4725
A1 R87 0683-1035 RESISTOR 10K 5% .25W 01121 CB1035
A1 R88 0683-5125 2 RESISTOR 5.1K 5% .25W
01121 CB5125
A1 R89
2100-3212
1 RESISTOR-VAR TRMR 200 OHM 10% C SIDE ADJ
32997
3386P-Y46-201
A1 R90
0683-1015
RESISTOR 100 OHM 5% .25W
01121
CB1015
A1 R91 0683-4705 1
RESISTOR 47 5% .25W
01121
CB4705
A1
R92 0683-1545 RESISTOR 150K 5% .25W
01121
CB1545
A1 R93 0683-2745
RESISTOR 270K 5% .25W 01121
C82745
A1 R94 0757-0410
RESISTOR 301 1% .125W
24546
C4-1/8-T0-301R- F
A1 R95
0683-1045 RESISTOR 100K 5% .25W
01121
CB1045
A1 R98
0683-3015
RESISTOR 300 5% .25W
01121
CB3015
6-5
