HP 3465B - Page 47

Section VI
Model 3465B

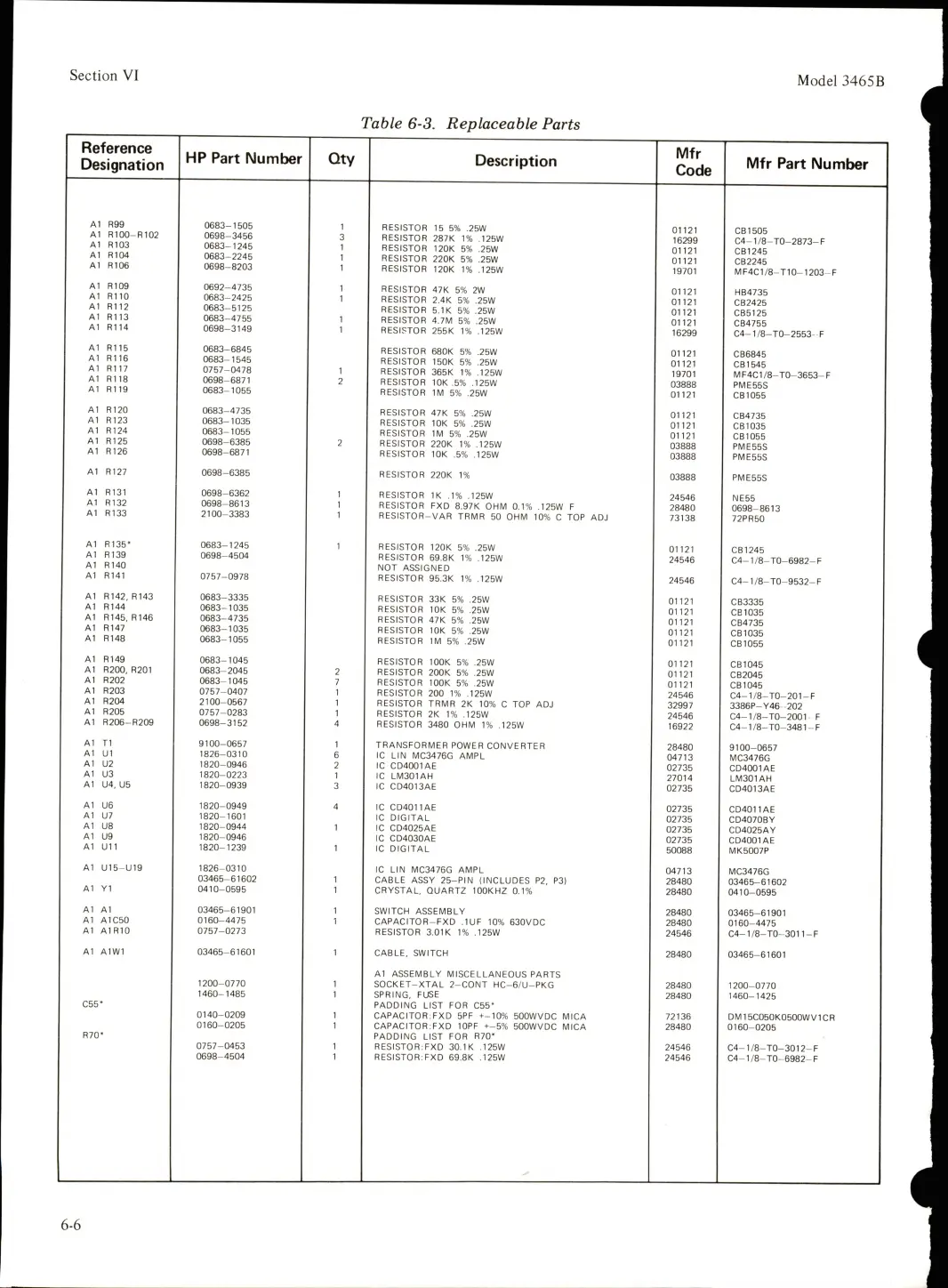

Table 6-3. Replaceable Parts
Reference
Designation
A1 R99
A1 R100-R102
A1 R103
A1 R104
A1 R106
A1 R109
A1 R110
A1 R112
A1 R113
A1 R114
A1 RMS
A1 R116
A1 R117
A1 R118
A1 R119
A1 R120
A1 R123
A1 R124
A1 R125
A1 R126
A1 R127
A1 R131
A1 R132
A1 R133
A1 R135*
A1 R139
A1 R140
A1 R141
A1 R142, R143
A1 R144
A1 R145, R146
A1 R147
A1 R148
A1 R149
A1 R200. R201
A1 R202
A1 R203
A1 R204
A1 R205
A1 R206-R209
A1 T1
A1 U1
A1 U2
A1 U3
A1 U4, U5
A1 U6
A1 U7
A1 U8
A1 U9
A1 U11
A1 U15-U19
A1 A1
A1 A1C50
A1 A1R10
HP Part Number
0683-1505
0698-3456
0683-1245
0683-2245
0698-8203
0692-4735
0683-2425
0683-5125
0683-4755
0698-3149
0683-6845
0683-1545
0757-0478
0698-6871
0683-1055
0683-4735
0683-1035
0683-1055
0698-6385
0698-6871
0698-6385
0698-6362
0698-8613
2100-3383
0683-1245
0698-4504
0757-0978
0683-3335
0683-1035
0683-4735
0683-1035
0683-1055
0683-1045
0683-2045
0683-1045
0757-0407
2100-0567
0757-0283
0698-3152
9100-0657
1826-0310
1820-0946
1820-0223
1820-0939
1820-0949
1820-1601
1820-0944
1820-0946
1820-1239
1826-0310
03465-61602
0410-0595
03465-61901
0160-4475
0757-0273
03465-61601
1200-0770
1460-1485
0140-0209
0160-0205
0757-0453
0698-4504
Qty
Description
RESISTOR 15 5% .25W
RESISTOR 287K 1% .125W
RESISTOR 120K 5% .25W
RESISTOR 220K 5% .25W
RESISTOR 120K 1% .125W
RESISTOR 47K 5% 2W
RESISTOR 2.4K 5% ,25W
RESISTOR 5.IK 5% .25W
RESISTOR 4.7M 5% .25W
RESISTOR 255K 1% .125W
RESISTOR 680K 5% .25W
RESISTOR 150K 5% .25W
RESISTOR 365K 1% .125W
RESISTOR 10K .5% ,125W
RESISTOR 1M 5% .25W
RESISTOR 47K 5% .25W
RESISTOR 10K 5% .25W
RESISTOR 1M 5% .25W
RESISTOR 220K 1% .125W
RESISTOR 10K .5% .125W
RESISTOR 220K 1%
RESISTOR IK .1% .125W
RESISTOR FXD 8.97K OHM 0.1% .125W F
RESISTOR-VAR TRMR 50 OHM 10% C TOP ADJ
RESISTOR 120K 5% .25W
RESISTOR 69.8K 1% .125W
NOT ASSIGNED
RESISTOR 95.3K 1% .125W
RESISTOR 33K 5% .25W
RESISTOR 10K 5% .25W
RESISTOR 47K 5% .25W
RESISTOR 10K 5% .25W
RESISTOR 1M 5% .25W
RESISTOR 100K 5% .25W
RESISTOR 200K 5% ,25W
RESISTOR 100K 5% ,25W
RESISTOR 200 1% .125W
RESISTOR TRMR 2K 10% C TOP ADJ
RESISTOR 2K 1% .125W
RESISTOR 3480 OHM 1% .125W
TRANSFORMER POWER CONVERTER
IC LIN MC3476G AMPL
IC CD4001AE
IC LM301AH
IC CD4013AE
IC CD4011AE
IC DIGITAL
IC CD4025AE
IC CD4030AE
IC DIGITAL
IC LIN MC3476G AMPL
CABLE ASSY 25-PIN (INCLUDES P2, P3)
CRYSTAL, QUARTZ 100KHZ 0.1%
SWITCH ASSEMBLY
CAPACITOR-FXD .1UF 10% 630VDC
RESISTOR 3,01K 1% .125W
CABLE, SWITCH
A1 ASSEMBLY MISCELLANEOUS PARTS
SOCKET-XTAL 2-CONT HC-6/U-PKG
SPRING, FUSE
PADDING LIST FOR C55*
CAPACITOR:FXD 5PF +-10% 500WVDC MICA
CAPACITOR:FXD 10PF +-5% 500WVDC MICA
PADDING LIST FOR R70*
RESISTORiFXD 30.1K .125W
RESISTOR:FXD 69.8K .125W
