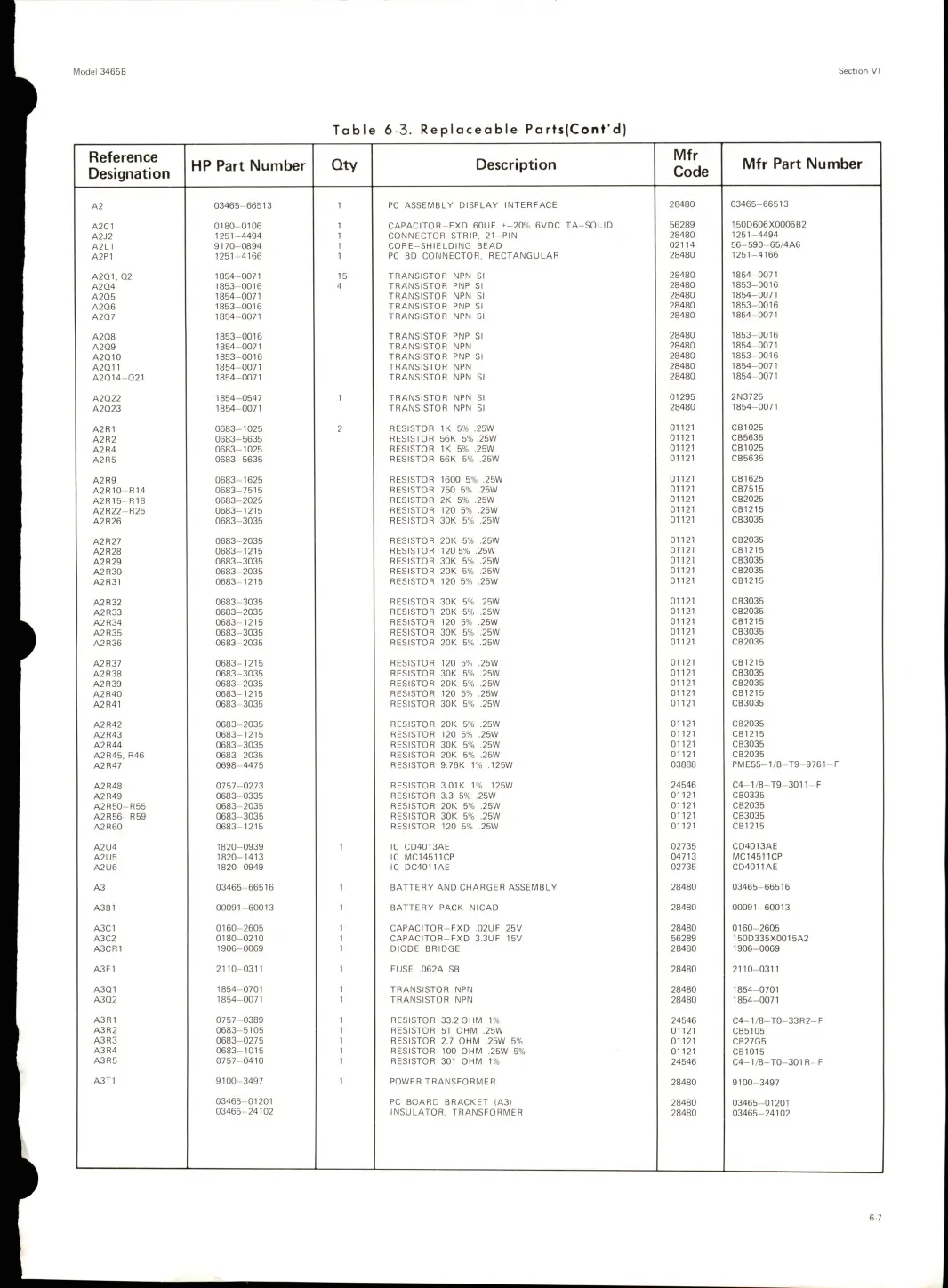

HP 3465B - Page 48

Table 6-3. Reploceable Parts(Cont'd)
Reference
Designation
HP Part Number
Qty
Description
Mfr
Code
Mfr Part Number
A2
03465-66513
1
PC ASSEMBLY DISPLAY INTERFACE
28480
03465-66513
A2C1
0180-0106
1 CAPACITOR-FXD 60UF +-20% 6VDC TA-SOLID
56289 150D606X0006B2
A2J2
1251-4494
1
CONNECTOR STRIP, 21-PIN
28480
1251-4494
A2L1
9170-0894 1 CORE-SHIELDING BEAD
02114 56-590-65/4A6
A2P1
1251-4166 1 PC BD CONNECTOR. RECTANGULAR
28480 1251-4166
A2Q1, Q2
1854-0071 15 TRANSISTOR NPN SI
28480 1854-0071
A2Q4 1853-0016
4
TRANSISTOR PNP SI
28480
1853-0016
A2Q5
1854-0071
TRANSISTOR NPN SI
28480 1854-0071
A2Q6
1853-0016 TRANSISTOR PNP SI
28480 1853-0016
A2Q7
1854-0071
TRANSISTOR NPN SI
28480
1854-0071
A2Q8
1853-0016 TRANSISTOR PNP SI
28480
1853-0016
A2Q9
1854-0071 TRANSISTOR NPN
28480
1854-0071
A2Q10 1853-0016
TRANSISTOR PNP SI
28480
1853-0016
A2Q11 1854-0071
TRANSISTOR NPN
28480
1854-0071
A2Q14-Q21 1854-0071
TRANSISTOR NPN SI
28480
1854-0071
A2Q22 1854-0547
1 TRANSISTOR NPN SI
01295 2N3725
A2Q23 1854-0071
TRANSISTOR NPN SI
28480
1854-0071
A2R1
0683-1025 2 RESISTOR IK 5% .25W
01121 CB1025
A2R2
0683-5635 RESISTOR 56K 5% .25W
01121
CB5635
A2R4 0683-1025
RESISTOR IK 5% .25W
01121
CB1025
A2R5
0683-5635
RESISTOR 56K 5% .25W
01121 CB5635
A2R9 0683-1625
RESISTOR 1600 5% .25W
01121 CB1625
A2R10-R14 0683-7515
RESISTOR 750 5% .25W
01121
CB7515
A2R15- R18 0683-2025
RESISTOR 2K 5% .25W
01121 CB2025
A2R22-R25 0683-1215
RESISTOR 120 5% .25W
01121 CB1215
A2R26 0683-3035
RESISTOR 30K 5% .25W
01121 CB3035
A2R27 0683-2035
RESISTOR 20K 5% .25W
01121 CB2035
A2R28 0683-1215
RESISTOR 120 5% .25W
01121 CB1215
A2R29
0683-3035 RESISTOR 30K 5% .25W
01121 CB3035
A2R30
0683-2035
RESISTOR 20K 5% .25W
01121 CB2035
A2R31
0683-1215
RESISTOR 120 5% ,25W
01121 CB1215
A2R32 0683-3035
RESISTOR 30K 5% .25W
01121 CB3035
A2R33 0683-2035
RESISTOR 20K 5% .25W
01121 CB2035
A2R34 0683-1215 RESISTOR 120 5% .25W
01121 CB1215
A2R35
0683-3035 RESISTOR 30K 5% .25W
01121 CB3035
A2R36
0683-2035 RESISTOR 20K 5% .25W
01121 CB2035
A2R37
0683-1215 RESISTOR 120 5% .25W
01121 CB1215
A2R38
0683-3035 RESISTOR 30K 5% .25W
01121 CB3035
A2R39 0683-2035 RESISTOR 20K 5% .25W
01121 CB2035
A2R40 0683-1215
RESISTOR 120 5% .25W
01121 CB1215
A2R41 0683-3035
RESISTOR 30K 5% .25W
01121 CB3035
A2R42
0683-2035
RESISTOR 20K 5% .25W
01121
CB2035
A2R43
0683-1215 RESISTOR 120 5% .25W
01121 CB1215
A2R44 0683-3035 RESISTOR 30K 5% .25W
01121 CB3035
A2R45, R46
0683-2035 RESISTOR 20K 5% .25W
01121 CB2035
A2R47
0698-4475 RESISTOR 9.76K 1% .125W
03888
PME55-1/8-T9-9761-F
A2R48
0757-0273 RESISTOR 3.OIK 1% .125W
24546
C4-1/8-T9-3011-F
A2R49 0683-0335 RESISTOR 3.3 5% .25W
01121 CB0335
A2R50-R55 0683-2035 RESISTOR 20K 5% .25W
01121 CB2035
A2R56- R59 0683-3035 RESISTOR 30K 5% .25W
01121 CB3035
A2R60 0683-1215 RESISTOR 120 5% .25W
01121 CB1215
A2U4 1820-0939 1 IC CD4013AE
02735
CD4013AE
A2U5
1820-1413 IC MC14511CP
04713
MC14511CP
A2U6
1820-0949
IC DC4011AE
02735 CD4011AE
A3 03465-66516
1 BATTERY AND CHARGER ASSEMBLY 28480 03465-66516
A3B1
00091-60013 1 BATTERY PACK NICAD 28480 00091-60013
A3C1 0160-2605
1 CAPACITOR-FXD .02UF 25V 28480
0160-2605
A3C2
0180-0210 1 CAPACITOR-FXD 3.3UF 15V 56289 150D335X0015A2
A3CR1
1906-0069 1 DIODE BRIDGE 28480 1906-0069
A3F1 2110-0311 1 FUSE .062A SB 28480 2110-0311
A3Q1 1854-0701
1
TRANSISTOR NPN
28480
1854-0701
A3Q2
1854-0071 1
TRANSISTOR NPN 28480
1854-0071
A3R1
0757-0389
1
RESISTOR 33.2 OHM 1% 24546 C4-1/8-T0-33R2-F
A3R2
0683-5105
1
RESISTOR 51 OHM .25W
01121 CB5105
A3R3
0683-0275
1
RESISTOR 2.7 OHM .25W 5% 01121
CB27G5
A3R4
0683-1015
1
RESISTOR 100 OHM .25W 5% 01121
CB1015
A3R5 0757-0410 1
RESISTOR 301 OHM 1%
24546
C4-1/8-T0-301 R- F
A3T1
9100-3497 1
POWER TRANSFORMER
28480 9100-3497
03465-01201
PC BOARD BRACKET (A3)
28480
03465-01201
03465-24102
INSULATOR, TRANSFORMER
28480
03465-24102
