Model 4262A
Section I
Table 1-1

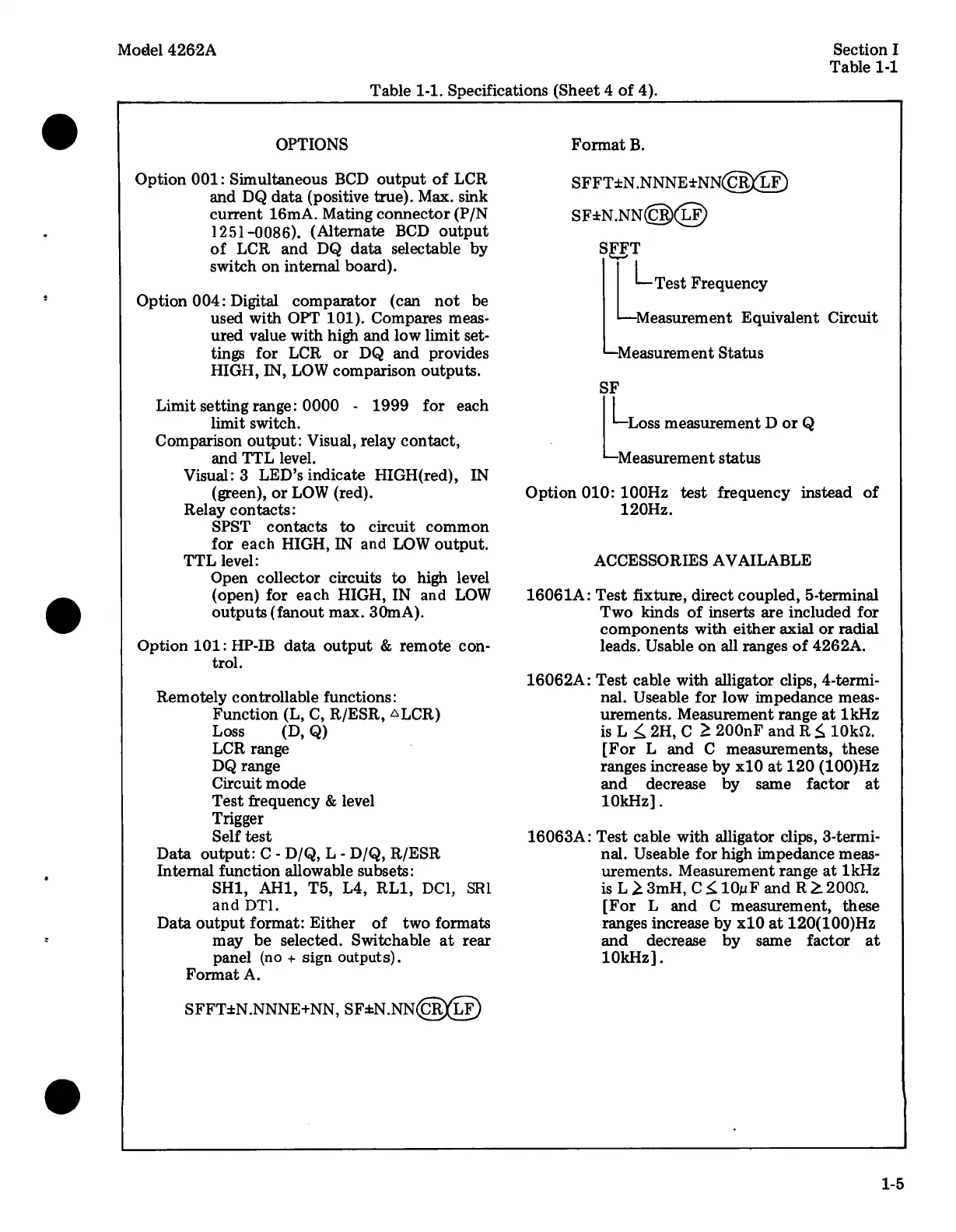

Table 1-1. Specifications (Sheet 4 of 4).
OPTIONS
Option 001: Simultaneous BCD output of LCR
and DQ data (positive true). Max. sink
current 16mA. Mating connector (P/N
1251-0086). (Alternate BCD output
of LCR and DQ data selectable by
switch on internal board).
Option 004: Digital comparator (can not be
used with OPT 101). Compares meas-
ured value with high and low limit set-
tings for LCR or DQ and provides
HIGH, IN, LOW comparison outputs.
Limit setting range: 0000 - 1999 for each
limit switch.
Comparison output: Visual, relay contact,
and TTL level.
Visual: 3 LED’s indicate HIGH(red), IN
(green), or LOW (red).
Relay contacts:
SPST contacts to circuit common
for each HIGH, IN and LOW output.
TTL level:
Open collector circuits to high level
(open) for each HIGH, IN and LOW
outputs (fanout max. 30mA).
Option 101: HP-IB data output & remote con-
trol.
Remotely controllable functions:
Function (L, C, R/ESR, 2LCR)
Loss (D, Q)
LCR range
DQ range
Circuit mode
Test frequency & level
Trigger
Self test
Data output: C - D/Q, L - D/Q, R/ESR
Internal function allowable subsets:
SH1, AH1, T5, L4, RL1, DC], SRl
and DTI.
Data output format: Either of two formats
may be selected. Switchable at rear
panel (no + sign outputs).
Format A.
SFFT+N.NNNE+NN, SF+N.NNCRYLE)
Format B.
SFFT+N.NNNE+NNCRYLF)
SF+N.NNCR(LE)
SFET
LL Test Frequency
Measurement Equivalent Circuit
LMeasurement Status
SF
[—Loss measurement D or Q
‘“—Measurement status
Option 010: 100Hz test frequency instead of
120Hz,
ACCESSORIES AVAILABLE
16061A: Test fixture, direct coupled, 5-terminal
Two kinds of inserts are included for
components with either axial or radial
leads. Usable on all ranges of 4262A.
16062A: Test cable with alligator clips, 4-termi-
nal. Useable for low impedance meas-
urements. Measurement range at 1kHz
is L £ 2H, C 2 200nF and R £ 10kQ.
[For L and C measurements, these
ranges increase by x10 at 120 (100)Hz
and decrease by same factor at
10kHz].
16063A: Test cable with alligator clips, 3-termi-
nal. Useable for high impedance meas-
urements. Measurement range at 1kHz
isL 23mH, C £ 10uF and R 2 200%.
[For L and C measurement, these
ranges increase by x10 at 120(100)Hz
and decrease by same factor at
10kHz].
