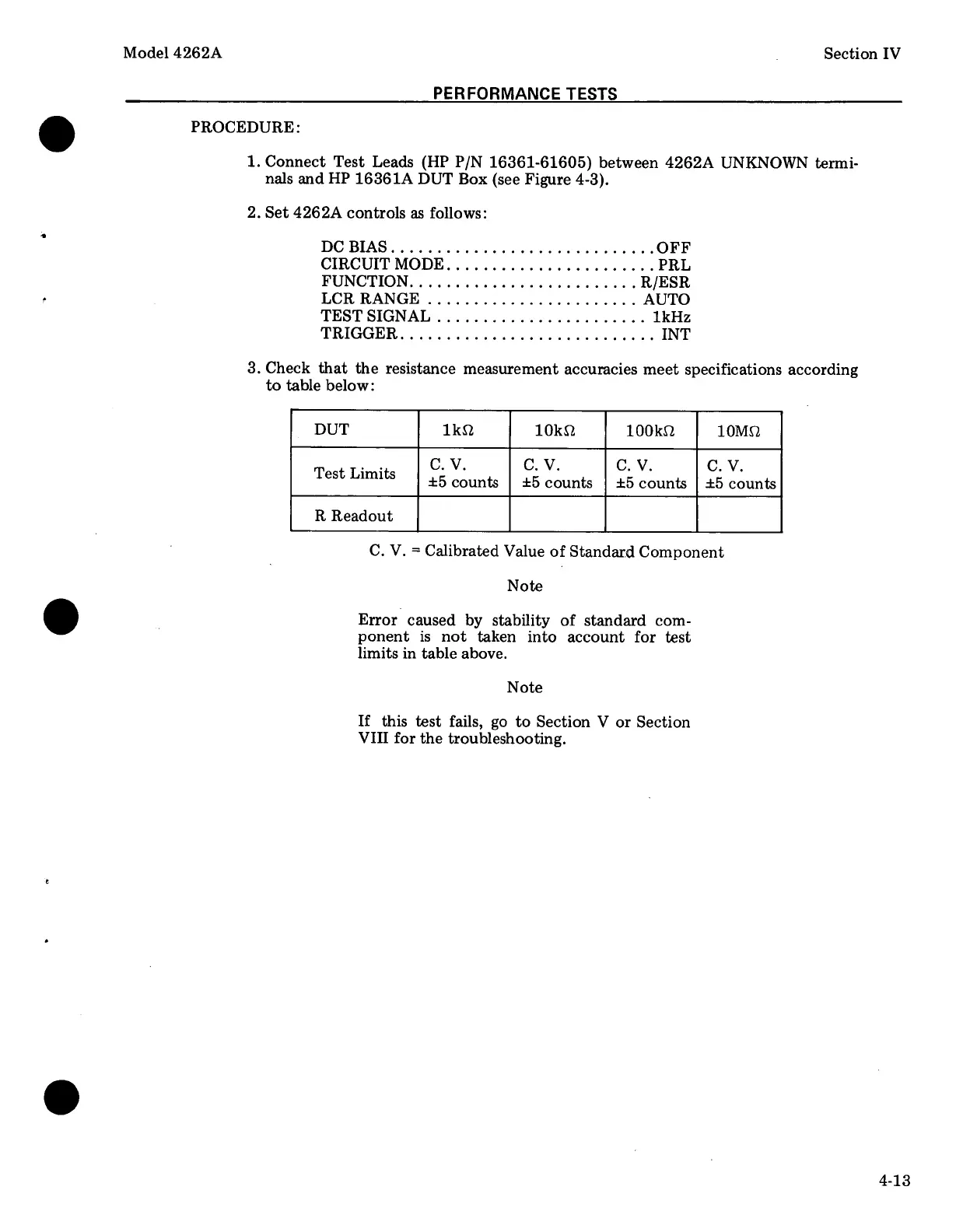

Model 4262A
PERFORMANCE TESTS
Section IV
. PROCEDURE:
1. Connect Test Leads (HP P/N 16361-61605) between 4262A UNKNOWN termi-
nals and HP 16361A DUT Box (see Figure 4-3).
2. Set 4262A controls as follows:
DCBIAS............. i, OFF
CIRCUITMODE. ...................... PRL
FUNCTION............ooiiiiinn.n, R/ESR
LCRRANGE ............. .. ivenn. AUTO
TESTSIGNAL . ...................... 1kHz
TRIGGER................ ... ... ... .. INT
3. Check that the resistance measurement accuracies meet specifications according
to table below:
DUT 1kQ 10k 100k 10MQ
Test Limit C.V. C. V. C.V. C. V.
est Lamits +5 counts | +5 counts | +5 counts | 5 counts
R Readout
C. V. = Calibrated Value of Standard Component
Note
Error caused by stability of standard com-
ponent is not taken into account for test
limits in table above.
Note
If this test fails, go to Section V or Section
VIII for the troubleshooting.
4-13
