Bottom cover
Table 6-1 Bottom cover description and part number
Description Spare part number
Bottom cover for use in models with an optical drive L83726-001
Bottom cover for use in models without an optical drive L83725-001
Computer feet (front and rear) L83731-001
1. Prepare the computer for disassembly (Preparation for disassembly on page 25).
2. Remove the optical drive (see Optical drive (select products only) on page 26).

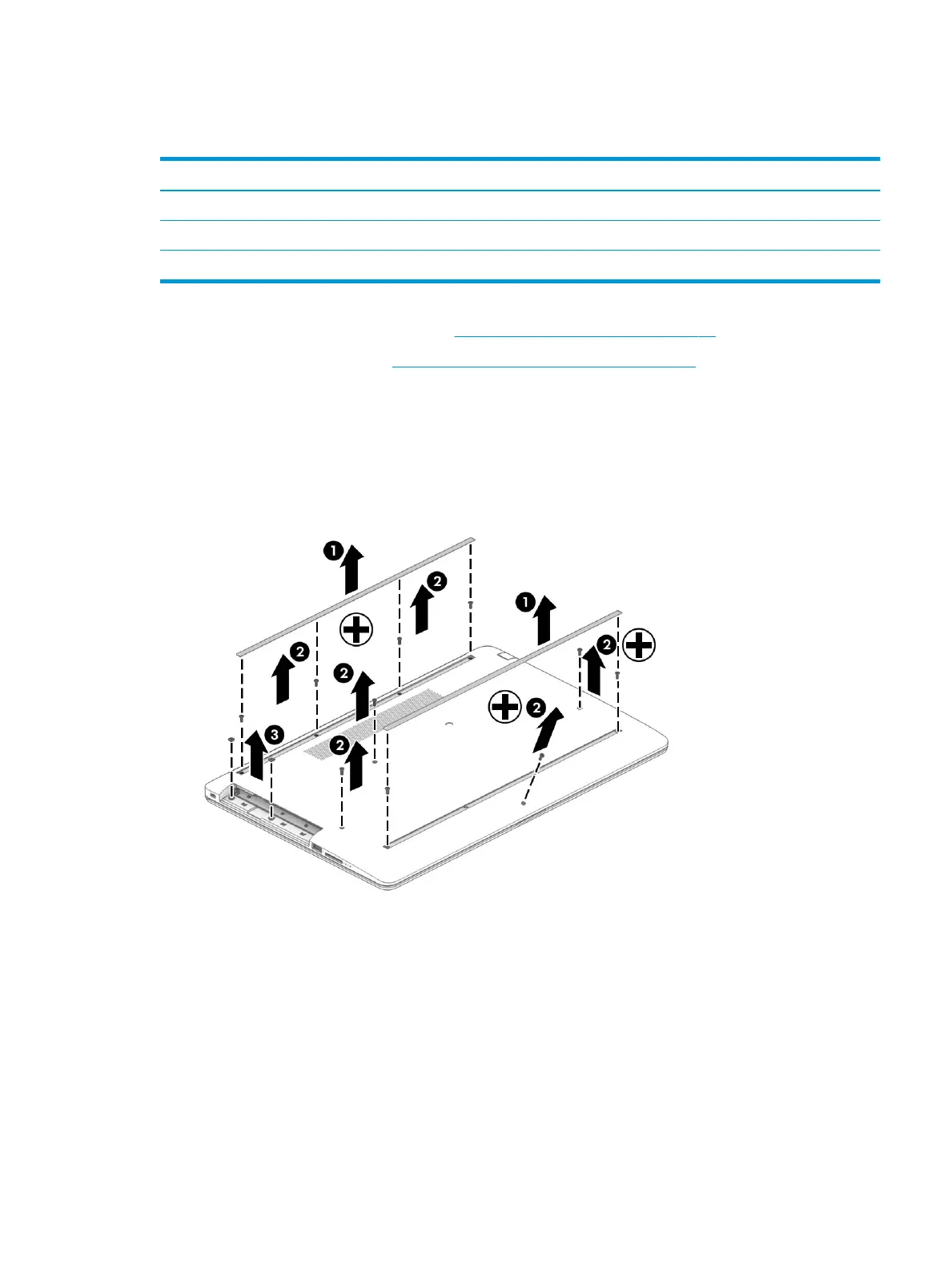

Remove the bottom cover:
1. Peel the rubber feet o the bottom of the computer (1).
2. Remove the 10 Phillips M2.5 × 6.0 screws (2).
3. (Optical drive models only) Remove the two Phillips broad head M2.0 × 2.0 screws (3) from the optical
drive bay.
Component replacement procedures 29
