Display assembly
Full hinge-up displays are not available as spare parts. Spare parts for displays are available only at the
subcomponent level.
Before removing the display panel, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 25).
2. Remove the optical drive (see Optical drive (select products only) on page 26).
3. Remove the bottom cover (see Bottom cover on page 29).
4. Remove the battery (see Battery on page 31).

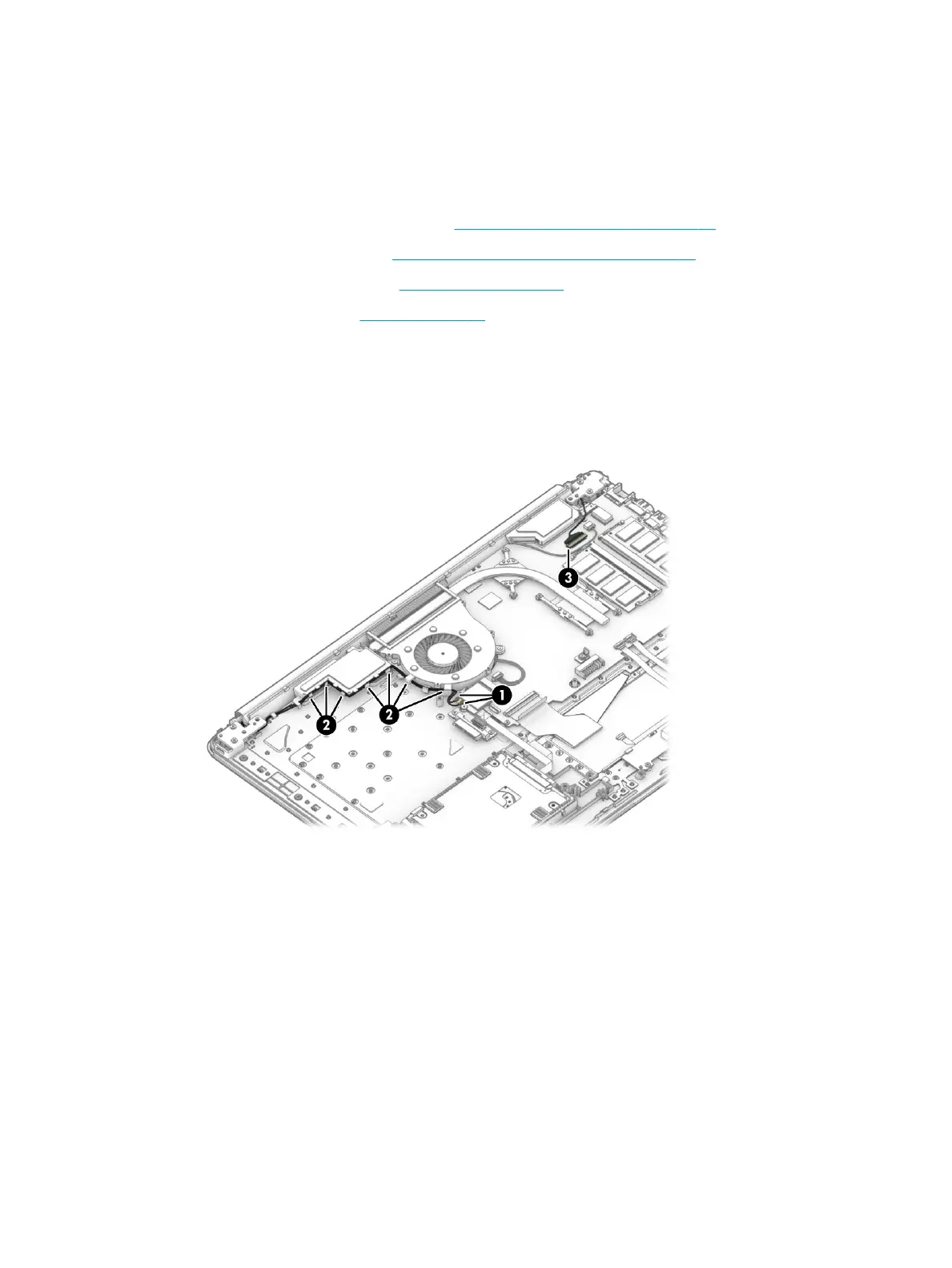

Remove the display assembly:
1. Disconnect the antenna cables from the WLAN module (1).
2. Remove the antenna cables from the clips in the speaker and fan (2).
3. Disconnect the display cable from the system board (3).
4. Remove the four Phillips M2.5 × 6.0 screws (1) from the display hinges.
5. Rotate the hinges upward (2).
Component replacement procedures 55
