HP 5120 EI Switch Series User Manual

48
 Specify the ports for authentication and accounting as 1812 and 1813 respectively
 Select Device Management Service as the service type
 Select HP(A-Series) as the access device type
 Select the access device from the device list or manually add the device with the IP address of
10.1.1.2
 Click OK to finish the operation
NOTE:
The IP address of the access device specified above must be the same as the source IP address of the
RADIUS packets sent from the device, which is the IP address of the outbound interface by default, or
otherwise the IP address specified with the nas-ip or radius nas-ip command on the device.

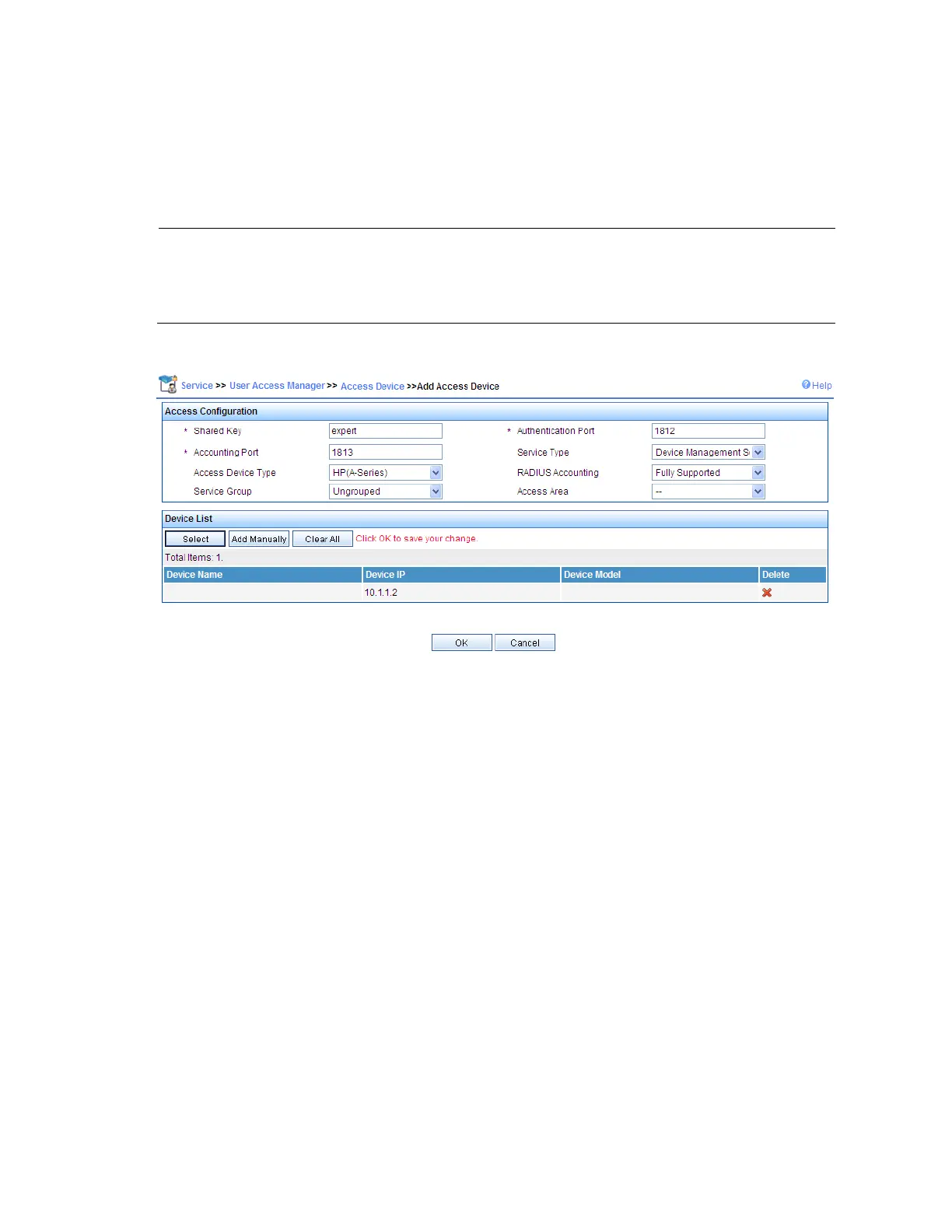

Figure 13 Add an access device
# Add a user for device management
Log in to the iMC management platform, select the User tab, and select Device Management User from
the navigation tree to enter the Device Management User page. Then, click Add to enter the Add Device
Management User window and perform the following configurations as shown in Figure 14.
 Add a user named hello@bbb and specify the password
 Select SSH as the service type
 Set the EXEC privilege level to 3. This value identifies the privilege level of the SSH user after login
and defaults to 0.
 Specify the IP address range of the hosts to be managed as 10.1.1.0 to 10.1.1.255
 Click OK to finish the operation
