49

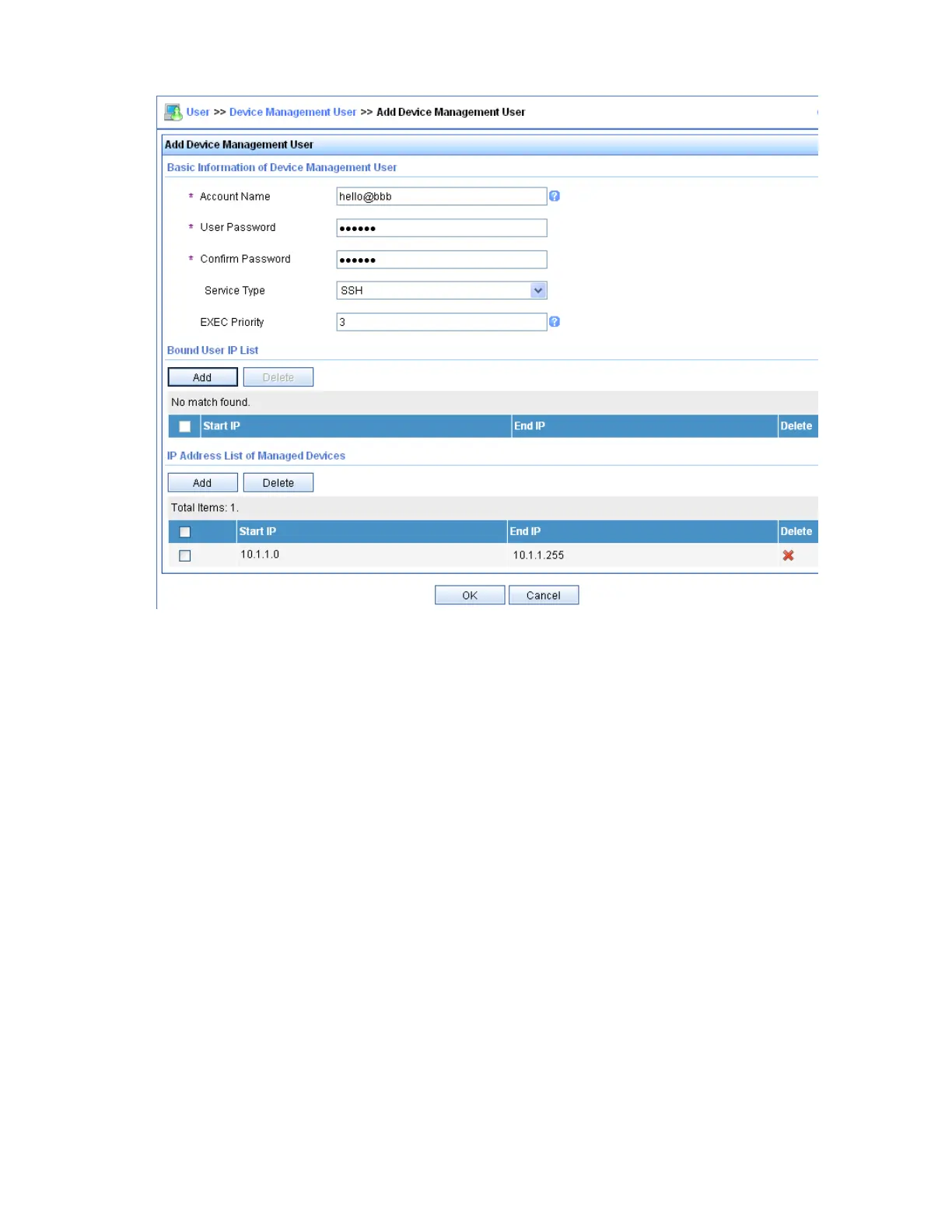

Figure 14 Add an account for device management
2. Configure the switch
# Configure the IP address of VLAN interface 2, through which the SSH user accesses the switch.
<Switch> system-view
[Switch] interface vlan-interface 2
[Switch-Vlan-interface2] ip address 192.168.1.70 255.255.255.0
[Switch-Vlan-interface2] quit
# Configure the IP address of VLAN-interface 3, through which the switch access the server.
[Switch] interface vlan-interface 3
[Switch-Vlan-interface3] ip address 10.1.1.2 255.255.255.0
[Switch-Vlan-interface3] quit
# Generate RSA and DSA key pairs and enable the SSH server.
[Switch] public-key local create rsa
[Switch] public-key local create dsa
[Switch] ssh server enable
# Configure the switch to use AAA for SSH users.
[Switch] user-interface vty 0 4
[Switch-ui-vty0-4] authentication-mode scheme
# Configure the user interfaces to support SSH.
[Switch-ui-vty0-4] protocol inbound ssh
[Switch-ui-vty0-4] quit
# Create RADIUS scheme rad.
