4

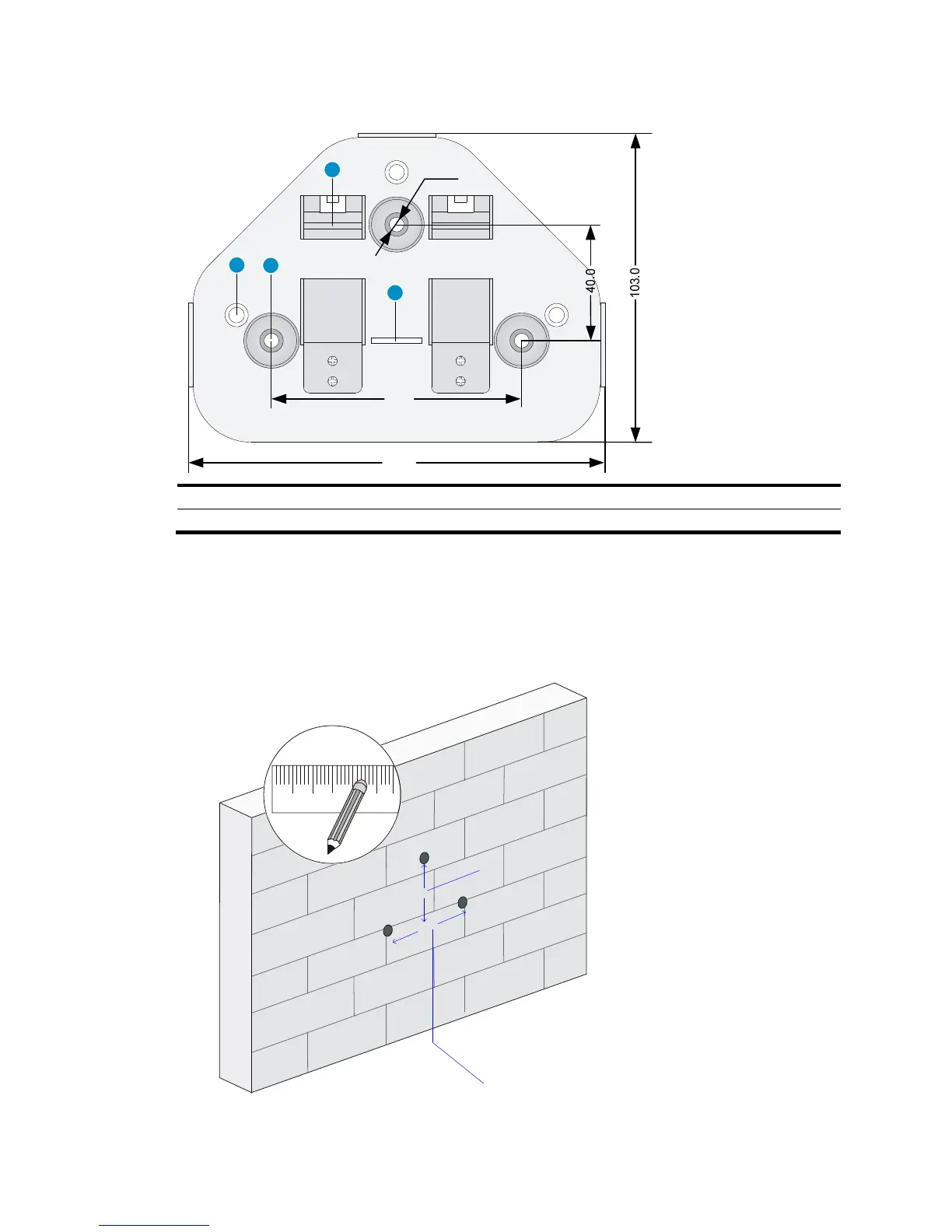

Figure 2 Screw hole locations and sizes (in mm)
(1) Hook (2)
Mountin
g
hole
(3) Clip (4)
Mountin
g
clip
To mount the AP on a wall:
1. Use the wall-mounting bracket as a template to mark the locations of the mounting holes on the
bracket. Drill three 5 mm (0.2 in) diameter holes on the marked mounting hole locations as shown
in Figure 3.
Figure 3 Drilling holes in the wall
Ø5.0
86.0
136.0
1
2
4
3
40 mm
86 mm
