HP 5315 A User Manual

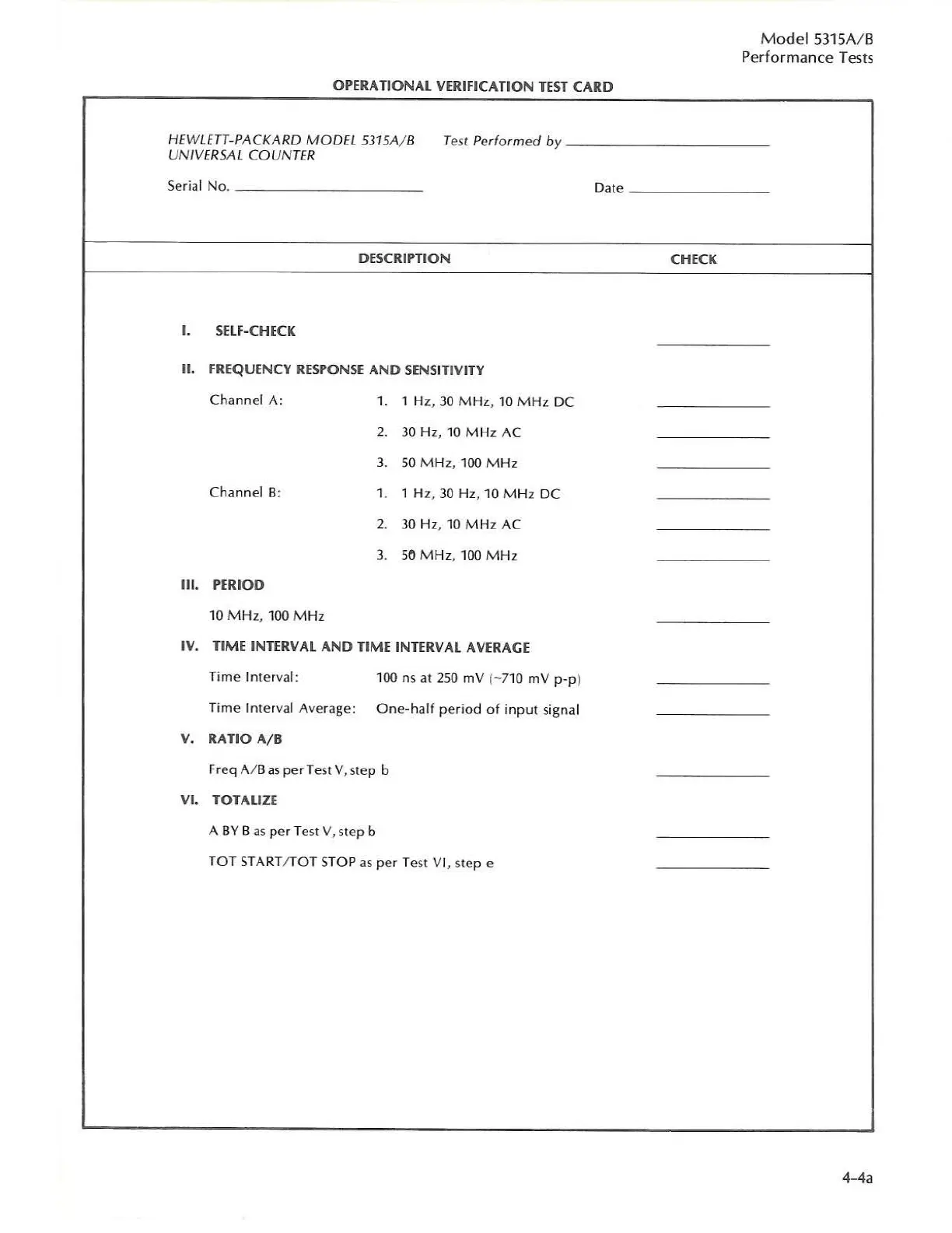

OPERATIONAL VERIFICATION TEST CARD
HEWLETT-PACKARD MODEL 5315AI B
Te s! Performed by
UNIVE RS AL COU N TER
Ser ial No.
Date
DESCRIPTION
I. SELF-CHECK
II.
FREQUENCY RESPONSE AND SENSITIVITY
Cha nnel A:
1. 1 Hz, 30 M Hz, 10 M Hz DC
2. 30 Hz, 10 MHz AC
3. 50 MHz, 100 MHz
Channel B:
1.
1
Hz, 30 Hz, 10 MH z DC
2. 30 Hz, 10 MHz AC
3. 50 M Hz , 1 00 M Hz
III. PERIOD
10 MH z, 100 MHz
IV.
TIME INTE RV AL AND TIME INTERVAL AVE RAGE
Ti
me In te rval:
100 ns at 250 mV (- 710 mV pop)
Time Inter val Average:
One-half pe riod of inpUi s ig nal
V. RA T IO AlB
FreqA / Baspe rTe stV ,s te p b
VI. TOT ALI ZE
A BY B as per T est V, ste pb
T OT STARTITOT ST OP as per Test VI, s te p e
CHECK
Mode l 5315A/ 8
Performance Tes ts
4-4a

HP 5315 A Specifications

General

Brand	HP
Model	5315 A
Category	Cash Counter
Language	English
