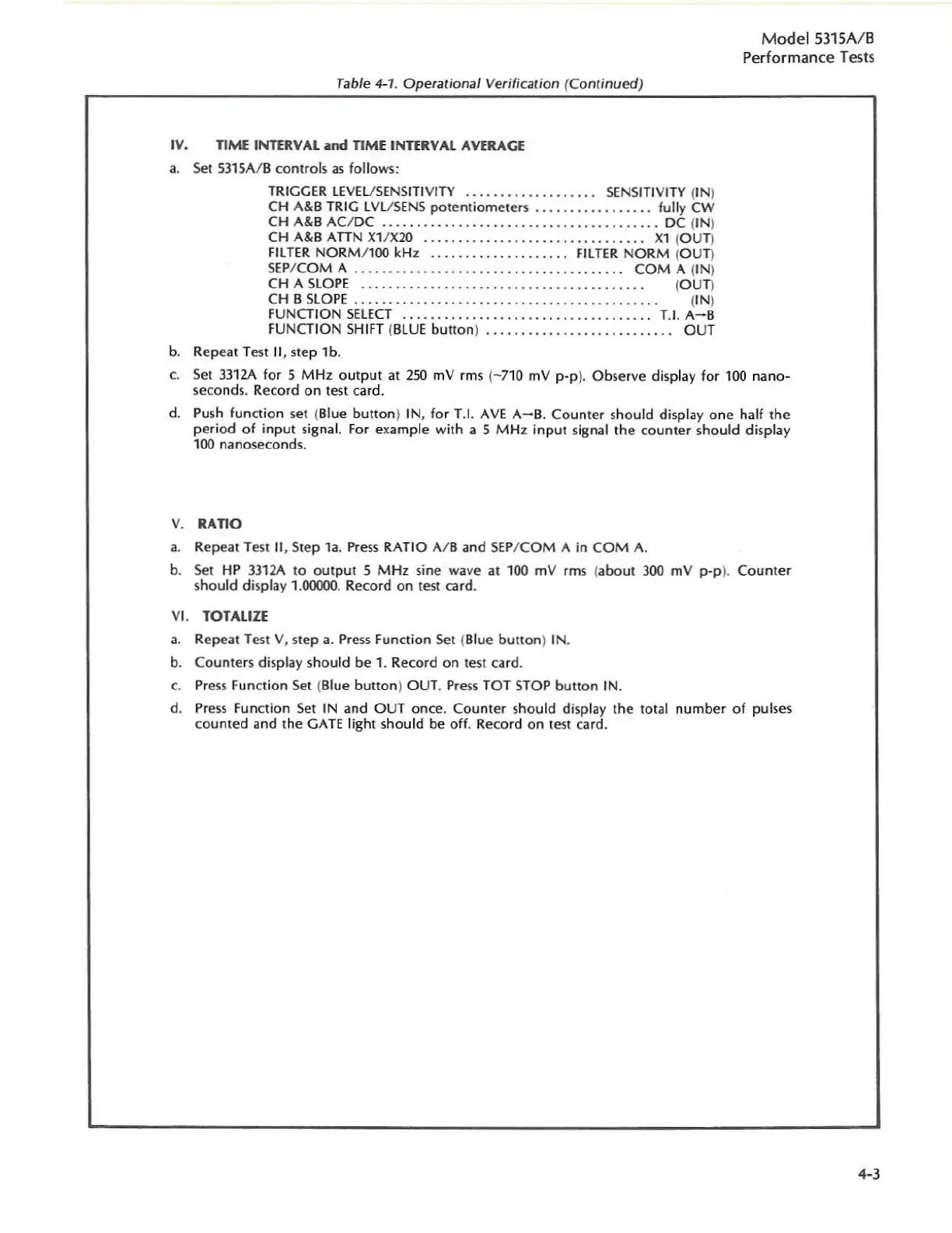

Mode l 5315A/ B
Performance Tests
Table 4-1 . Operati onal Ve rif ication (Conti nu ed)
IV. TIME INTERVAL oInd TIME INTERVAL AVERAGE
a. Se t 5315 AIB controls as fo llo ws:
TRI G GER LE V EUSE NS ITIVI TY .. . ................ SENSITIVITY (IN)
CH A&B
TR IG LVL / SENS potentiometers ................. fu ll y CW
CH A&B AC/ DC ........................................ DC ( IN )
CH A&B A TI N XlIXlO ........ . ... . ................... Xl (OUT)
FI
LTER NORM / 100 kHz ..........• . . ....... FI LTER NO RM ( OUT )
S EP / COM A ....................................... COM A ( IN )
CH A SLOP E .. . .... . ..................... ............ ( OUT )
CH
B SLOPE... ... .. ... .. . .•. . .. . • . .. . . . . . . . . .. .. .. (IN)
F
UNC TION SElECT ................. . . . ............... . T. I. A-B
FU NC TI ON SHIFT ( BLUE button ) ........................... OUT
b. Rep ea t Te st II , step lb.
c. Set 33 1 2A for 5 MHz ou tp ut at 250 mV r ms (- 710 mV p-p ). Obser ve di sp lay fo r 100 nano -
seconds. Record on t es t card.
d.
Push function set (Blue button ) IN, for T. 1. AVE A-B. Cou n ter s hould display one half the
period of input signaL For example with a 5 MHz i npu t signal the counter should displ ay
100 nanoseconds.
V. RATIO
a. Repeat T es t II , Step la. Press RATIO Al B and S EP / COM A in COM A.
b. Set HP 3312A to out put 5 MHz si ne wave at 1 00 mV rms ( about 300 mV p-p ). Counter
sh oul d display 1.()()()()() . Rec ord on t est card.
V I. TOT AllIE
a. Repeat Test V, step a. Pres s Funct ion Set (Blue bunon ) IN.
b. Counte rs display s hould be 1. Record on test card.
c. Pr ess Function Set (Blue bunon ) OUT. Pr ess T OT STO P button IN.
d. Pr ess Fun ct ion Set IN and OUT once. Coumer s hould di spl ay the total nu mber of pu l ses
counted and the GATE light should be off . R ecor d on test ca rd.
4-3
