HP 5315 A User Manual
4
of 1
of 1 rating
103 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

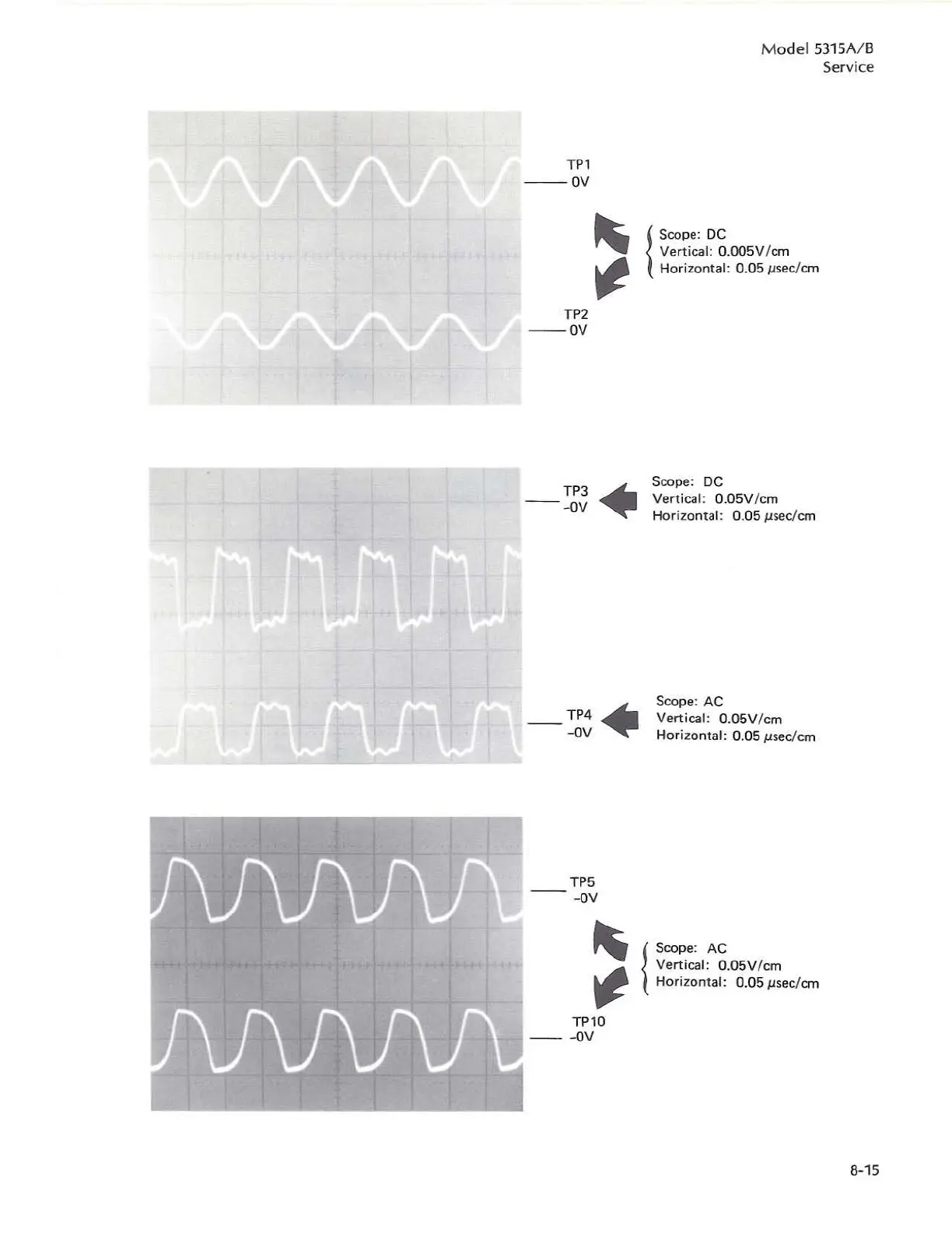

TPI
-
-
OV
TP2
-
-OV
TP3
---fJV
TP4
-fJV
TP
5
---OV
TP1Q
-fJV
Model
5315A
/
B
Service
{
Scope:
DC
Vertical
:
O.OO5V
/
cm
Horizontal:
0.
0
5/J.sec
/
cm
$oope:
DC
Vertica
l:
Q.OSV
/
cm
Horizontal
:
0.05
fJ.sec
/
cm
Scope
:
AC
Vertical:
O.05V
/
cm
Horizontal:
0.05
psec
/
cm
{
Scope:
AC
Vertica
l:
O.05V
/
em
Horizontal:
0
.05
/J.sec
/
cm
8-15
86
88
Table of Contents
Table of Contents
3
General Information
9
Models 5315A and 5315B Universal Counters
9
Introduction
10
Description
10
Options
10
Specifications
10
Safety Considerations
13
Instrument Identification
13
Accessories
13
Recommended Test Equipment
13
Installation
14
Introduction
14
Unpacking and Inspection
14
Preparation for Use
14
Power Requirements
14
Line Voltage Se Lection
14
Power Cable
16
Operating Environment
16
Storage and Shipment
17
Environment
17
Packaging
17
Field Installation of Options
18
Operation
19
Introduction
19
Operating Characteristics
19
Power-Up Self Check
19
Modes of Operation
19
Eq a
20
Pera
20
Ave
20
Average Dead Time
20
Delay
21
Abyb
21
Tot Stop/Start
22
Eck
22
Display Check
22
Totalize Modes
22
Panel Feat Ures and Controls
23
Function Selection Controls
23
Signal Cond Itioni Ng Contro Ls
23
5315A/ B Front End Block
24
Trigger Level/Sensitivity Controls
25
Display
25
O Perator's Check
25
O Perati Ng Instructions
26
M Easu Rement Procedures
26
Frequ Ency, Period, and Ratio M Easurements
26
AC Coupled Measurements
26
Time Interval Measurements
27
Error Messages
28
Operator's Maintenance
28
Front Panel Features
29
Operator's Check
33
Frequency A/Period a Measurements
34
Performance Tests
41
Introduction
41
Equipment Required
41
Test Record
41
Factory Selected Components
48
Adjustment Locations
48
Adjustment Procedures
49
Power Supply Adjustme Nt
49
Input Offset Adjustments
51
Local O Scillator Adjustme Nts
51
Option 001 Oscillator Adjustment
51
Option 002 Battery Charger Adjustment
52
Rechargeable Battery
54
Replaceabl Eparts
55
Introduction
55
Abbreviations
55
Replaceable Parts List
55
Ordering Information
55
Parts Pro Visioning
56
Model 5315A Mechanical Parts Layout
68
Manual Changes
72
Introduction
72
Service
73
Introduction
73
Theory of Operatio
73
Troubleshooting
73
Recommended Test Equipment
73
Reference Designations
73
Safety Considerations
74
Service Aids
76
Pozidriv Screwdrivers
76
Assembly Identification
76
Theory of Operatio
76
Introduction
76
Overall Block Diagram
77
Overall Block Theory
78
Assembly Circuit Theory
78
A1 Motherboard
78
A2 Display Assemby
80
A3 Input Assembly
80
Battery-Pack
81
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the HP 5315 A and is the answer not in the manual?
Ask a question
HP 5315 A Specifications
General
Brand
HP
Model
5315 A
Category
Cash Counter
Language
English
Related product manuals
HP 5315 B
103 pages
HP 53131A
254 pages
HP 53132A
254 pages
HP 53181A
254 pages
HP 53131A/132A 225 MHz
330 pages
HP 5328A
68 pages
HP 5335A
76 pages
HP 5334B
242 pages
HP 5340A
279 pages
HP 5384A
168 pages
HP 5385A
168 pages
HP 5245L
270 pages
