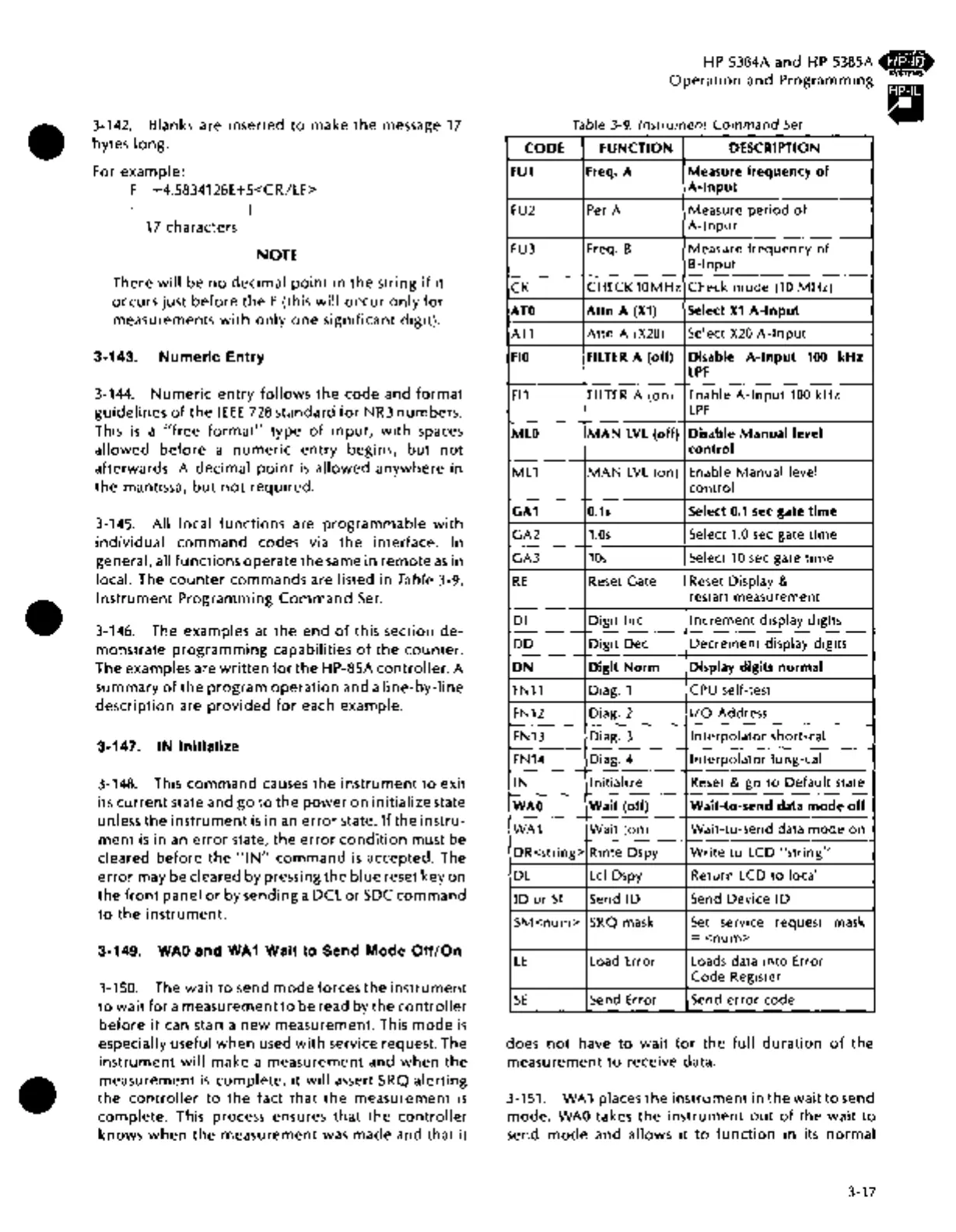

3-142. Blanks are inserted to make the message 17
bytes
long.
For example:
F +4.5834126E+5<CR/LF>
I I
17 characters
NOTE
There will be no decimal point in the string if it
occurs just before the E (this will occur only for
measurements with only one significant digit).
3-143. Numeric Entry
3-144. Numeric entry follows the code and format
guidelines of the IEEE 728 standard for NR3 numbers.
This
is a "free format" type of input, with spaces
allowed before a numeric entry begins, but not
afterwards. A decimal point is allowed anywhere in
the mantissa, but not required.
3-145. All local functions are programmable with
individual command codes via the interface. In
general, all
functions operate the same in remote as in
local. The counter commands are listed in Table 3-9,
Instrument Programming Command Set.
3-146. The examples at the end of this section de-
monstrate programming capabilities of the counter.
The examples are written for the HP-85A controller. A
summary
of the program operation and aline-by-line
description are provided for each example.
3-147. IN Initialize
3-148. This command causes the instrument to exit
its
current state and go to the power on initialize state
unless the instrument is in an error state. If the instru-
ment is in an error state, the error condition must be
cleared before the "IN" command is accepted. The
error may be cleared by pressing the blue reset key on
the front panel or by sending a DCL or SDC command
to the instrument.
3-149. WAO and WA1 Wait to Send Mode Off/On
3-150. The wait to send mode forces the instrument
to wait for a measurement to be read by the controller
before it can start a new measurement. This mode is
especially useful when used with service request. The
instrument will make a measurement and when the
measurement is complete, it will assert SRQ alerting
the controller to the fact that the measurement is
complete. This process ensures that the controller
knows when the measurement was made and that it
HP 5384A and HP 5385A
Operation and Programming
Table 3-9. Instrument Command Set
CODE
FUNCTION
DESCRIPTION
FUl Freq. A
Measure frequency of
A-Input
FU2
Per A
Measure
period of
A-Input
FU3
Freq. B Measure frequency of
B-lnput
CK
CHECK10MHz Check mode (10 MHz)
ATO
Attn A (Xl) Select Xl A-Input
AT1 Attn A (X20)
Select X20 A-Input
FlO
FILTER A (off)
Disable
A-Input 100 kHz
LPF
Fl1 FILTER A (on)
Enable
A-Input 100 kHz
LPF
MLO
MAN LVL (off) Disable Manual level
control
Ml1
MAN LVL (on) Enable Manual level
control
GAl O.ls Select 0.1 sec gate time
GA2
1.0s Select 1.0 sec gate time
GA3 10s
Select 10 sec gate time
RE
Reset Gate Reset Display &
restart measurement
Dl
Digit Inc
Increment display digits
DD
Digit Dec Decrement display digits
ON Digit Norm
Display digits normal
FN11 Diag. 1
CPU self-test
FN12 Diag. 2
1/0 Address
FN13 Diag. 3
Interpolator short-cal
FN14 Diag. 4
Interpolator long-cal
IN
Initialize
Reset &
go to Default state
WAO
Wait (off) Wait-to-send data mode off
WA1 Wait (on) Wait-to-send data mode on
DR<string> Rmte Dspy
Write to LCD "string"
Dl Lei Dspy
Return
LCD to local ·
ID or Sl Send ID Send Device ID
SM<num> SRQ mask Set
service
request
mask
= <num>
LE Load Error loads data into Error
Code Register
SE
Send Error Send error code
does not have to wait for the full duration of the
measurement to receive data.
3-151.
WA1 places the instrument in the waittosend
mode. WAO takes the instrument out of the wait to
send mode and allows it to function in its normal
3-17
