HP 5384A Service Manual

HP 5384A and HP 5385A
Adjustments
HP 5384A
HP 8656A
SIGNAL GENERATOR
FREQUENCY COUNTER
5-4
INPUT B
RF
OUTPUT
BNC CABLE

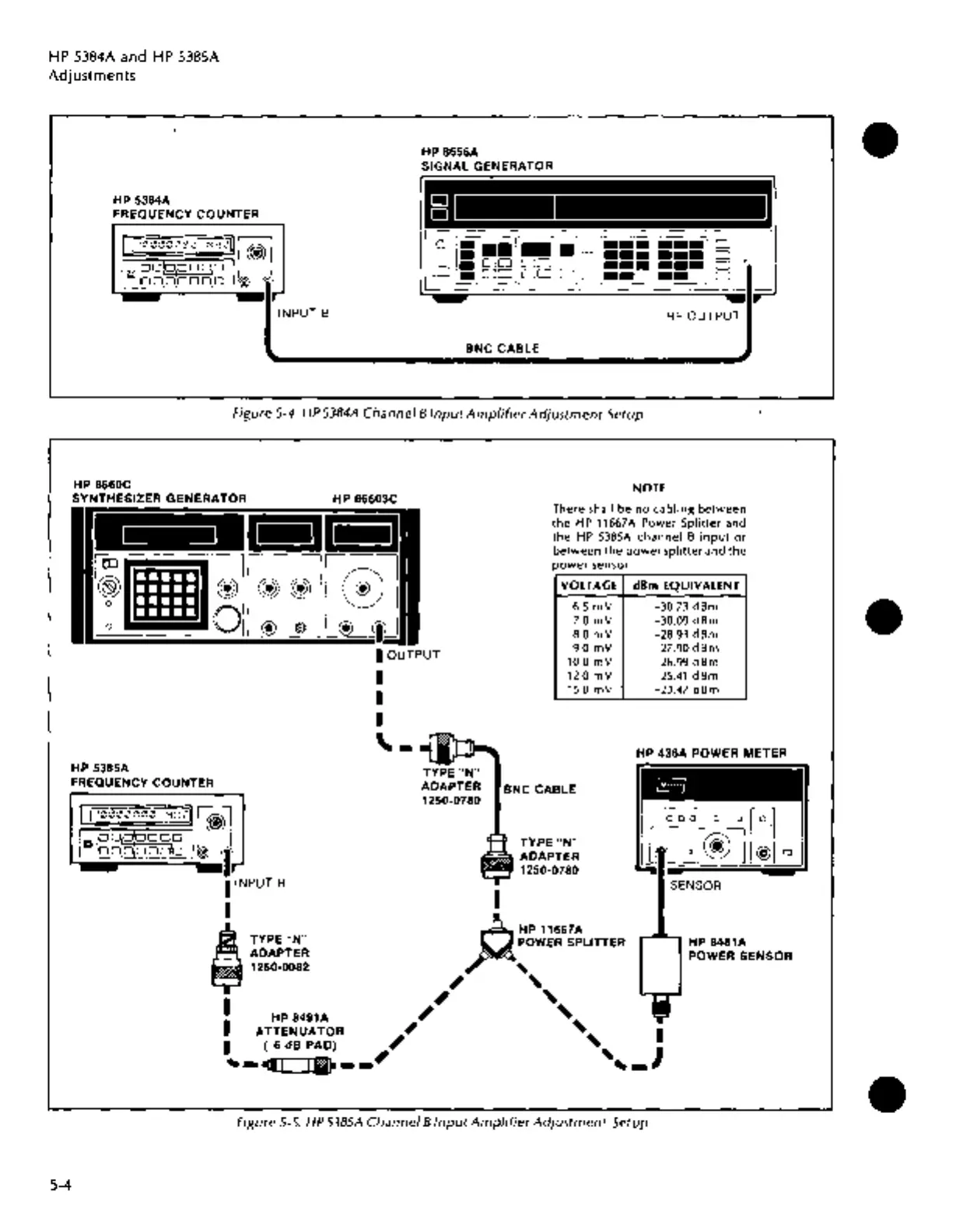

Figure 5-4. HP 5384A Channel B Input Amplifier Adjustment Setup
HP 8660C
NOTE
SYNTHESIZER GENERATOR
HP 86603C
HP 5385A
FREQUENCY
COUNTER
I OUTPUT
I
I
I
\._
TYPE "N"
There shall be no cabling between
the HP 11667A Power Splitter and
the HP 5385A channel B input or
between the power splitter and the
power sensor.
VOLTAGE
dBm EQUIVALENT
6.5 mV -30.73 dBm
7.0 mV -30.09 dBm
8.0 mV
-28.93 dBm
9.0 mV -27.90 dBm
10.0 mV
-26.99 dBm
12.0 mV
-25.41 dBm
15.0 mV
-23.47 dBm
ADAPTER BNC CABLE
1250-0780
I
TYPE"N"
ADAPTER
1250-0780
p.
HP 11667A
TYPE
"N" 'POWER SPLITTER
ADAPTER
1250-0082
HP 8481A
POWER SENSOR
, '
I
, '
HP 8491A , '
I ATTENUATOR ~' ', I
I (-6 dB PAD) , ~ ' I
~-41 11&-- .. _,
Figure 5-5. HP 5385A Channel B Input Amplifier Adjustment Setup
•
•
•
