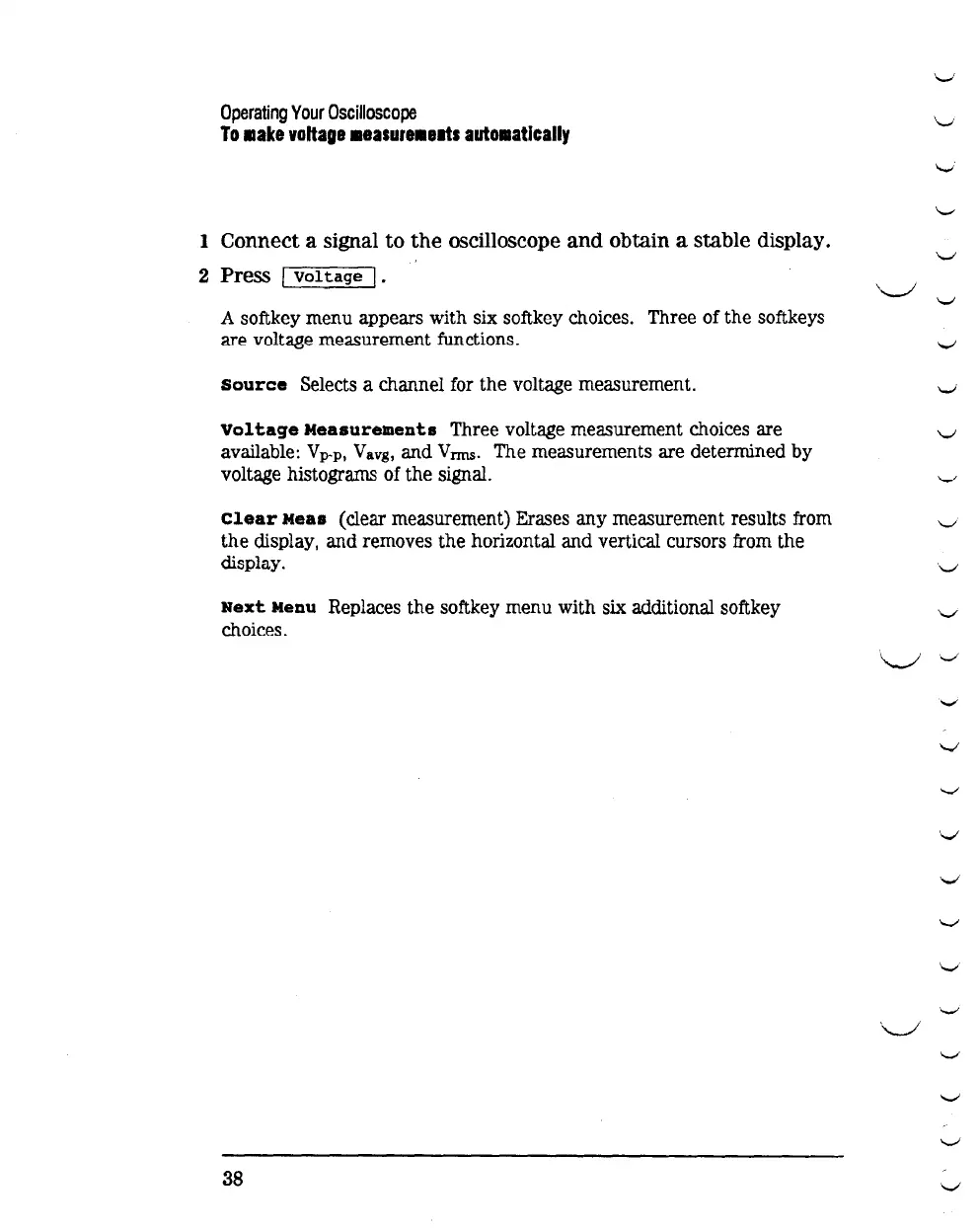

HP 54600A - Page 38

Operating Your Oscilloscope
To •ake voHage •easureaelts auto•atlcally
1 Connect a signal to the oscilloscope and obtain a stable display.
2 Press I Vol taqe I .
A softkey menu appears with six softkey choices. Three of the softkeys
are voltage measurement functions.
source Selects a channel for the voltage measurement.
Voltage Measurements Three voltage measurement choices are
available:
Vp-p, Vavg, and Vnns. The measurements are determined by
voltage histograms of the signal.
Clear Meas (clear measurement) Erases any measurement results from
the display, and removes the horizontal and vertical cursors from the
display.
Rext Menu Replaces the softkey menu with six additional softkey
choices.
38
