Figure 13
-
Operating Your Oscilloscope
To 11ako voltage •oasuro11olltt auto11atlcally
3 Press the Vrms softkey.
The oscilloscope automatically measures the rms voltage and displays
the result on the display.
The oscilloscope makes automatic measurements on the first pulse or
period
in the display. Figure 13 shows how to use delayed sweep to
isolate a pulse
for an rms measurement.
+-O,QOe 200~
:f1 RUN

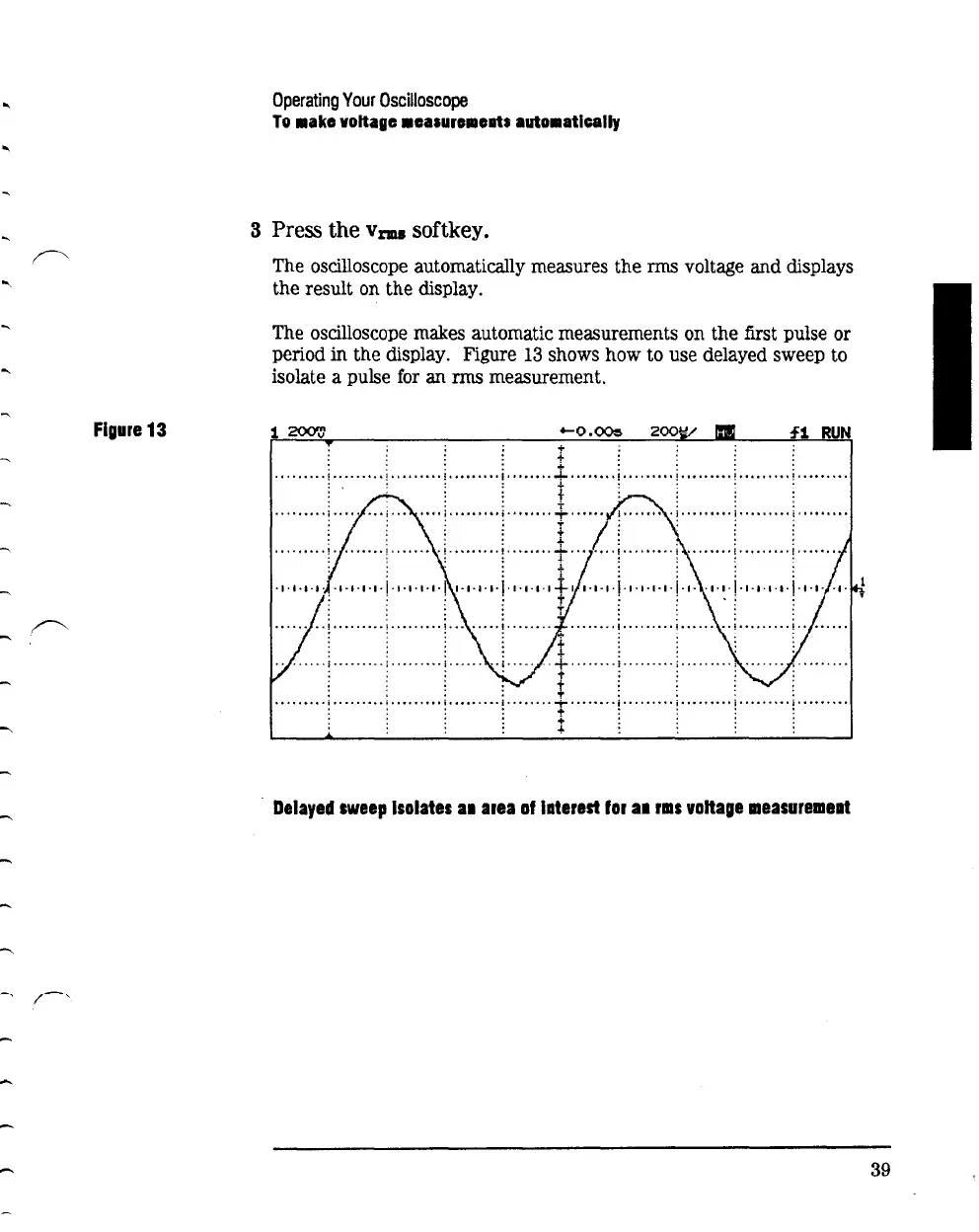

Delayed sweep Isolates a1 area of laterest for a1 rms voHage measuremeat
