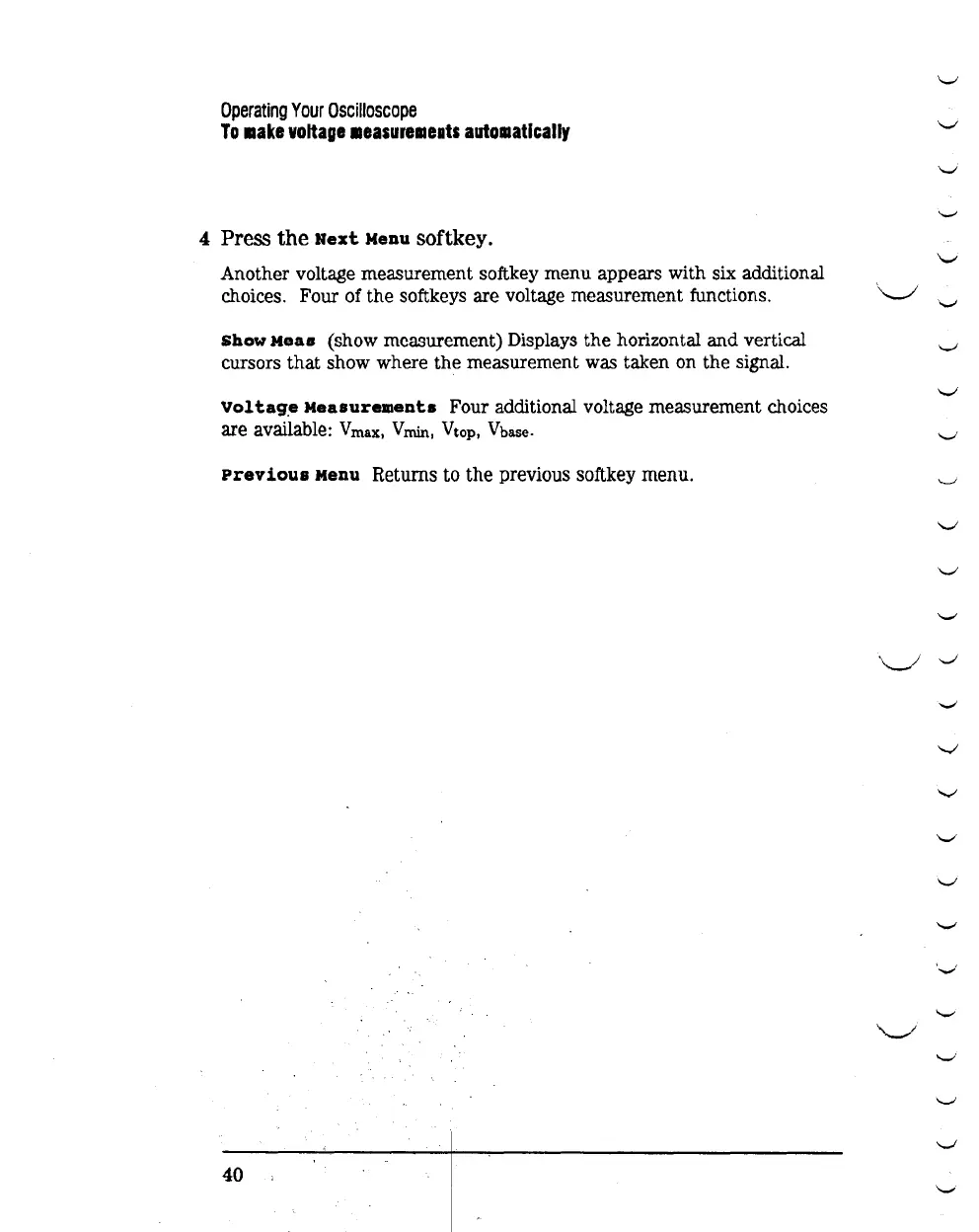

HP 54600A - Page 40

Operating Your Oscilloscope
To •ake voHage •easuremeats automatically
4 Press the Next Menu softkey.
Another voltage measurement softkey menu appears with six additional
choices. Four of the softkeys are voltage measurement functions.
Show Meas (show measurement) Displays the horizontal and vertical
cursors that show where the measurement was taken on the signal.
Vol tag.e Measurements Four additional voltage measurement choices
are available: Vmax, Vmm, Vtop, Vbase.
Previous Menu Returns to the previous softkey menu.
40
