HP
Series
6000
Hardware Installation Manual
hdchass

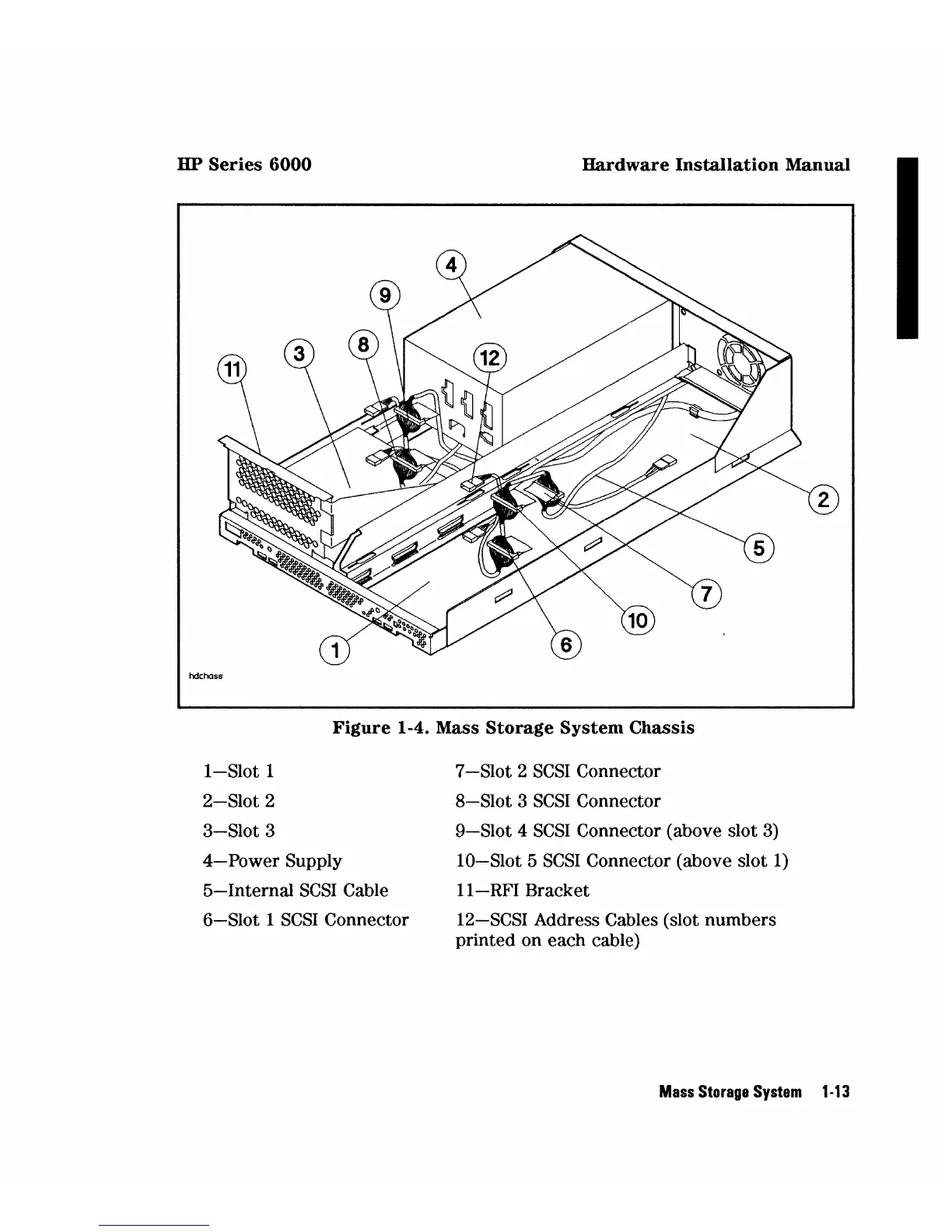

Figure 1-4. Mass Storage
System
Chassis
I-Slot
1
2-Slot
2
3-Slot
3
4-
Power Supply
5-
Internal
SCSI
Cable
6-Slot
1
SCSI
Connector
7
-Slot
2
SCSI
Connector
8-Slot
3
SCSI
Connector
9-Slot
4
SCSI
Connector (above slot
3)
10-Slot
5
SCSI
Connector (above slot
1)
l1-RFI
Bracket
12-SCSI Address Cables (slot numbers
printed on each cable)
Mass
Storage
System
1·13
