Hardware Installation Manual
HP
Series
6000
D
D

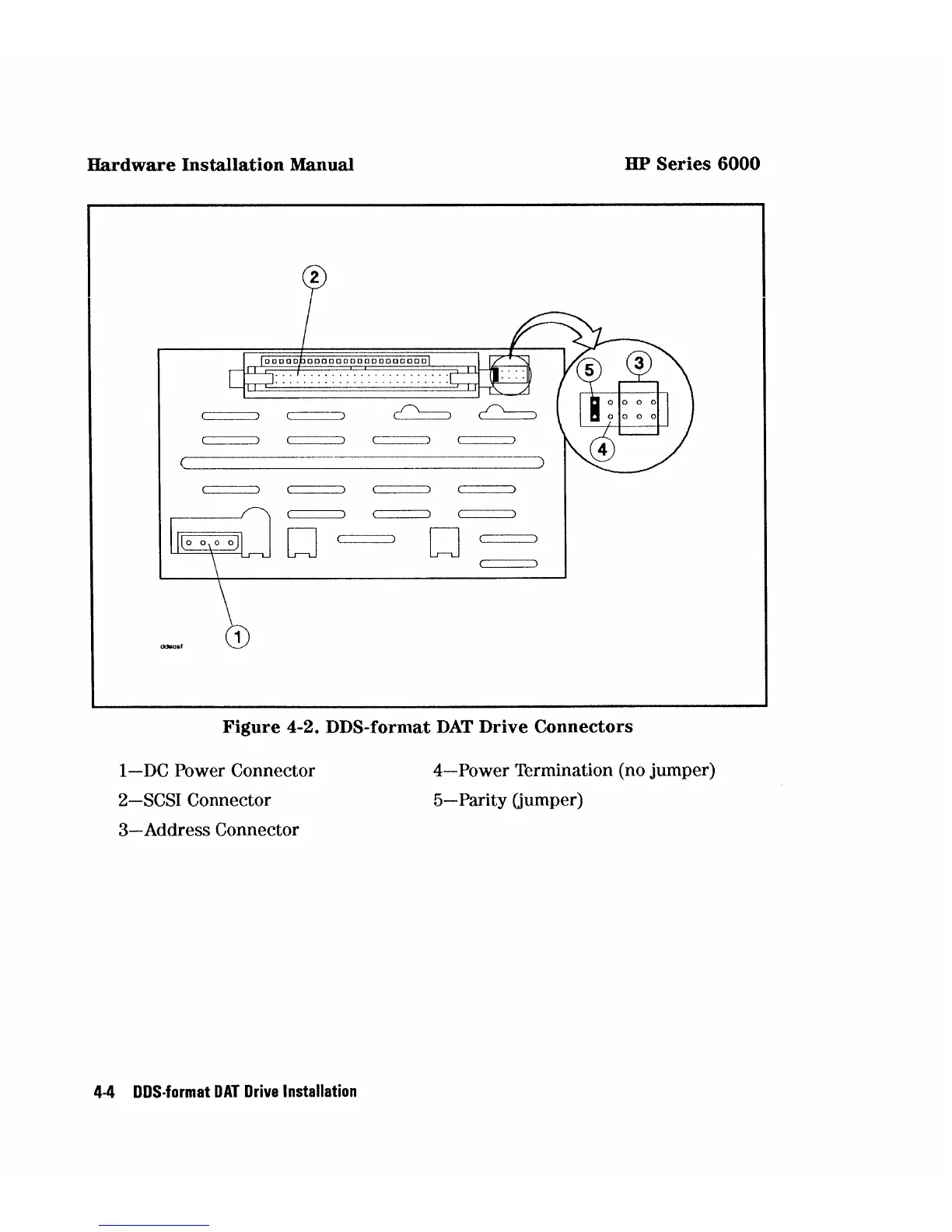

Figure 4-2. DDS-format
DAT
Drive Connectors
1-
DC
Power Connector
2-SCSI
Connector
3-
Address Connector
4·4
DDS·format
OAT
Drive
Installation
4-
Power Termination ( no jumper)
5-Parity
(jumper)
