HP 6000 SERIES - Sliding the Controller PCA into the PCA Guides (Top View)

HP Series 6000 Hardware Installation Manual

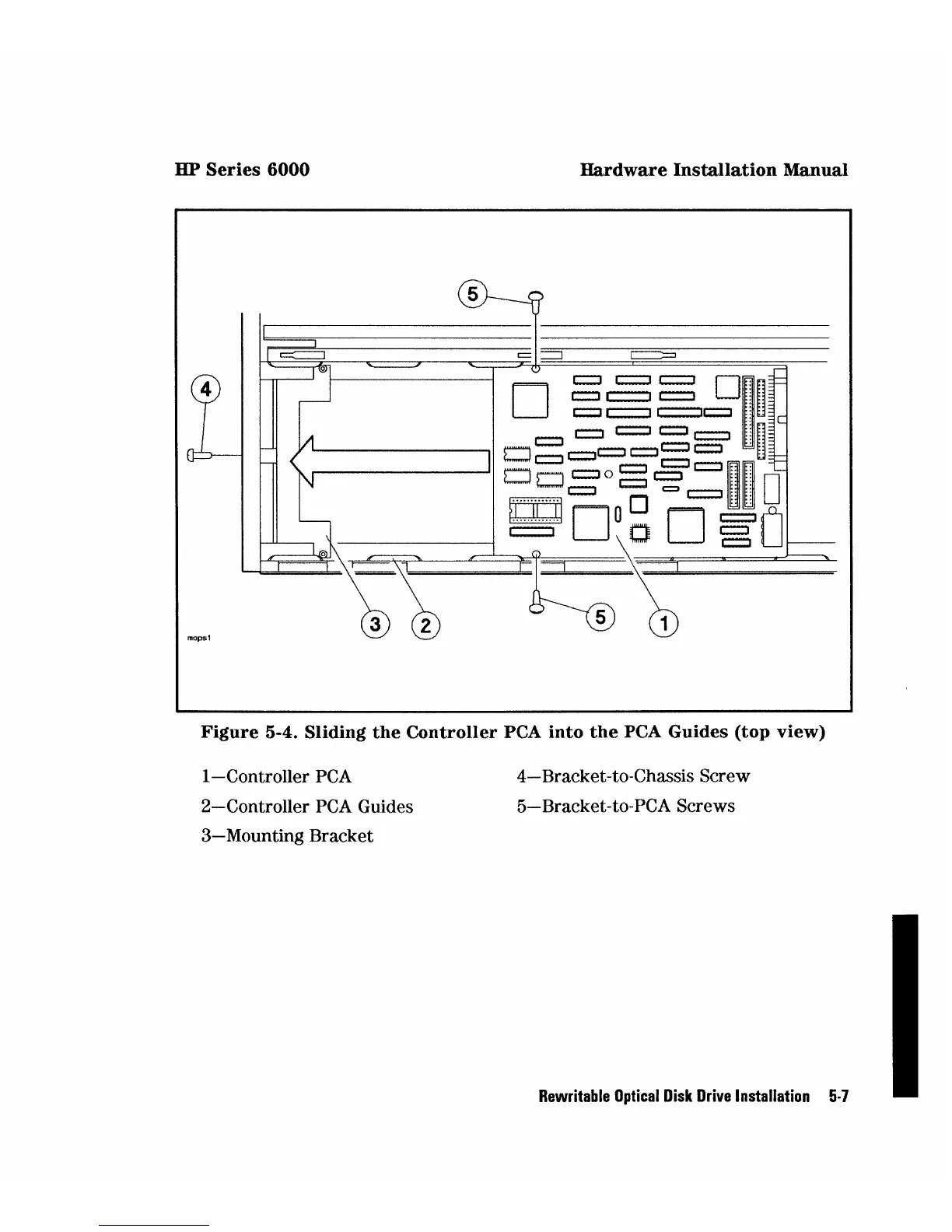

Figure 5-4. Sliding the Controller PCA into the PCA Guides (top view)
1-Controller PCA
2-Controller PCA Guides
3- Mounting Bracket
4- Bracket-to-Chassis Screw
5-Bracket-to-PCA Screws
Rewritable Optical Disk Drive Installation 5·7
