Hardware Installation Manual
HP Series 6000
HOPCAS1

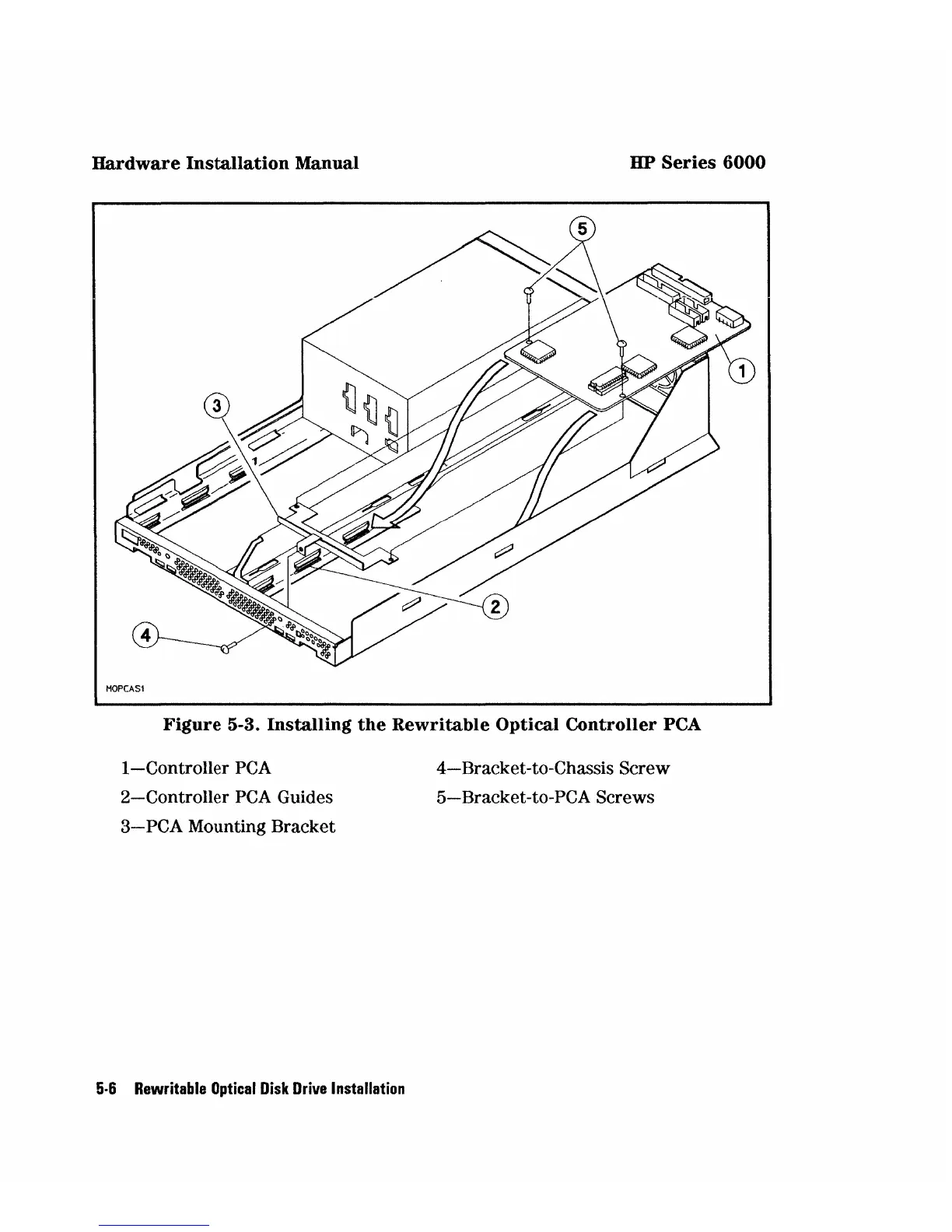

Figure 5-3. Installing the Rewritable Optical Controller peA
I-Controller PCA
2-Controller PCA Guides
3- PCA Mounting Bracket
5·6 Rewritable Optical Disk Drive Installation
4-Bracket-to-Chassis Screw
5-Bracket-to-PCA Screws
