HP 6000 SERIES

Hardware Installation Manual
HP Series 6000
4
®
3
®
subrose

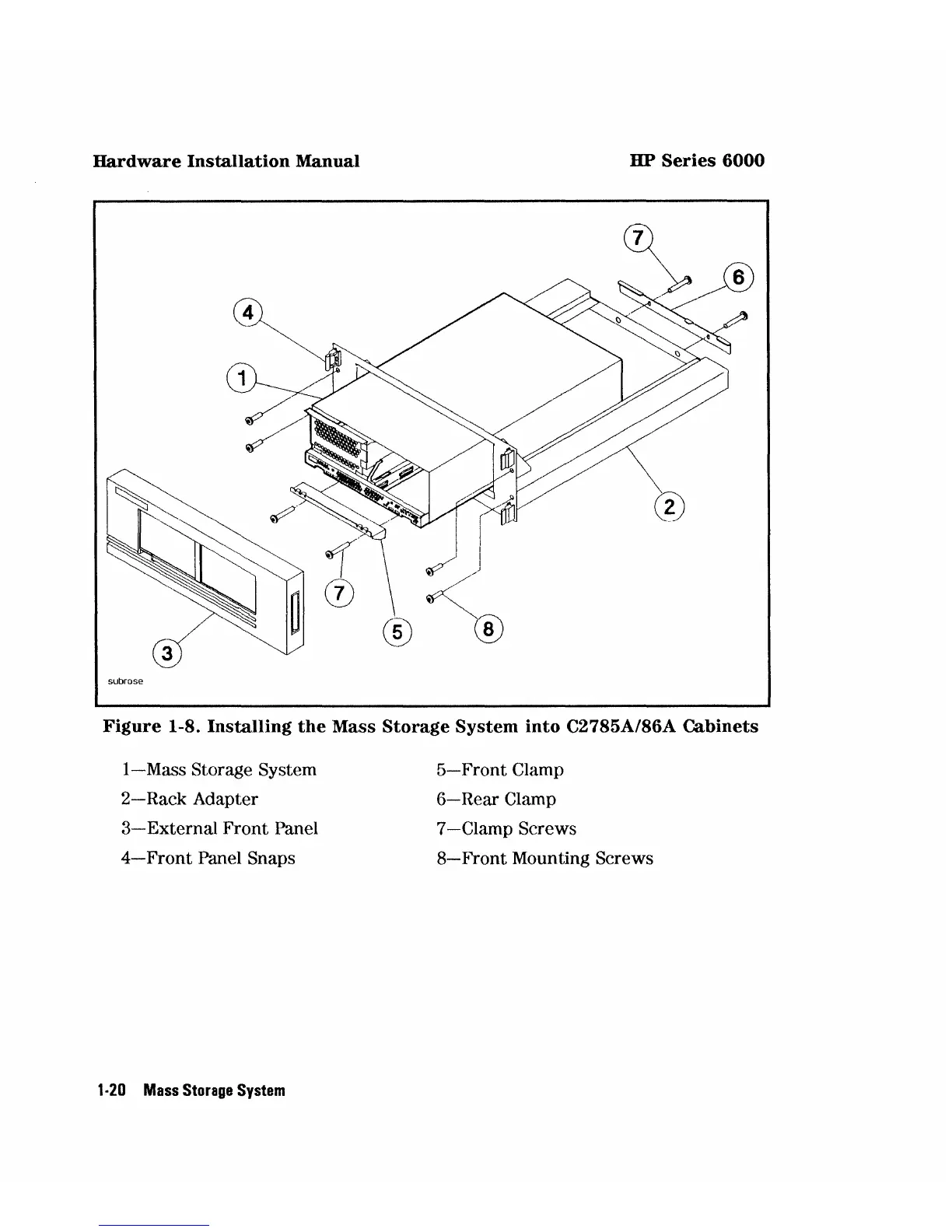

Figure 1-8. Installing the Mass Storage System into C2785A/86A Cabinets
1- Mass Storage System
2- Rack Adapter
3- External Front Panel
4- Front Panel Snaps
'·20 Mass Storage System
5-Front Clamp
6- Rear Clamp
7 -Clamp Screws
8- Front Mounting Screws
