HP Series 6000
Hardware Installation Manual

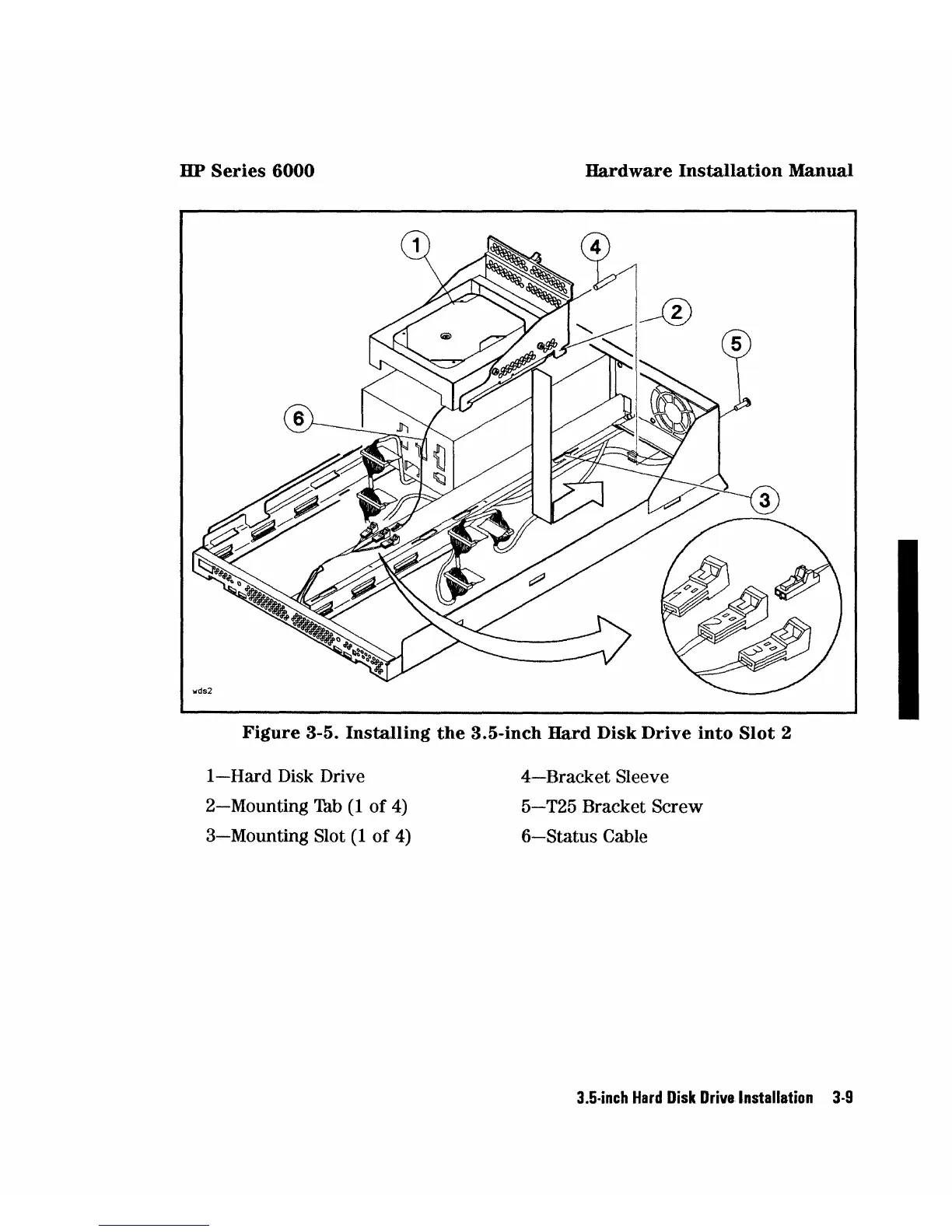

Figure 3-5. Installing the 3.5-inch Hard Disk Drive into Slot 2
1- Hard Disk Drive
2-Mounting Tab (1 of 4)
3- Mounting Slot (1 of 4)
4-Bracket Sleeve
5-T25 Bracket Screw
6-Status Cable
3.5·inch Hard Disk Drive Installation 3·9
