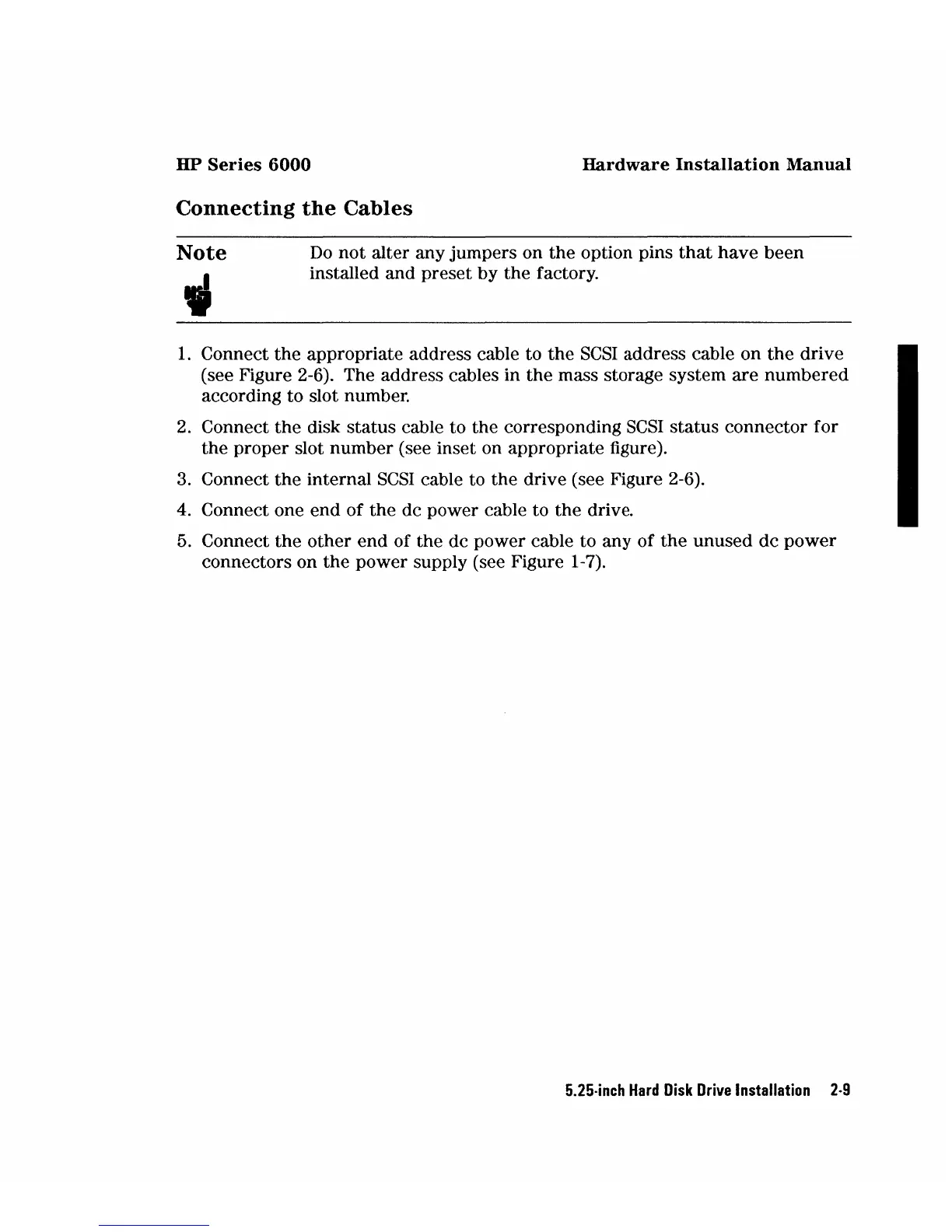

HP
Series
6000
Hardware
Installation
Manual
Connecting
the
Cables
Note
"
Do
not
alter any jumpers on
the
option pins
that
have
been
installed and preset by the factory.
1.
Connect
the
appropriate address cable to
the
SCSI
address cable on
the
drive
(see Figure 2-6). The address cables in
the
mass storage system
are
numbered
according to slot number.
2.
Connect
the
disk status cable to the corresponding
SCSI
status connector for
the
proper slot number (see inset on appropriate figure).
3. Connect
the
internal
SCSI
cable to the drive (see Figure 2-6).
4. Connect one end
of
the
dc power cable to
the
drive.
5. Connect
the
other end of
the
dc power cable to any of
the
unused dc
power
connectors on
the
power supply (see Figure
1-7).
5.25·inch
Hard
Disk
Drive
Installation
2·9
