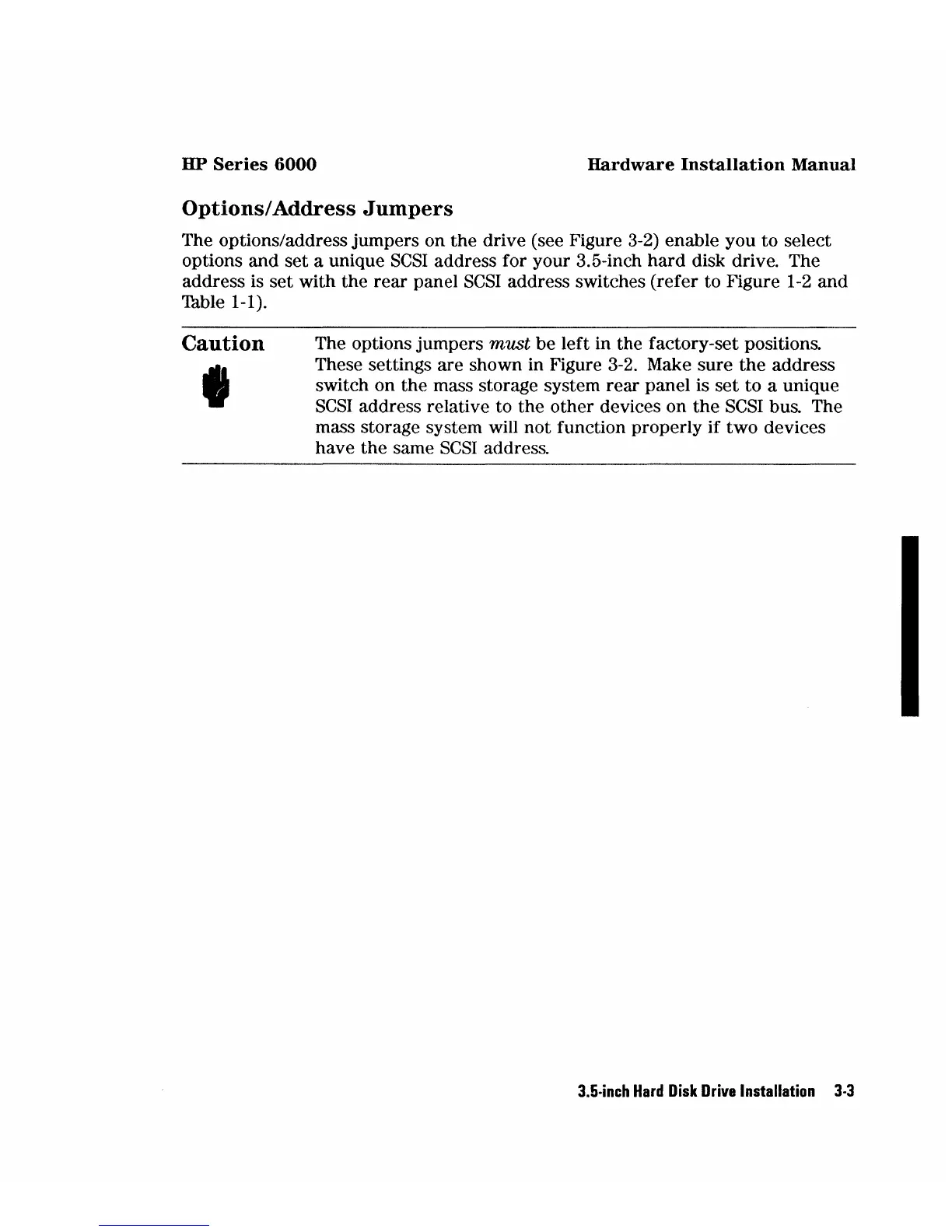

HP Series 6000 Hardware Installation Manual
Options/Address Jumpers
The options/address jumpers on the drive (see Figure 3-2) enable you to select
options
and set a unique SCSI address for your 3.5-inch hard disk drive. The
address is set with the
rear panel SCSI address switches (refer to Figure 1-2 and
Table 1-1).
Caution
,
The options jumpers must be left in the factory-set positions.
These settings are shown in Figure 3-2. Make sure
the address
switch on the mass storage system
rear panel is set to a unique
SCSI address relative to the other devices on the SCSI bus. The
mass storage system will not function properly if two devices
have the same
SCSI address.
3.S·inch Hard Disk Drive Installation 3·3
