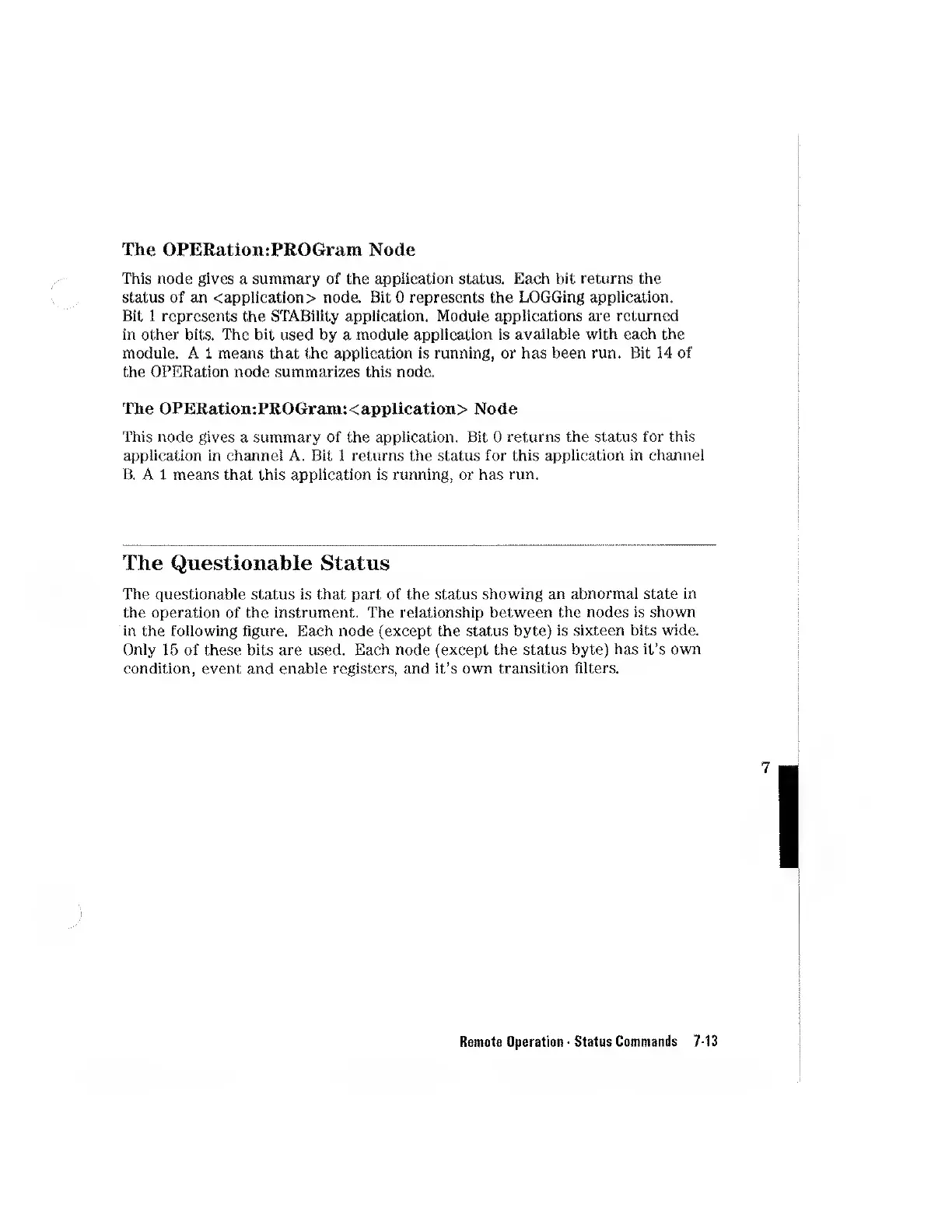

The OPERation:PROGraiii Node
This node gives a summary of the application status. Each bit returns the
status of an <application> node. Bit 0 represents the LOGGing application.
Bit 1 represents the STABility application. Module applications are returned
in other bits. The bit used by a module application is available with each the
module. A 1 means that the application is running, or has been run. Bit 14 of
the OPERation node summarizes this node.
The OPERation:PROGraiii:<application> Node
This node gives a summary of the application. Bit 0 returns the status for this
application in channel A. Bit 1 returns the status for this application in channel
B. A 1 means that this application is running, or has run.
The Questionable Status
The questionable status is that part of the status showing an abnormal state in
the operation of the instrument. The relationship between the nodes is shown
in the following figure. Each node (except the status byte) is sixteen bits wide.
Only 15 of these bits are used. Each node (except the status byte) has it’s own
condition, event and enable registers, and it’s own transition filters.
Remote Operation • Status Commands 7-13
