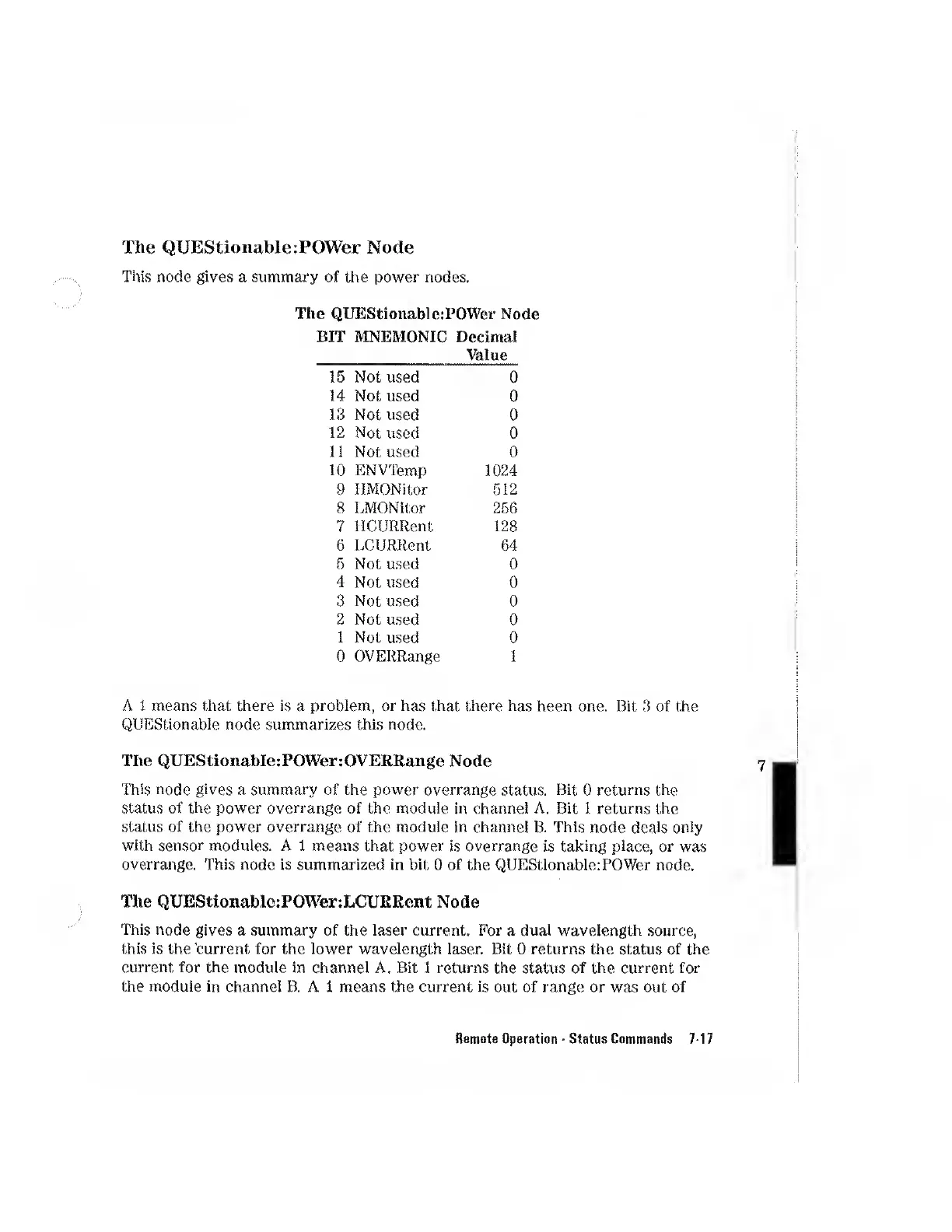

The QUEStionable:POWer Node
This node gives a summary of the power nodes.
The QUEStlonable:POWer Node
BIT
MNEMONIC Decimal
Value
15 Not used
0
14 Not used
0
13
Not used 0
12
Not used
0
11
Not used 0
10 ENVTemp 1024
9
HMONitor 512
8 LMONitor 256
7 HCURRent 128
6 LCURRent 64
5
Not used 0
4
Not used 0
3 Not used 0
2
Not used 0
1
Not used 0
0 OVERRange
1
A 1 means that there is a problem, or has that there has been one. Bit 3 of the
QUEStionable node summarizes this node.
The QUEStionable:POWer:OVERKange Node
This node gives a summary of the power overrange status. Bit 0 returns the
status of the power overrange of the module in channel A. Bit 1 returns the
status of the power ovcrrange of the module in channel B. This node deals only
with sensor modules. A 1 means that power is overrangc is taking place, or was
overrange. This node is summarized in bit 0 of the QUEStionableiPOWer node.
The QUEStionable:POWer:LCURRent Node
This node gives a summary of the laser current. For a dual wavelength source,
this is the'current for the lower wavelength laser. Bit 0 returns the status of the
current for the module in channel A. Bit 1 returns the status of the current for
the module in channel B. A 1 means the current is out of range or was out of
Remote Operation - Status Commands 7-17
