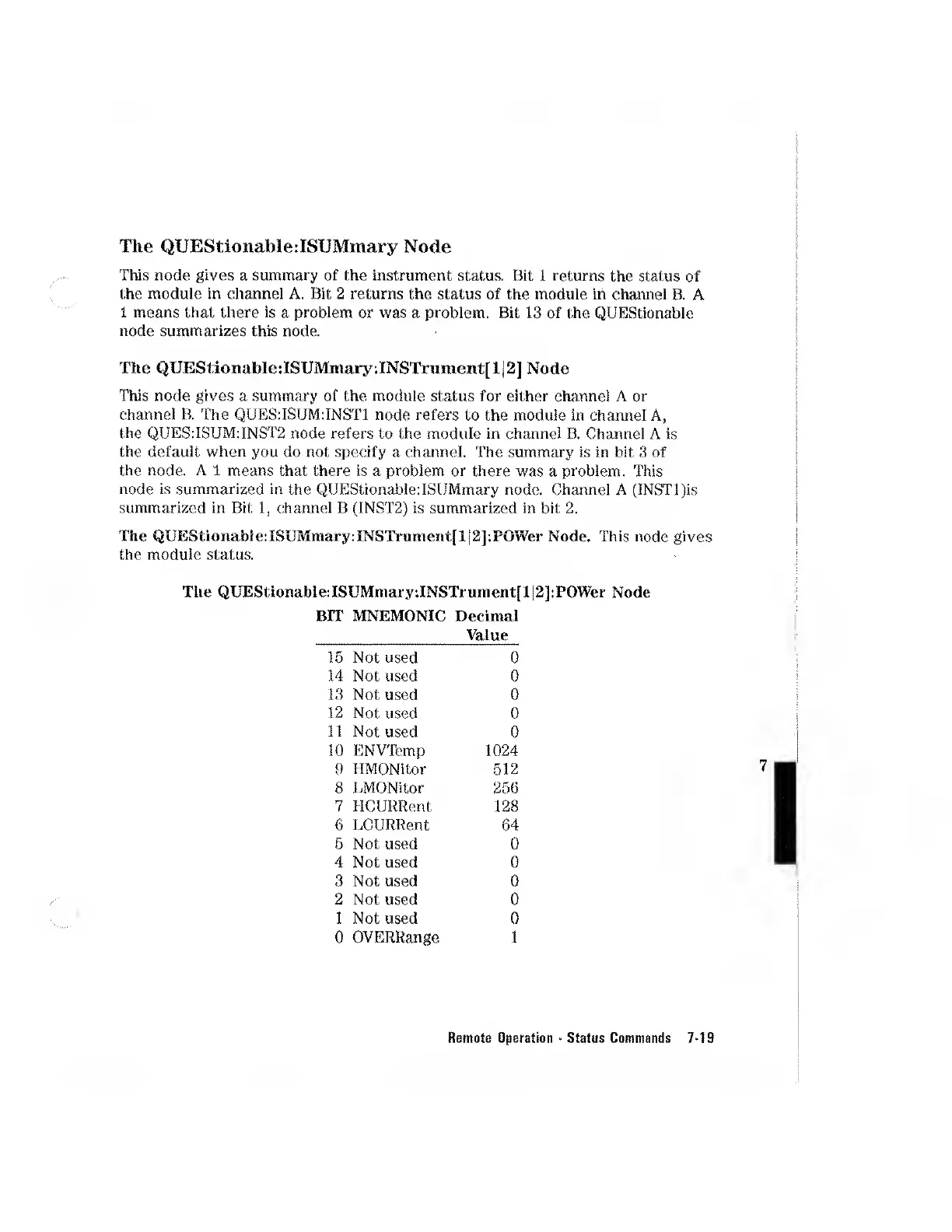

The QUEStionable:ISUMinary Node
This node gives a summary of the instrument status. Bit 1 returns the status of
the module in channel A. Bit 2 returns the status of the module in chaimel B. A
1 means that there is a problem or was a problem. Bit 13 of the QUEStionable
node summarizes this node.
The QUEStioniahle:ISUMmary:INSTrument[l|2] Node
This node gives a summary of the module status for either channel A or
channel B. The QUES:1SUM:INS1T node refers to the module in channel A,
the QUES:ISUM:rNST2 node refers to the module in channel B. Channel A is
the default when you do not specify a channel. The summary is in bit 3 of
the node. A 1 means that there is a problem or there was a problem. This
node is summarized in the QUEStionableTSUMmary node. Channel A (INSTl)is
summarized in Bit 1, channel B (INST2) is summarized in bit 2.
The QUEStioiiable:ISUMmary:INSTrument[lI2]:POWer Node. This node gives
the module status.
The QUEStionable:ISUMmary:INSTrument[l|2]:POWer Node
BIT
MNEMONIC Decimal
Value
15 Not used 0
14
Not used 0
13 Not used 0
12
Not used 0
11
Not used
0
10 ENVTcmp 1024
9 HMONitor 512
8 LMONitor 256
7 MCURRent 128
6
LCURRent
64
6 Not used 0
4
Not used 0
3 Not used 0
2
Not used 0
1
Not used 0
0 OVERRange
1
Remote Operation - Status Commands 7-19
