A Cables and Adapters
The HP-IB connector is compatible with the connectors on the following cables
and adapter.
■ HP-IB Cable, 10833A, 1 m (3.3 ft.)
■ HP-IB Cable, 10833B, 2 m (6.6 ft.)
■ HP-IB Cable, 10833C, 4 m (13.2 ft.)
■ HP-IB Cable, 10833D, 0.5 m (1.6 ft.)
■ HP-IB Adapter, i0834A, 2.3 cm. extender.
Connector

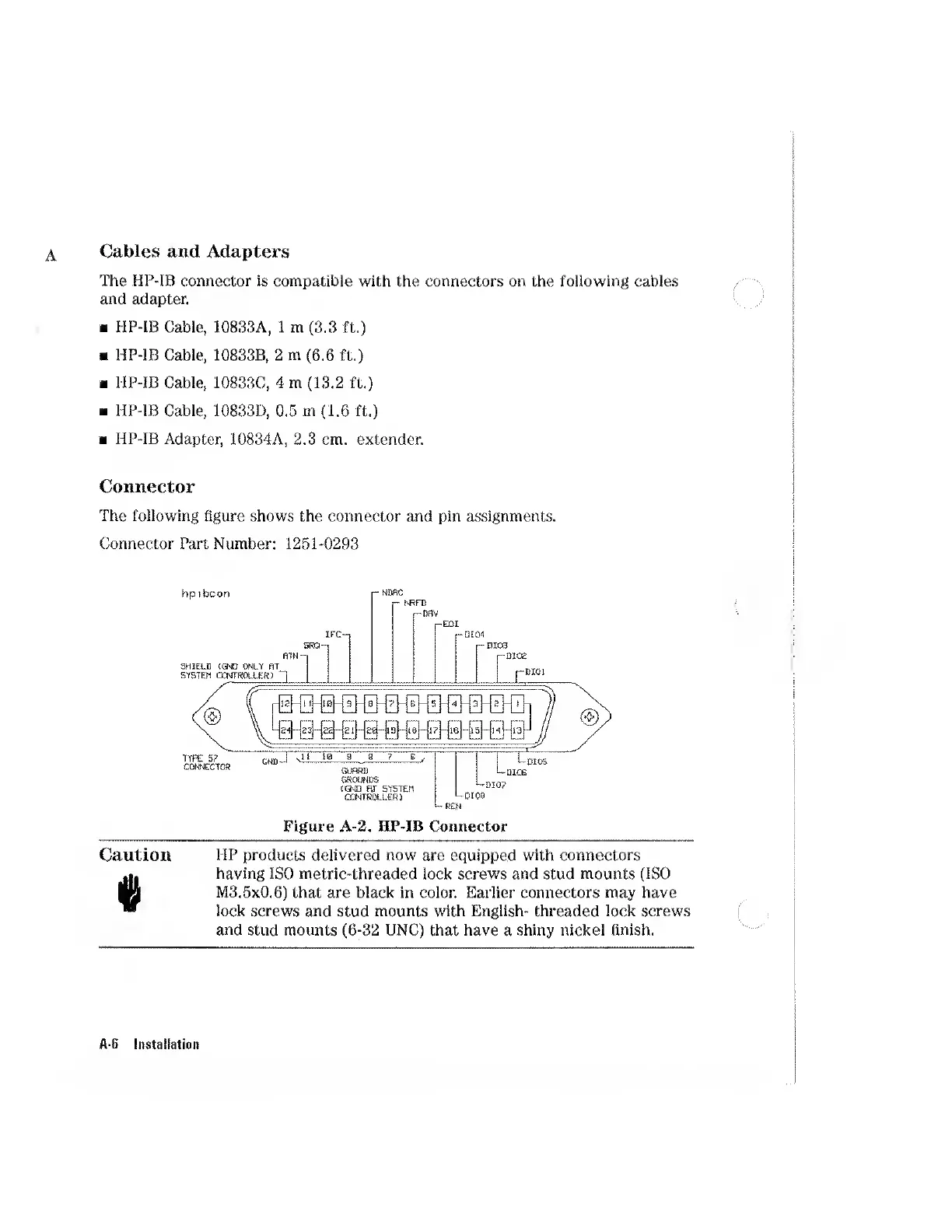

The following figure shows the connector and pin assignments.
Connector Part Number: 1251-0293
Caution
«
HP products delivered now are equipped with connectors
having ISO metric-threaded lock screws and stud mounts (ISO
M3.5x0.6) that are black in color. Earlier connectors may have
lock screws and stud mounts with English- threaded lock screws
and stud mounts (6-32 UNC) that have a shiny nickel finish.
A-6 Installation
