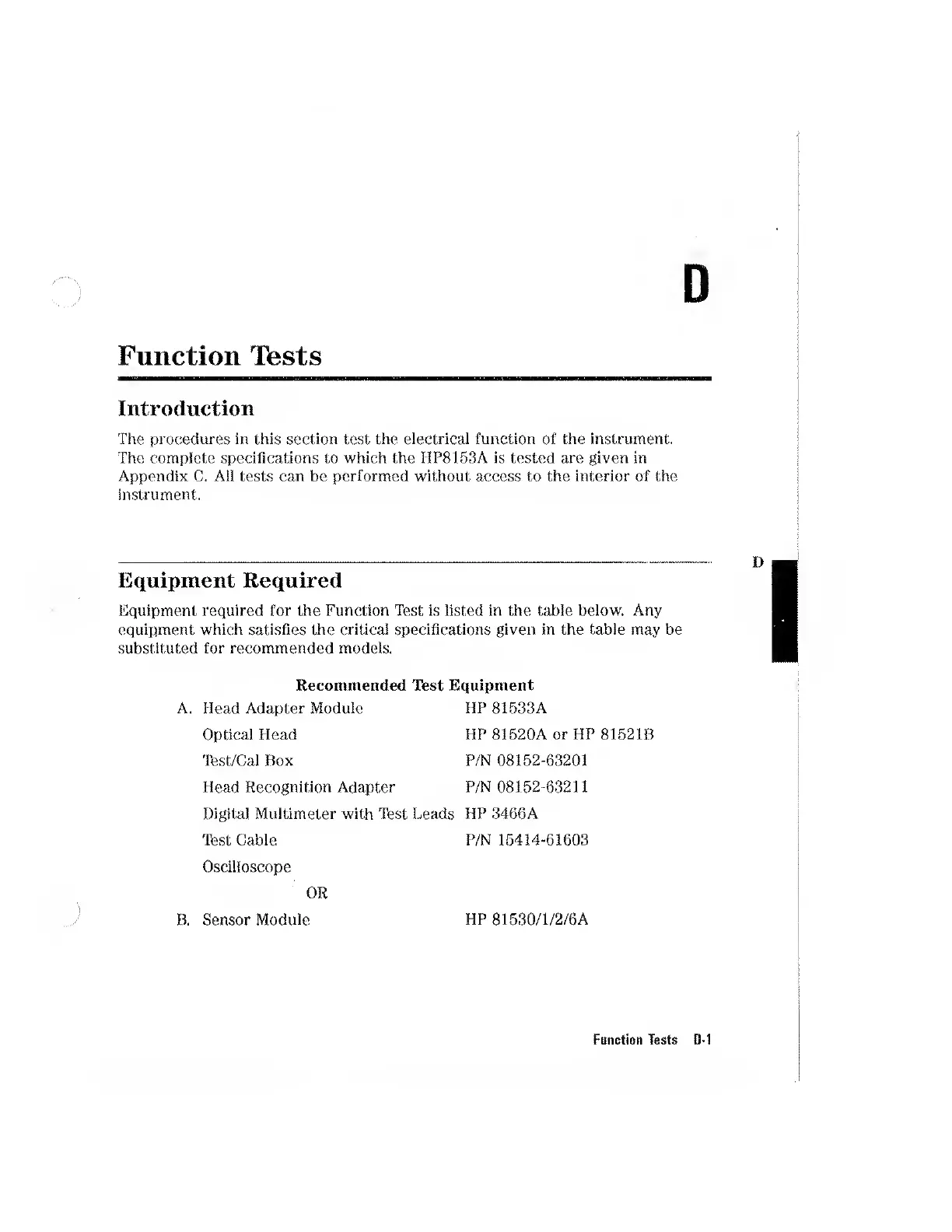

Function Tests
Introduction
The procedures in this section test the electrical function of the instrument.
The complete specifications to which the IIP8153A is tested are given in
Appendix C. All tests can be performed without access to the interior of the
instrument.
Equipment Required
Equipment required for the Function Test is listed in the table below. Any
equipment which satisfies the critical specifications given in the table may be
substituted for recommended models.
Recommended Test Equipment
A. Head Adapter Module HP 81533A
Optical Head HP 81520A or HP 81521B
Test/Cal Box P/N 08152-63201
Head Recognition Adapter P/N 08152-63211
Digital Multimeter with Test Leads HP 3466A
Test Cable P/N 15414-61603
Oscilloscope
OR
B. Sensor Module HP 81530/1/2/6A
Function Tests D-1
