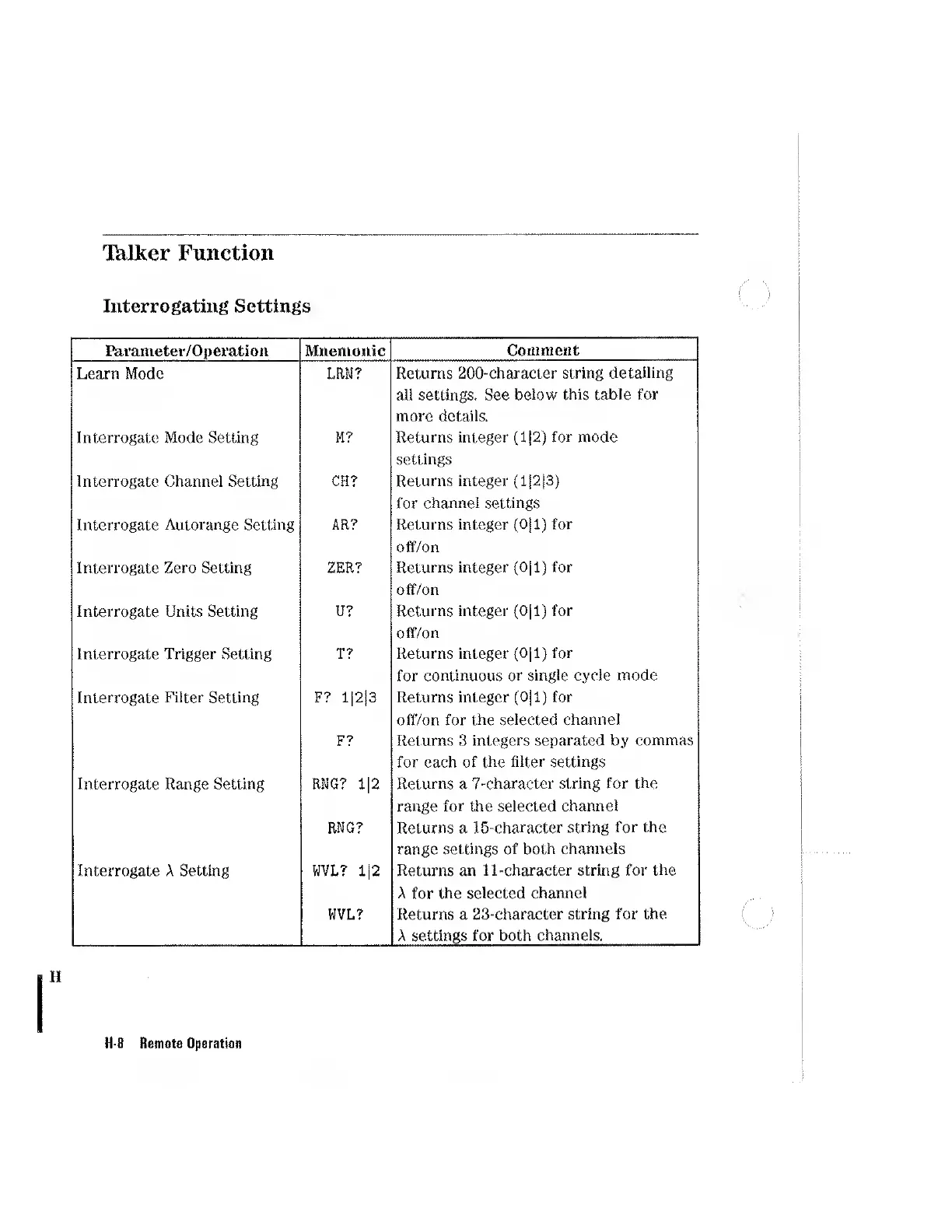

Iklker Function
Interrogating Settings
Parameter/Operation Mnemonic Coininent
Learn Mode IM7
Returns 200-character string detailing
all settings. See below this table for
more details.
Interrogate Mode Setting
M? Returns integer (1|2) for mode
settings
Interrogate Channel Setting CH?
Returns integer (IjZjS)
for channel settings
Interrogate Autorange Setting
AR? Returns integer (0|1) for
off/on
Interrogate Zero Setting
ZER?
Returns integer (Ojl) for
off/on
Interrogate Units Setting
U? Returns integer (Ojl) for
off/on
Interrogate Trigger Setting
T? Returns integer (Ojl)for
for continuous or single cycle mode
Interrogate Filter Setting F? I]2t3 Returns integer (0|1) for
off/on for the selected channel
F? Returns 3 integers separated by commas
for each of the filter settings
Interrogate Range Setting RMG? 1|2
Returns a 7-character string for the
range for the selected channel
RNG? Returns a 15-character string for the
range settings of both channels
Interrogate A Setting
WVL? 1|2
Returns an 11-character string for the
A for the selected channel
WVL? Returns a 23-character string for the
A settings for both channels.
H-8 Remote Operation
