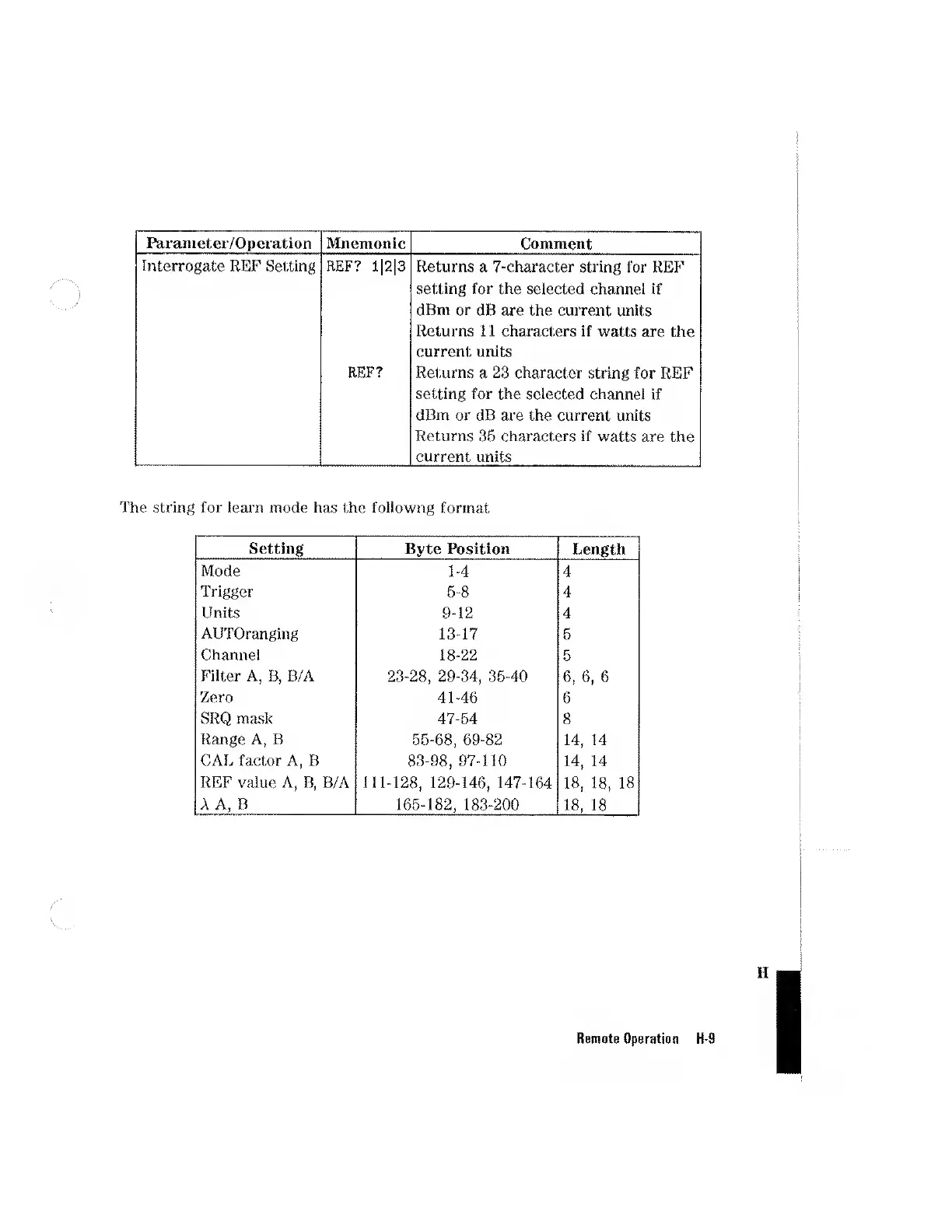

HP 8153A - Page 259

Par am et er/O p erat i o n
Mnemonic Comment
Interrogate REF Setting
REF? i]2[3
REF?
Returns a 7-character string for REF
setting for the selected channel if
dBm or dB are the current units
Returns 11 characters if watts are the
current units
Returns a 23 character string for REF
setting for the selected channel if
dBm or dB are the current units
Returns 35 characters if watts are the
current units
The string for learn mode has the followng format
Setting Byte Position
Length
Mode
lA 4
Trigger
5-8
4
Units 9-12 4
AUTOrangiiig
13-17 5
Channel 18-22
5
Filter A, B, B/A
23-28, 29-34, 36-40
6, 6, 6
Zero 41-46
6
SRQ mask
47-54 8
Range A, B
55-68, 69-82
14, 14
CAL factor A, B
83-98, 97-110 14, 14
REF value A, B, B/A
111-128, 129-146, 147-164 18, 18, 18
A A, B
165-182, 183-200
18, 18
Remote Operation H-9
