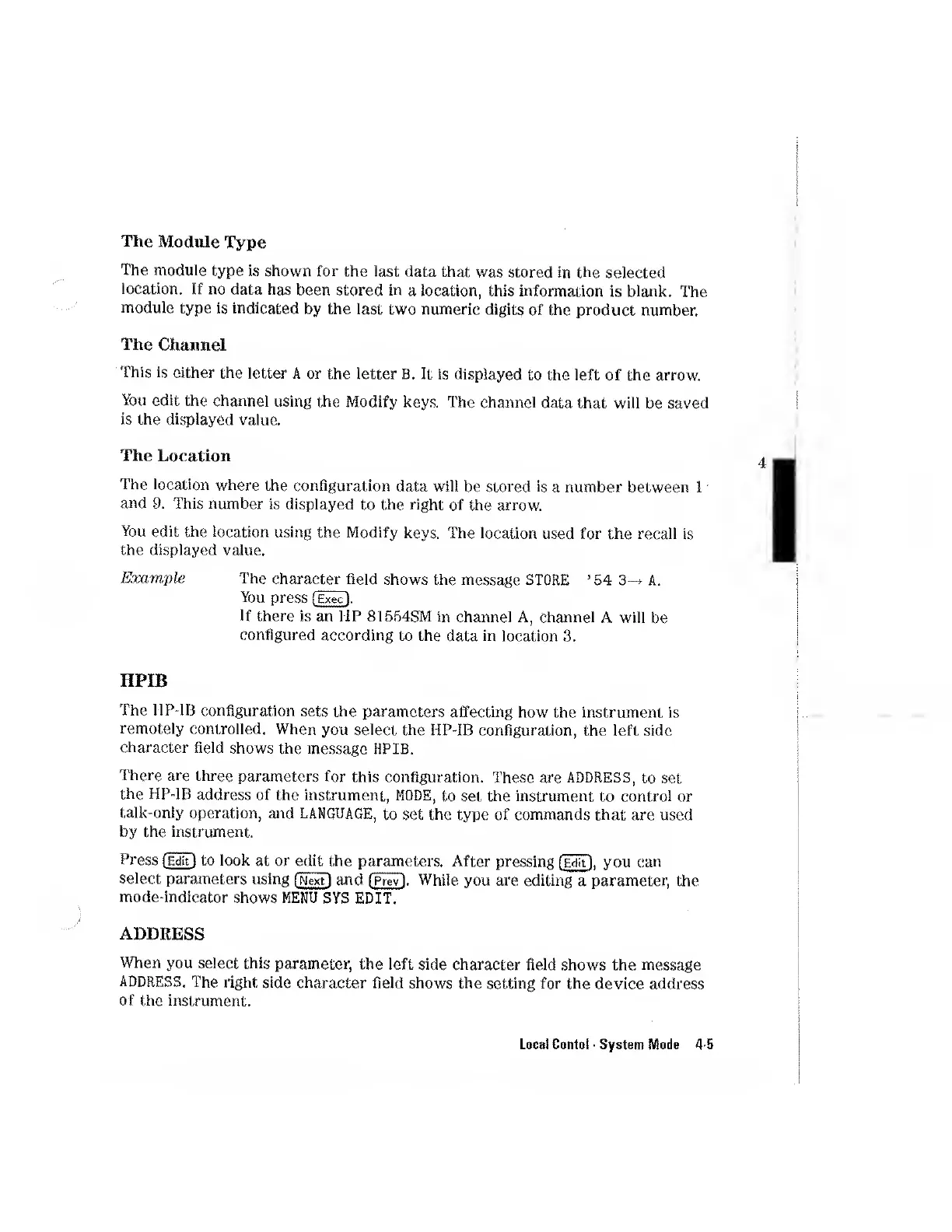

The Module Type
The module type is shown for the last data that was stored in the selected
location. If no data has been stored in a location, this information is blank. The
module type is indicated by the last two numeric digits of the product number.
The Channel
This is either the letter A or the letter B. It is displayed to the left of the arrow.
You edit the channel using the Modify keys. The channel data that will be saved
is the displayed value.
The Location
The location where the configuration data will be stored is a number between 1
and 9. This number is displayed to the right of the arrow.
You edit the location using the Modify keys. The location used for the recall is
the displayed value.
Exaw,pl£ The character field shows the message STORE '54 3^ A.
You press
If there is an HP 81554SM in channel A, channel A will be
configured according to the data in location 3.
HPIB
The HP-IB configuration sets the parameters affecting how the instrument is
remotely controlled. When you select the HP-IB configuration, the left side
character field shows the message HPIB.
There are three parameters for this configuration. These are ADDRESS, to set
the HP-IB address of the instrument, MODE, to set the instrument to control or
talk-only operation, and LANGUAGE, to set the type of commands that are used
by the instrument.
Press (Edit! to look at or edit t he p aram eters. After pressing (Editl , you can
select parameters using (Nextl and (Prevl . While you are editing a parameter, the
mode-indicator shows MENU SYS EDIT.
ADDRESS
When you select this parameter, the left side character field shows the message
ADDRESS. The right side character field shows the setting for the device address
of the instrument.
Local Contoi • System Mode 4-B
