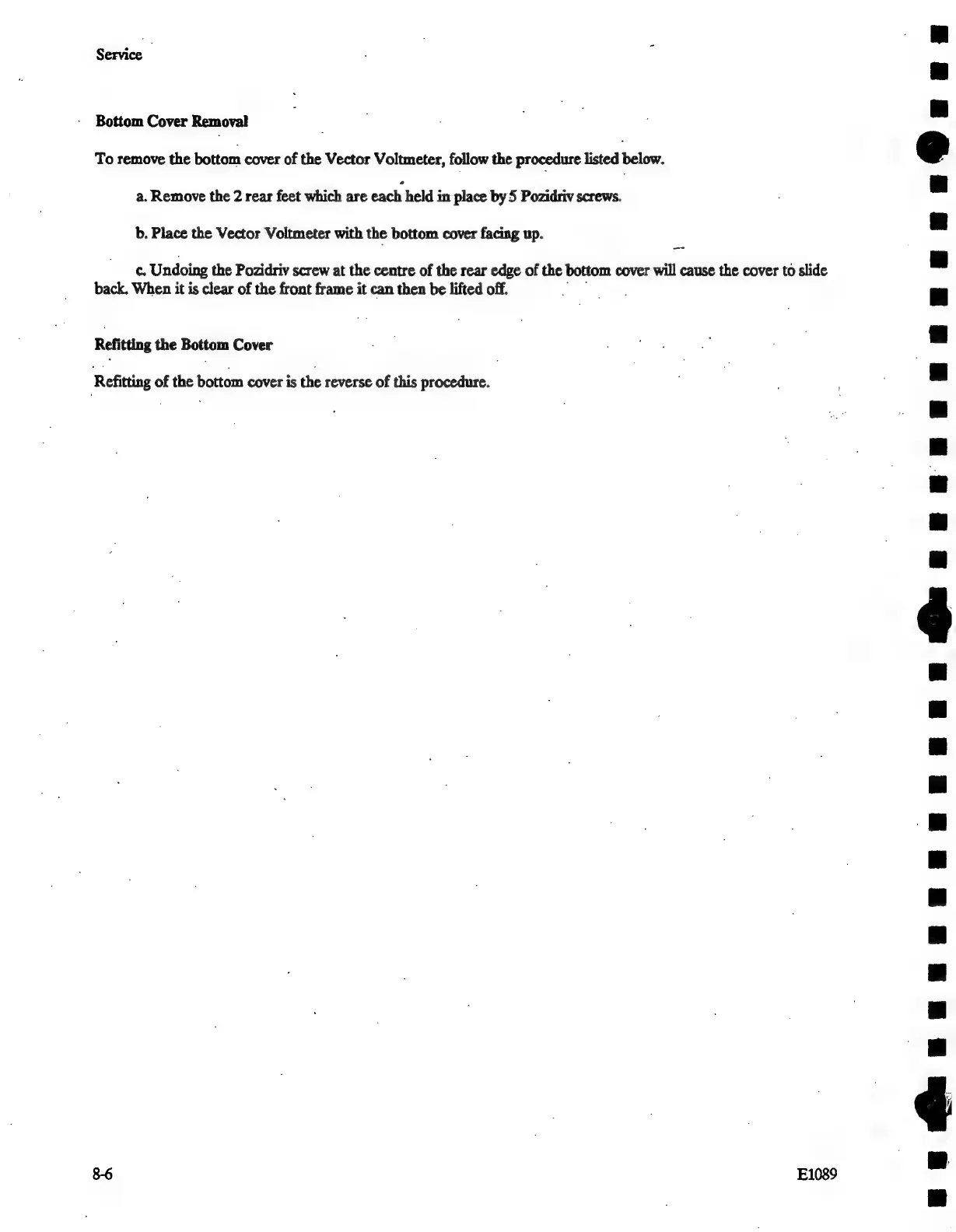

Service
Bottom Cover Removal
To remove the bottom cover of the Vector Voltmeter, follow the procedure listed belaw:
a. Remove the 2 rear feet which are each held in place by 5 Pozidriv screws.
b. Place the Vector Voltmeter with the bottom cover facing up.
c. Undoing the Pozidriv screw at the centre of the rear edge of the bottom cover will cause the cover to slide
back, When it is clear of the front frame it can then be lifted off. _ ,
Refitting the Bottom Cover
Refitting of the bottom cover is the reverse of this procedure.
8-6 E1089
