6-9
Reference
Printer Head Cleaning Procedure
5

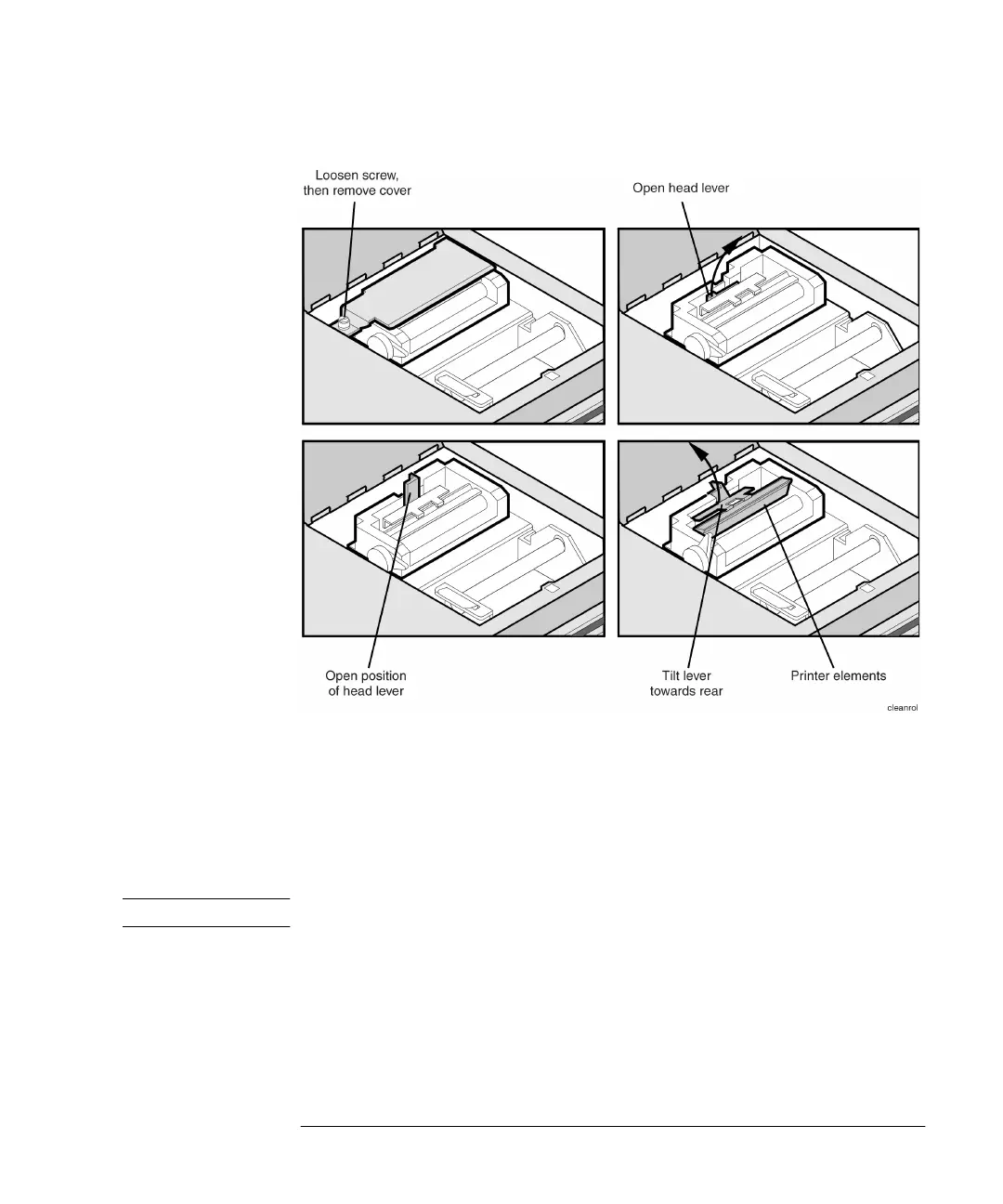

Unscrew the retaining screw that secures the sheet-metal cover that protects
the printer head from electrostatic discharge. Slide the sheet-metal cover
towards the retaining screw and then lift it straight up to remove.
6
Lift the printer head lever to the vertical position. Then, tilt the lever towards
the instrument’s rear panel to rotate the printer head up.
7
Clean the printer head using a cotton swab and isopropyl alcohol.
CAUTION
Use of other cleaning materials or fluids may damage the printer.
8
After the printer head has thoroughly dried, use the printer head lever to
return the printer head to its original position.
9
Replace and secure the sheet-metal cover for the printer head.
10
Replace the printer paper, and close the printer access door.
