HP 8753E Programming And Command Reference Guide
4
of 1
of 1 rating
192 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
How
to
Use
This
Guide

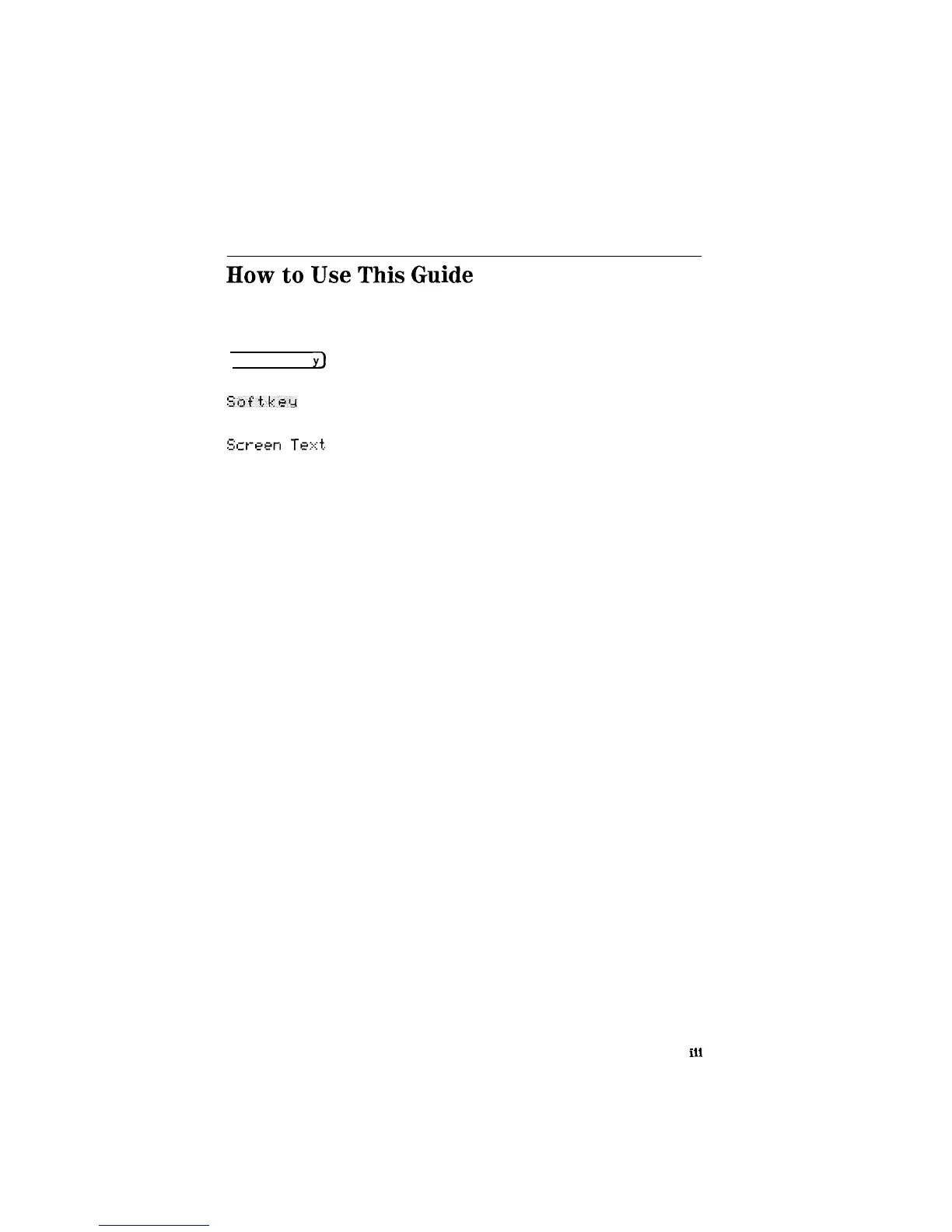

This guide uses the following conventions:
Front-Panel Ke
r)
This represents a key physically located on the
instrument.
This represents a “softkey,” a key whose label is
determined by the instrument’s firmware.
!;ct-epri
Tp:.;f.
This represents text displayed on the instrument’s
screen.
.
.
.
111
2
4
Table of Contents
Table of Contents
5
HP-IB Programming and Command Reference Guide
8
Where to Look for more Information
9
Preset Conditions
10
Analyzer Command Syntax
14
Code Naming Convention
14
Valid Characters
16
Units
16
Command Formats
17
General Structure
17
Syntax Types
18
Analyzer Operation
19
Held Commands
19
Operation Complete
19
Device Types
21
Listener
21
Controller
22
HP-IB Bus Structure
23
Data Bus
23
Handshake Lines
23
Control Lines
24
HP-IB Requirements
26
HP-IB Operational Capabilities
27
HP-IB Status Indicators
28
Bus Device Modes
28
System-Controller Mode
28
Lhlker/Listener Mode
30
Pass-Control Mode
30
Analyzer Bus Modes
30
Setting HP-B3 Addresses
32
Response to HP-IB Meta-Messages (IEEE-488 Universal Commands
32
Abort
32
Device Clear
32
Local
32
Local Lockout
33
Parallel Poll
33
Pass Control
33
Remote
33
Serialpoll
33
Trigger
33
Reading Analyzer Data
34
Command Query
34
Output Syntax
35
Marker Data
37
Array-Data Formats
40
Trace-Data Transfers
42
Stimulus-Related Values
43
Data-Processing Chain
44
Data Arrays
44
Fast Data Transfer Commands
46
Data Levels
47
Learn String and Calibration-Kit String
49
Error Reporting
50
Status Reporting
50
The Event-Status Register and Event-Status Register B
53
Error Output
54
Error Messages in Numerical Order
55
Calibration
61
Display Graphics
64
User Graphics Units
64
HP-GL Subset
64
Accepted but Ignored HP-GL Commands
66
Disk File Names
67
Key Select Codes Arranged by Front-Panel Hardkey
70
HP-IB Only Commands
100
Alphabetical Mnemonic Listing
110
Index
170
