8 Chapter 1
Installing Your Analyzer
STEP 3. Meet Electrical and Environmental Requirements

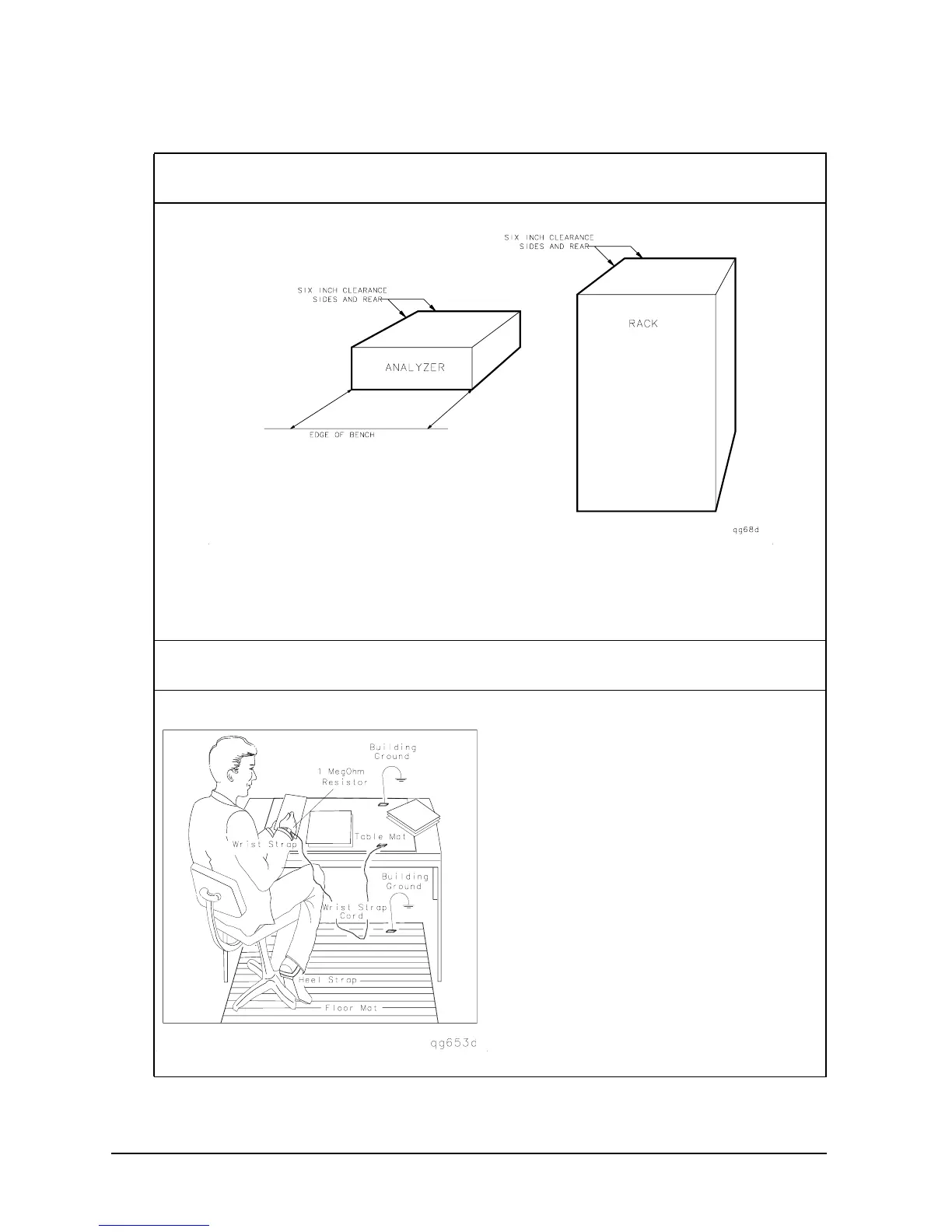

5. Ensure there are at least six inches of clearance between the sides and back of either the
stand-alone analyzer or the system cabinet.
CAUTION: The environmental temperature must be 4°C less than the maximum
operating temperature of the analyzer for every 100 watts dissipated in the cabinet. If the
total power dissipated in the cabinet is >800 watts, then you must provide forced
convection.
6. Set up a static-safe workstation. Electrostatic discharge (ESD) can damage or destroy
electronic components.
■ static-control table mat and earth
ground wire: HP P/N 9300-0797
■ wrist-strap cord: HP P/N 9300-0980
■ wrist-strap: HP P/N 9300-1367
■ heel-straps: HP P/N 9300-1308
■ floor mat: not available through
Hewlett-Packard
