Chapter 1 19
Installing Your Analyzer
STEP 4. Configure the Analyzer

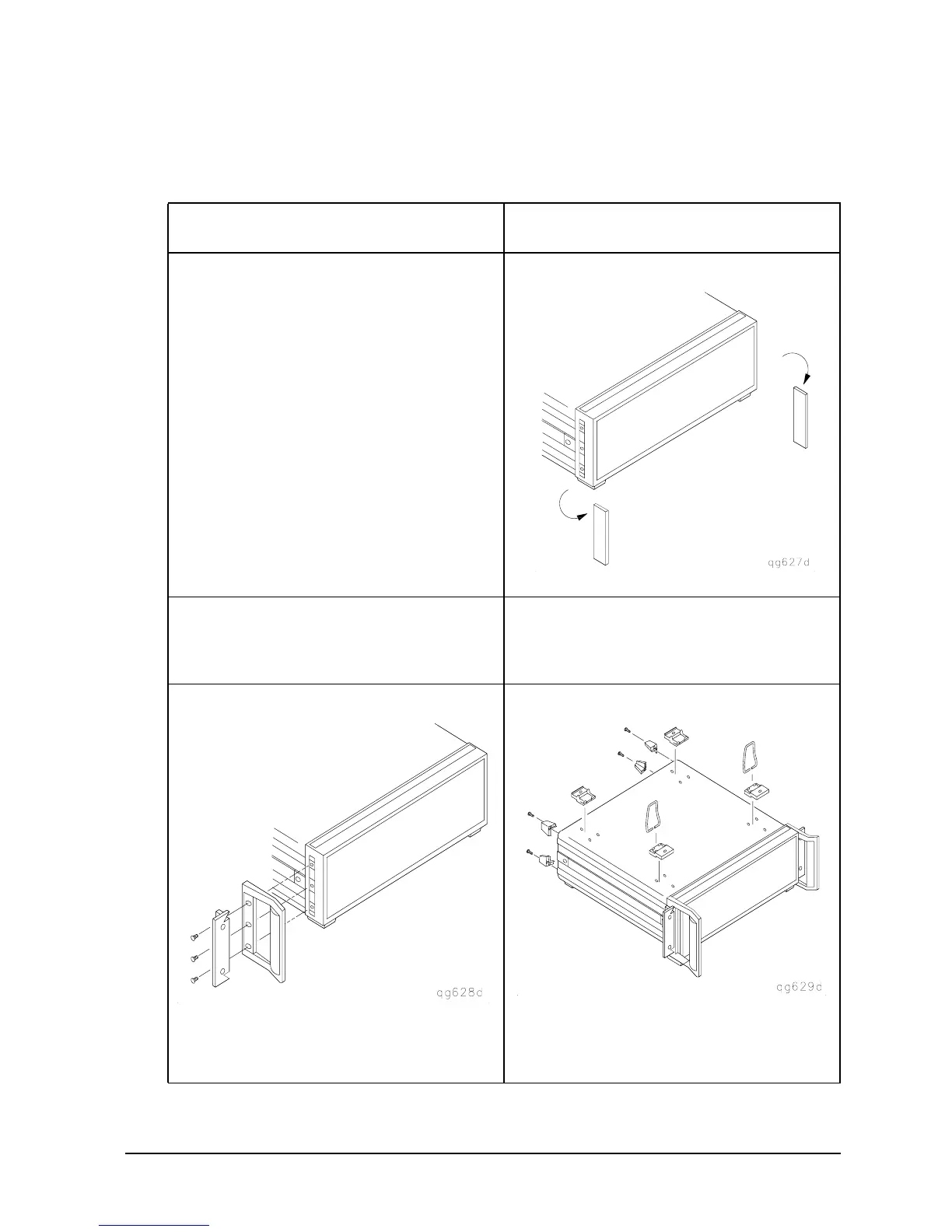

To Attach Cabinet Flanges and Front Handles to the Analyzer
(Option 1CP)
1. Ensure that the cabinet flange kit with
handles is complete.
2. Remove the side trim strips.
■ (2) cabinet mount flanges
■ (2) front handles
■ (8) screws
3. Attach the cabinet mount flanges and the
handles to the sides of the front panel, using
four screws per side. (Attach the flanges to
the outside of the handles.)
4. Remove the feet and the tilt stands before
cabinet mounting the instrument.
WARNING: If an instrument handle is
damaged, you should replace it
immediately.
